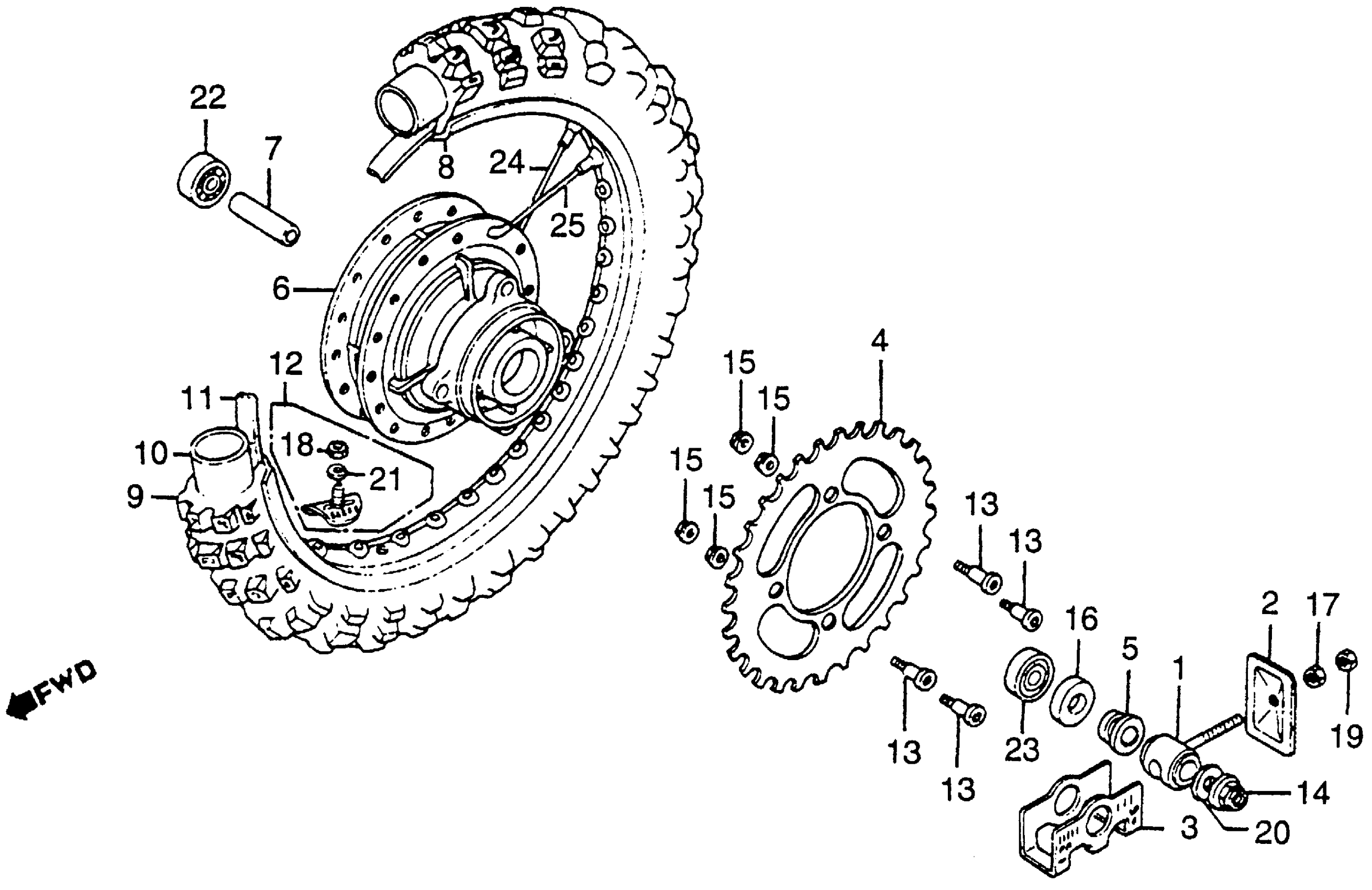

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN (NOT AVAILABLE) This part replaces 40543-GC4-730.

40543-GC4-731

Unavailable

1

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-GC4-731

Unavailable

2

RETAINER, CHAIN ADJUSTER This part replaces 40544-GC4-730.

40544-GM7-700

Unavailable

2

RETAINER, CHAIN ADJUSTER

40544-GM7-700

Unavailable

3

PLATE, CHAIN ADJUSTER (NOT AVAILABLE)

40545-GC4-730

Unavailable

4

SPROCKET, FINAL (49T) (NOT AVAILABLE)

41201-GC4-730

Unavailable

4

SPROCKET FINAL DR | (Optional). This part replaces 41201-GF5-750.

41201-GF5-505

Unavailable

4

SPROCKET, FINAL (51T) | (Optional). This part replaces 41202-GC4-730.

41202-GC4-810

Unavailable

4

SPROCKET, FINAL (51T) | (Optional).

41202-GC4-810

Unavailable

5

COLLAR, RR. WHEEL (NOT AVAILABLE)

42311-GC4-730

Unavailable

6

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-GC4-730ZA

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$14.76

8

RIM, RR. WHEEL (NOT AVAILABLE)

42701-GC4-701

Unavailable

9

TIRE, RR. (4.10S14) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 42711-GC4-611.

42711-GS2-671

Unavailable

9

TIRE, RR. (4.10S14) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 42711-GC4-741.

42711-GS2-671

Unavailable

9

TIRE, RR. (4.10S14) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 42711-GC4-841.

42711-GS2-671

Unavailable

9

TIRE, RR. (4.10S14) (4PR) (INOUE) (NOT AVAILABLE)

42711-GS2-671

Unavailable

10

TUBE, TIRE (4.10-14) (INOUE) This part replaces 42712-GC4-601.

42712-169-701

Unavailable

10

TUBE, TIRE (4.10-14) (INOUE) This part replaces 42712-GC4-671.

42712-169-701

Unavailable

10

TUBE, TIRE (4.10-14) (INOUE)

42712-169-701

Unavailable

11

FLAP, TIRE (14) (INOUE) (NOT AVAILABLE)

42713-GC4-671

Unavailable

12

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

13

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

14

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

15

NUT, HEX. (8MM)

90309-357-000

$3.40

16

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

16

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$5.05

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, PLAIN (12MM)

94101-12000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

23

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

24

SPOKE SET B (10X125.5)

97254-42091-L0

$3.21

25

SPOKE SET B (10X125.0)

97712-42090-L0

Unavailable
