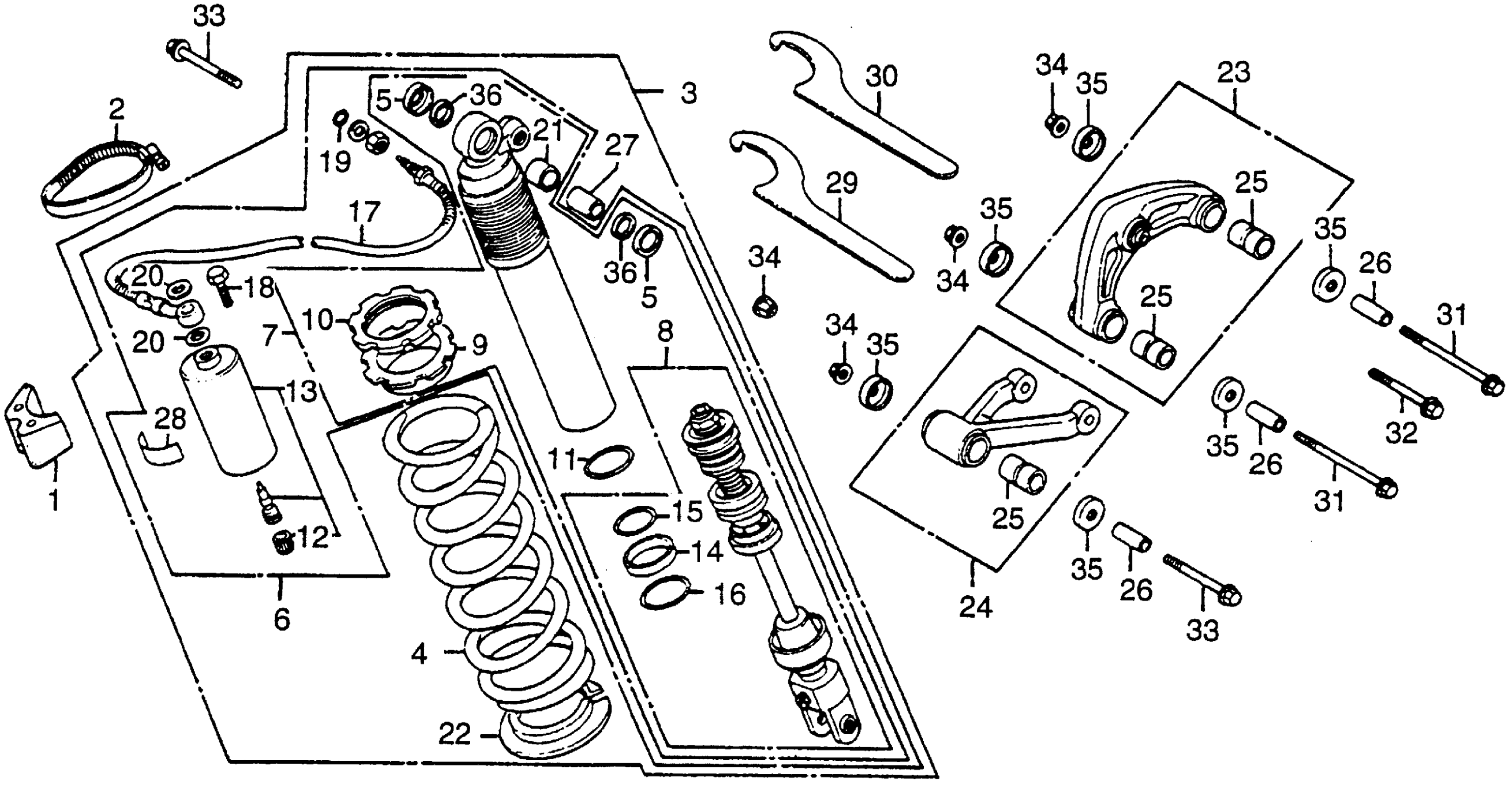

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING

50250-GC4-730

Unavailable

2

BAND, SUB-TANK (NOT AVAILABLE)

50252-GC4-000

Unavailable

3

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-GC4-742

Unavailable

4

SPRING, RR. SHOCK ABSORBER

52401-GC4-732

Unavailable

4

SPRING, RR. SHOCK ABSORBER | (Optional).

52402-GC4-732

Unavailable

4

SPRING, RR. SHOCK ABSORBER | (Optional).

52403-GC4-732

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR.

52410-GC4-742

Unavailable

7

DAMPER UNIT (NOT AVAILABLE)

52420-GC4-731

Unavailable

8

ROD, PISTON

52421-GC4-731

Unavailable

9

ADJUSTER, SPRING

52422-GC4-701

Unavailable

10

NUT, ADJUSTER

52423-GC4-701

Unavailable

11

RING, STOPPER

52424-GC4-701

Unavailable

12

CAP, AIR VALVE

52425-381-771

$5.05

13

SUB-TANK ASSY.

52430-GC4-731

Unavailable

14

RING, PISTON

52431-GC4-003

Unavailable

15

O-RING (2.0X27.5)

52432-GC4-003

Unavailable

16

O-RING (3.5X26.7)

52434-GC4-003

Unavailable

17

HOSE, JOINT

52440-GC4-732

Unavailable

18

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

19

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

20

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

21

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

22

SEAT, RR. SHOCK ABSORBER SPRING

52459-GC4-003

Unavailable

23

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52460-GC4-730

Unavailable

24

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52470-GC4-730

Unavailable

25

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

26

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

27

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

28

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

29

SPANNER, PIN (NOT AVAILABLE) | (Optional).

89201-GC4-810

Unavailable

30

SPANNER, PIN | (Optional).

89202-GC4-810

Unavailable

31

BOLT, FLANGE (10X67)

90151-GC4-731

$10.84

32

BOLT, FLANGE (10X40)

90153-GC4-731

Unavailable

33

BOLT, FLANGE (10X62) This part replaces 90182-GC4-731.

90183-HC0-770

$10.50

33

BOLT, FLANGE (10X62)

90183-HC0-770

$10.50

34

NUT, AXLE (10MM)

90304-GA6-003

$2.89

35

SEAL, SHOCK ABSORBER ARM PIVOT This part replaces 91262-GC4-731.

91262-GC4-732

$11.62

35

SEAL, SHOCK ABSORBER ARM PIVOT

91262-GC4-732

$11.62

36

DUST SEAL B

91351-KB7-003

$3.49
