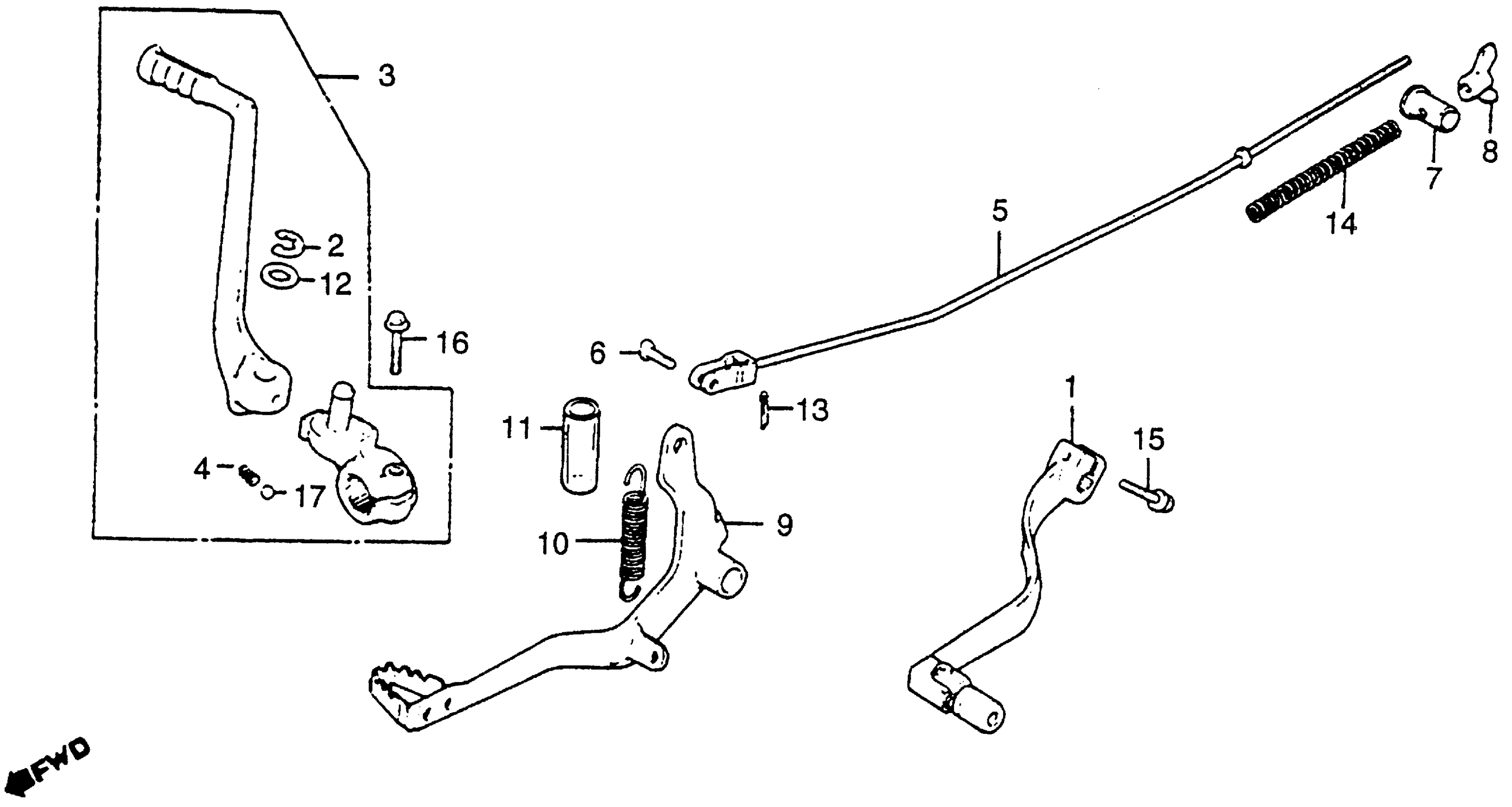

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 GEARSHIFT PEDAL + BRAKE PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-GC4-730.

24700-GF5-770

Unavailable

CLIP, KICK STARTER ARM

28293-333-000

$2.67

ARM ASSY., KICK STARTER

28300-GC4-730

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ROD, RR. BRAKE (NOT AVAILABLE)

43451-GC4-700

Unavailable

PIN, JOINT

43452-GC4-700

Unavailable

JOINT, BRAKE ARM

43454-KA4-700

Unavailable

NUT, BRAKE ADJUSTING This part replaces 43459-KA3-710.

43459-434-000

$15.27

NUT, BRAKE ADJUST

43459-434-000

$15.27

PEDAL, BRAKE

46510-GC4-730

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46511-GC4-730

Unavailable

TUBE, BRAKE PEDAL SPRING

46516-GC4-730

Unavailable

WASHER (13X20)

90505-116-670

$2.92

PIN, COTTER (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
