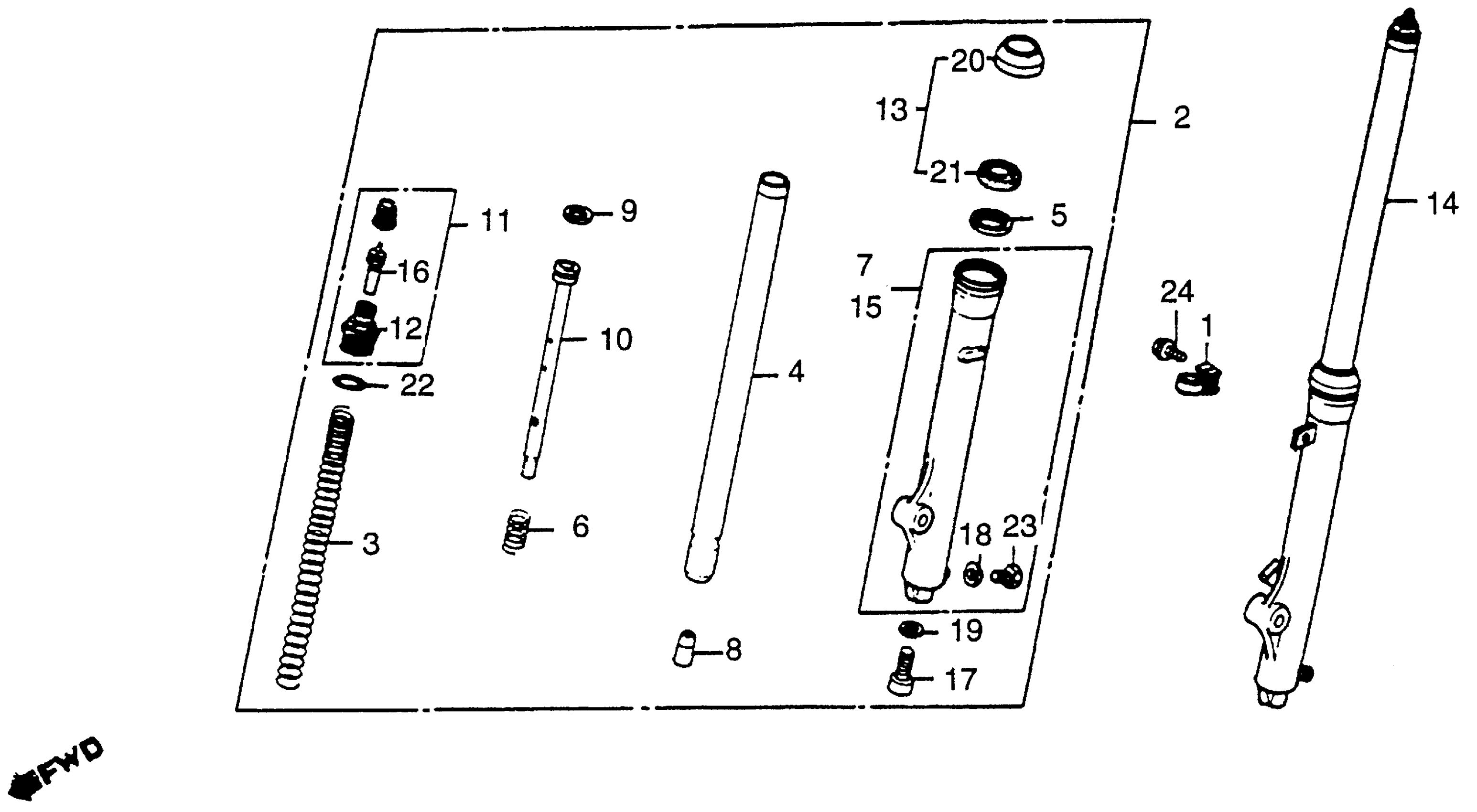

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 FRONT FORK Diagram

#

Description
Price

1

CLAMP, FR. BRAKE CABLE

45461-GC4-730

Unavailable

2

FORK ASSY., R. FR.

51400-GC4-732

Unavailable

3

SPRING, FR. FORK

51401-GC4-732

Unavailable

3

SPRING, FR. FORK | (Optional).

51402-GC4-732

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE) | (Optional).

51403-GC4-732

Unavailable

4

PIPE, FR. FORK

51410-GC4-732

Unavailable

5

RING, BACK-UP

51412-GC4-731

$8.39

6

SPRING, FR. REBOUND

51416-GC4-731

$8.15

7

CASE, R. (LOWER) (NOT AVAILABLE)

51420-GC4-731

Unavailable

8

PIECE, OIL LOCK

51432-GC4-732

Unavailable

9

RING, PISTON

51437-KA2-681

Unavailable

10

PIPE, SEAT

51440-GC4-732

Unavailable

11

BOLT ASSY., FR. FORK

51450-GC4-731

Unavailable

12

BOLT, FR. FORK

51455-GC4-731

Unavailable

13

SEAL SET, FR. FORK This part replaces 51490-GC4-731.

51490-413-305

Unavailable

13

SEAL SET, FR. FORK

51490-413-305

Unavailable

14

SHOCK ABSORBER ASSY., L. FR.

51500-GC4-732

Unavailable

15

CASE, L. (LOWER) (NOT AVAILABLE)

51520-GC4-731

Unavailable

16

CORE, VALVE

52426-381-771

Unavailable

17

BOLT, SOCKET (8MM) (NOT AVAILABLE) This part replaces 90116-GC4-731.

90133-964-671

Unavailable

17

BOLT, SOCKET (8MM)

90133-964-671

Unavailable

18

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

19

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

20

DUST SEAL, FR. FORK

91254-413-881

$25.92

21

OIL SEAL (33X46X11)

91255-413-881

$12.17

22

O-RING (22.1X3.5)

91356-GC4-731

$4.45

23

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
