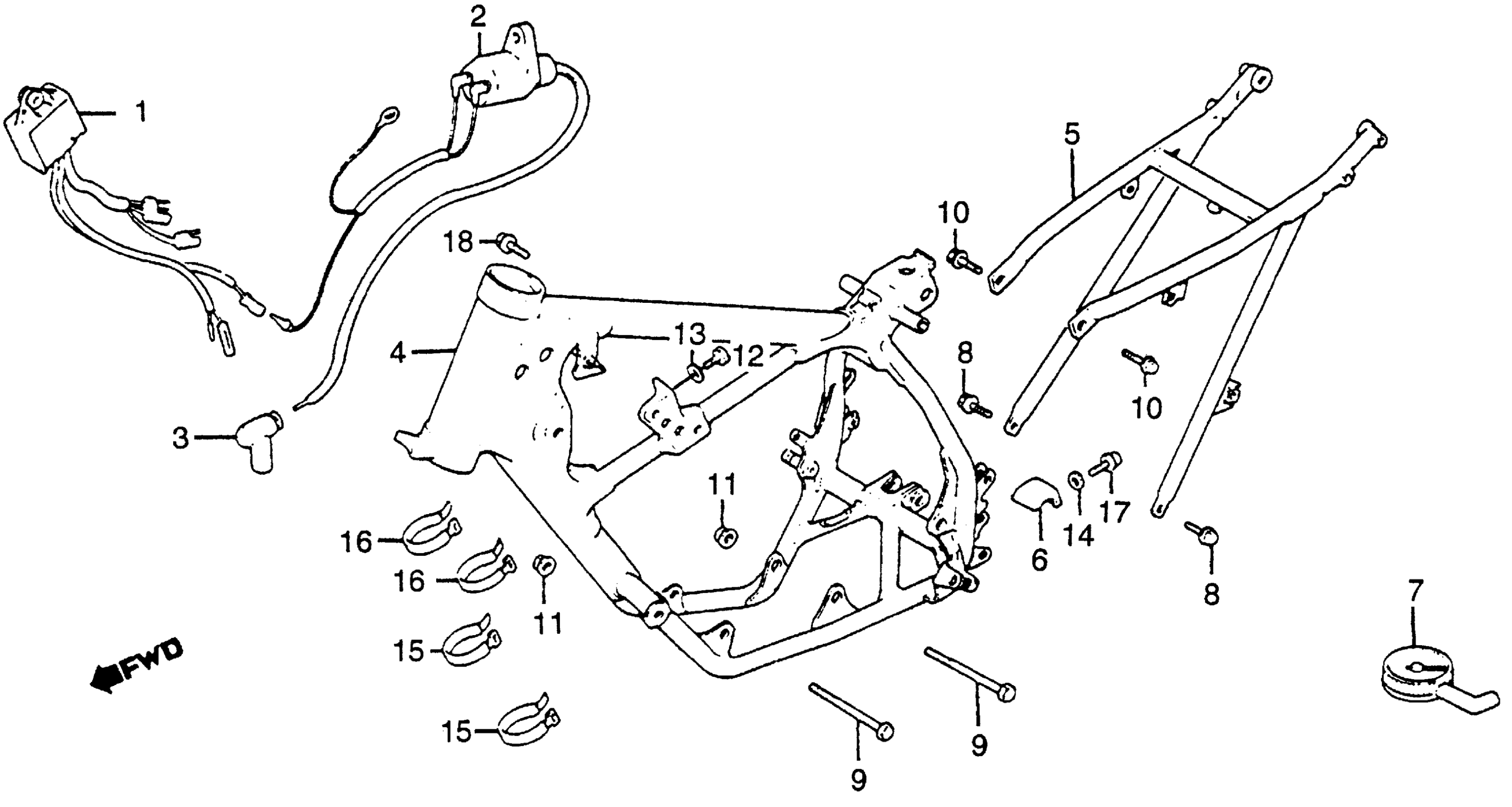

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 FRAME + IGNITION COIL Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL ASSY. (CDI) (NOT AVAILABLE)

30400-GC4-730

Unavailable

2

COIL, IGNITION (NOT AVAILABLE) This part replaces 30500-GC4-730.

30500-GM7-640

Unavailable

2

COIL, IGNITION (NOT AVAILABLE)

30500-GM7-640

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

4

FRAME *R119* (FLASH RED)

50100-GC4-731ZA

Unavailable

5

FRAME, RR. *R119* (FLASH RED) (NOT AVAILABLE)

50140-GC4-730ZA

Unavailable

6

SLIDER ASSY., CHAIN (LOWER) This part replaces 52175-GC4-700.

52185-GN1-000

$19.54

6

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$19.54

7

GAUGE, AIR PRESSURE | (Optional).

89301-KA4-811

$76.25

8

BOLT, JOINT (8X19)

90108-KA3-710

$3.47

9

BOLT, FLANGE (8X85)

90145-GC4-730

Unavailable

10

BOLT, FLANGE (8X20)

90183-MG3-000

Unavailable

11

NUT, FLANGE (8MM)

90309-428-731

$3.35

12

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

12

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

12

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

13

WASHER, PLAIN (5MM)

94101-05000

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

BAND B1, CABLE

32161-404-000

$2.23

15

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

16

BAND A2, CABLE

95014-61200

$2.33

17

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

17

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

18

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

18

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
