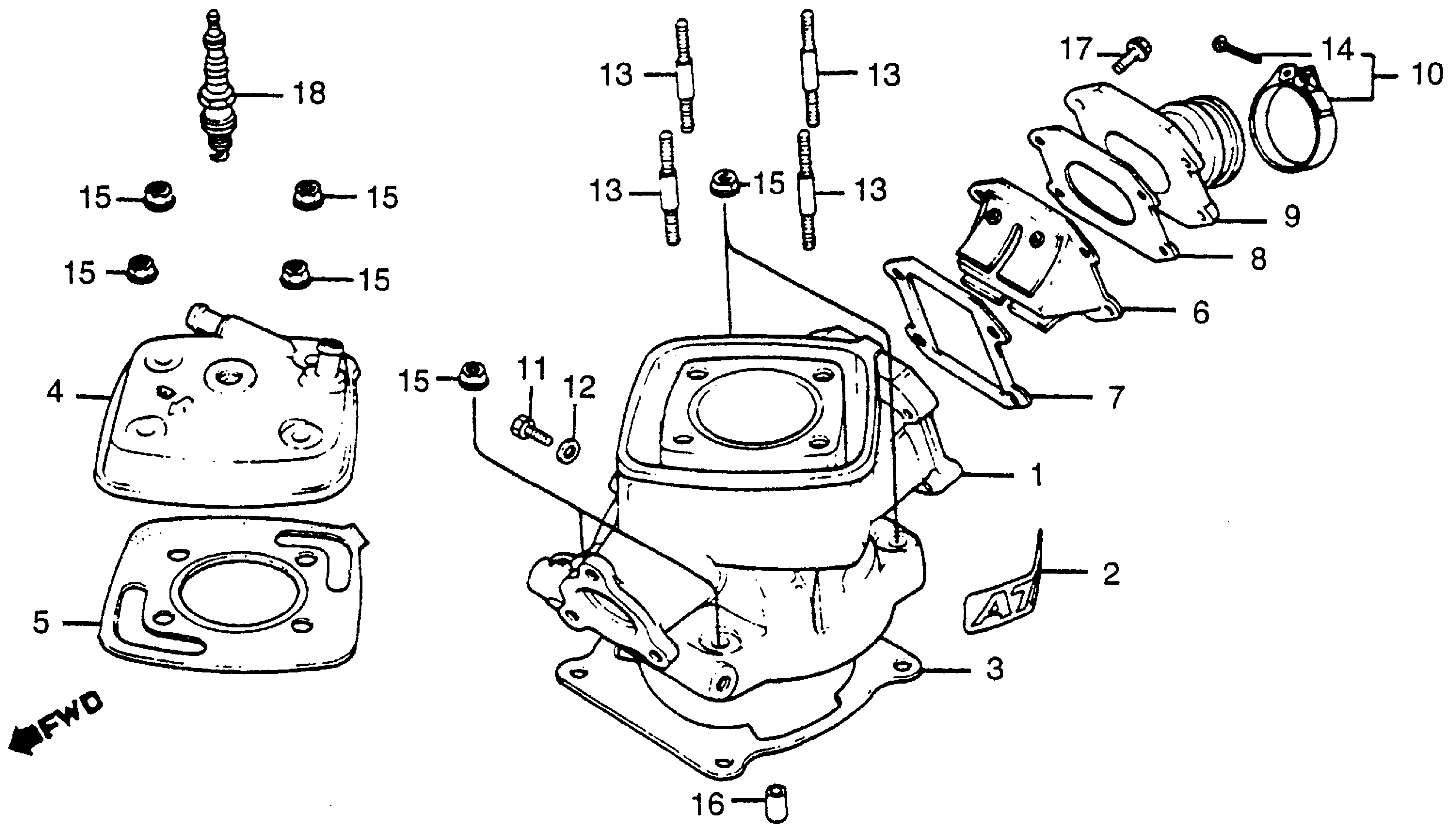

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-GC4-730

Unavailable

2

LABEL, ATAC

12103-GC4-730

Unavailable

3

GASKET, CYLINDER

12191-GC4-405

Unavailable

3

GASKET, CYLINDER This part replaces 12191-GC4-730.

12191-GC4-405

Unavailable

4

CYLINDER HEAD

12200-GC4-730

Unavailable

5

GASKET, CYLINDER HEAD

12251-GC4-307

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-GC4-700.

12251-GC4-307

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-GC4-701.

12251-GC4-307

Unavailable

6

VALVE, REED (NOT AVAILABLE)

14100-GC4-701

Unavailable

7

GASKET A, REED VALVE This part replaces 14132-GC4-000.

14132-GC4-306

Unavailable

7

GASKET A, REED VALVE

14132-GC4-306

Unavailable

8

GASKET B, REED VALVE This part replaces 14133-GC4-307.

14133-GC4-308

Unavailable

8

GASKET B, REED VALVE

14133-GC4-308

Unavailable

8

GASKET B, REED VALVE This part replaces 14133-GC4-700.

14133-GC4-308

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-GC4-730

Unavailable

10

BAND, INSULATOR

16223-GBF-830

$11.87

10

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

11

BOLT, OIL CHECK

90037-360-000

$3.26

12

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

13

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

13

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

13

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

13

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

13

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

13

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

14

SCREW, PAN (4X20)

93500-04020-0G

$1.49

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

PIN A, DOWEL (10X16)

94301-10160

$2.28

17

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

17

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

18

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59767.

98079-59847

$2.44

18

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59816.

98079-59847

$2.44

18

SPARK PLUG (BR9ES) (NGK)

98079-59847

$2.44

18

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59847-01.

98079-59847

$2.44

18

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864.

98079-59847

$2.44

18

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864-00.

98079-59847

$2.44
