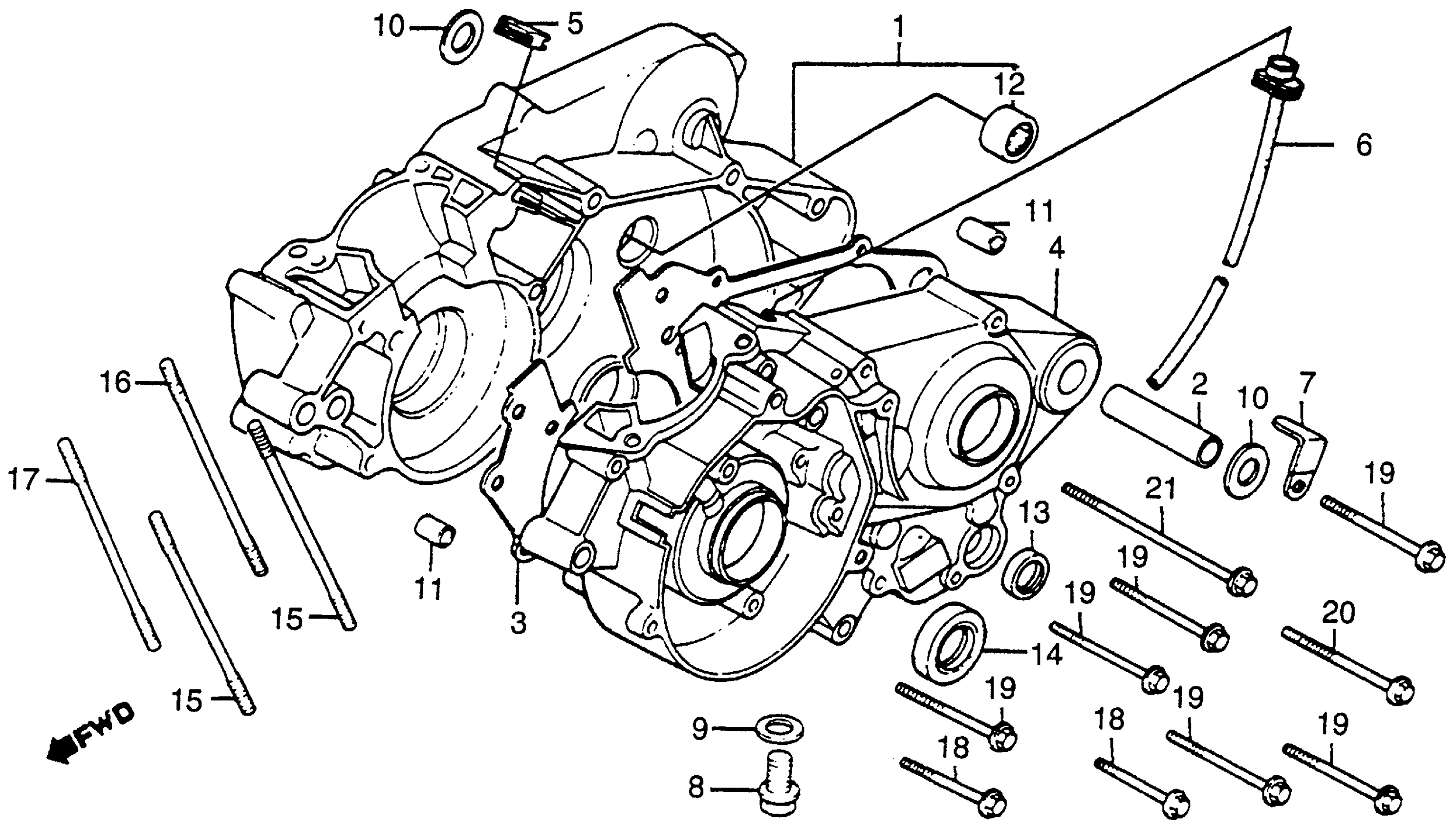

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-GC4-730

Unavailable

2

COLLAR (17MM)

11104-GC4-000

$12.47

3

GASKET, CRANKCASE This part replaces 11191-GC4-730.

11191-GC4-309

Unavailable

4

CRANKCASE, L. (NOT AVAILABLE)

11200-GC4-730

Unavailable

5

GROMMET, BREATHER

11206-GC4-700

$3.08

6

TUBE, BREATHER

11211-GC4-701

$9.35

7

CLAMP, CABLE

32111-323-000

$3.98

8

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

9

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

9

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

9

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

10

WASHER (14.2X30.5) This part replaces 90412-GC4-000.

90412-GC4-600

$4.13

10

WASHER (14.2X30.5)

90412-GC4-600

$4.13

11

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

12

BEARING, NEEDLE (15MM)

91106-383-003

$32.07

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-003.

91202-444-023

$3.78

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-005.

91202-444-023

$3.78

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

13

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

14

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

15

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.16

15

BOLT, STUD (8X28)

92900-08028-0B

$2.16

16

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

16

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

16

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

16

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

16

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

16

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

17

BOLT, STUD (8X55)

92700-08055-0B

Unavailable

18

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

19

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

19

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

20

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

20

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

21

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

21

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
