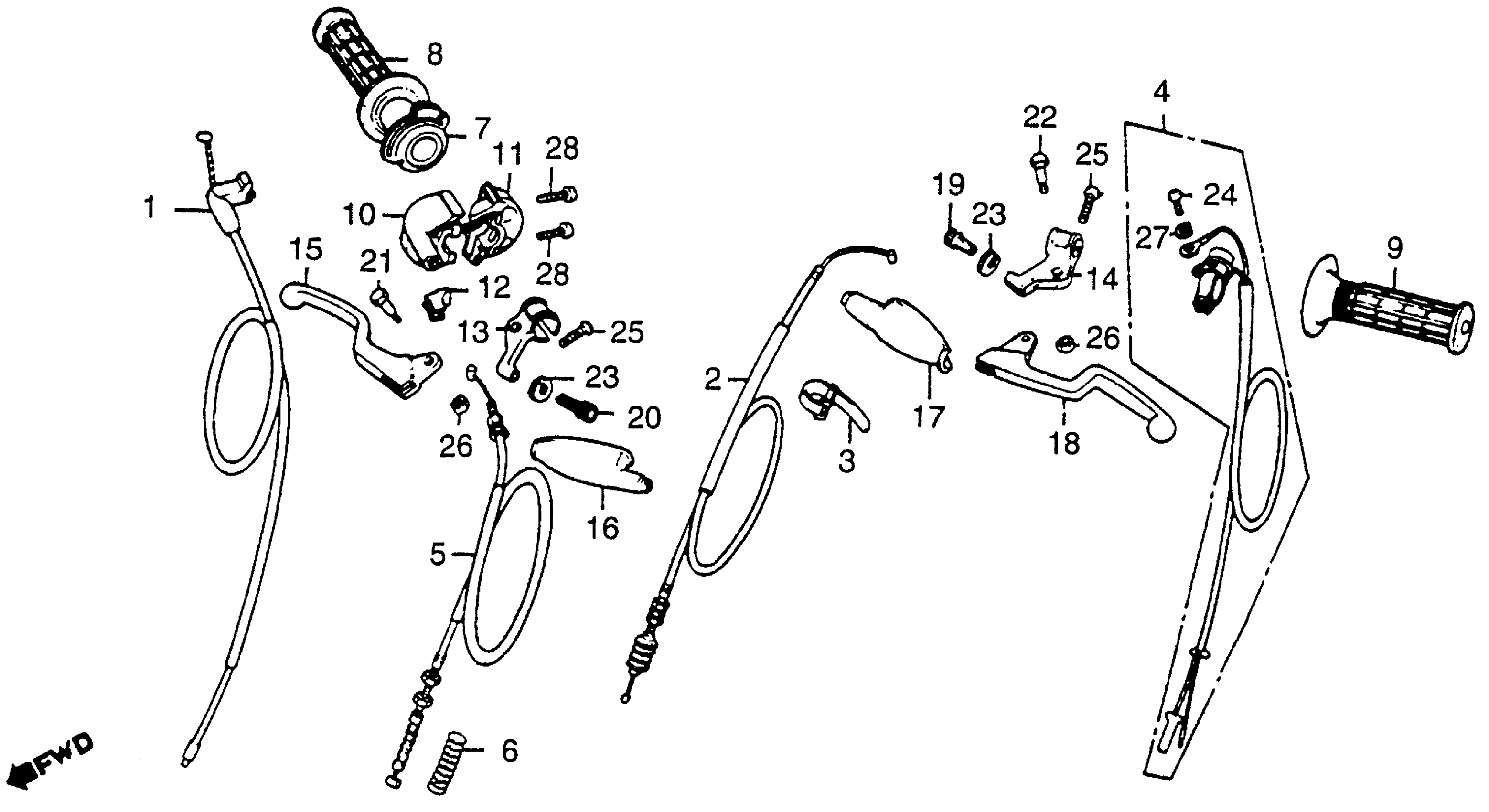

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-GC4-730

Unavailable

2

CABLE, CLUTCH

22870-GC4-P00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-GC4-700.

22870-GC4-P00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-GC4-830.

22870-GC4-P00

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP This part replaces 35130-KA4-000.

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP This part replaces 35130-444-000.

35130-KZ3-860

$44.30

5

CABLE, FR. BRAKE

45450-GC4-000

Unavailable

5

CABLE, FR. BRAKE This part replaces 45450-GC4-730.

45450-GC4-000

Unavailable

6

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

7

PIPE, THROTTLE GRIP

53141-GC4-730

Unavailable

8

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

9

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

10

HOUSING A, GRIP (NOT AVAILABLE)

53167-GC4-730

Unavailable

11

HOUSING B, GRIP This part replaces 53168-GC4-730.

53168-GC4-830

Unavailable

11

HOUSING B, GRIP

53168-GC4-830

Unavailable

12

SLIDER, THROTTLE CABLE

53169-GC4-730

Unavailable

13

BRKT.SET,R HANDLE This part replaces 53171-GC4-700.

53171-GC4-505

Unavailable

14

BRACKET, L. HANDLE LEVER

53172-GC4-000

Unavailable

15

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-GC4-830

Unavailable

15

LEVER, R. HANDLEBAR (NOT AVAILABLE) This part replaces 53175-KA3-711.

53175-GC4-830

Unavailable

16

COVER, R. CONTROL LEVER

53176-KA3-710

Unavailable

17

COVER, L. HANDLEBAR

53177-430-000

$11.00

18

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-KA3-710.

53178-KA3-830

Unavailable

18

CONTROL LEVER, L. HANDLEBAR

53178-KA3-830

Unavailable

19

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

21

BOLT, HANDLEBAR

90113-KA3-710

$3.90

22

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

23

NUT, FIXING

90321-315-670

$7.31

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

24

SCREW, PAN (4X12)

93500-04012-0A

$1.49

24

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

WASHER, SPRING (4MM)

94111-04000

$1.49

28

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

28

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
