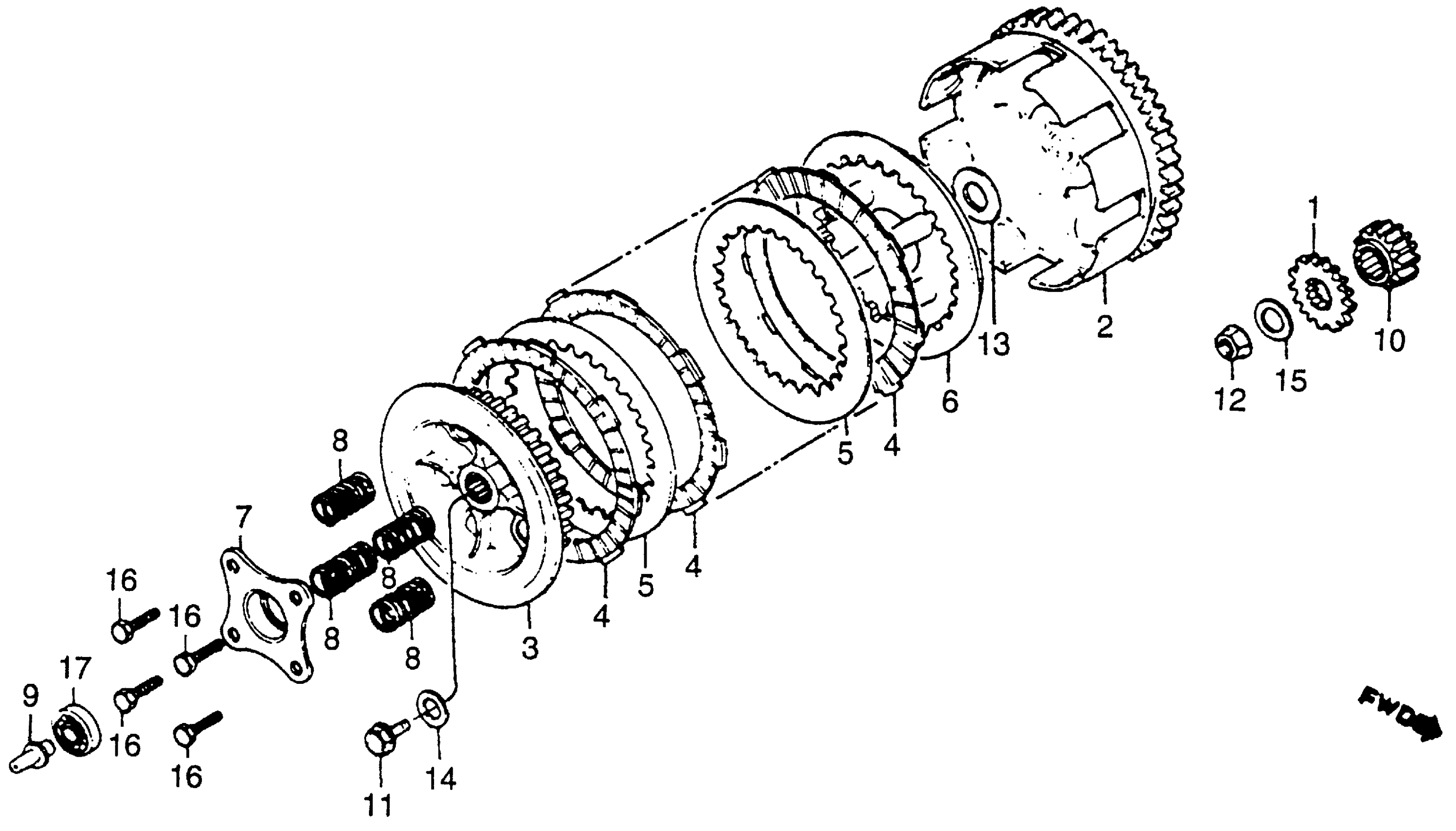

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 CLUTCH Diagram

#

Description
Price

1

GEAR, WATER PUMP DRIVEN (20T/16T)

19233-GC4-730

$79.69

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-GC4-730

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE)

22121-GC4-730

Unavailable

4

DISK, CLUTCH FRICTION This part replaces 22201-GC4-701.

22201-MR8-000

$14.79

4

DISK, CLUTCH FRICTION This part replaces 22201-GS2-000.

22201-MR8-000

$14.79

4

DISK, CLUTCH FRICTION

22201-MR8-000

$14.79

5

PLATE, CLUTCH This part replaces 22311-GC4-730.

22311-HE0-000

Unavailable

5

PLATE, CLUTCH

22311-HE0-000

Unavailable

6

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-GC4-730

Unavailable

7

PLATE, CLUTCH LIFTER

22361-166-000

Unavailable

8

SPRING, CLUTCH

22401-GC4-700

Unavailable

8

SPRING, CLUTCH This part replaces 22401-GC4-730.

22401-GC4-700

Unavailable

9

ROD, CLUTCH LIFTER

22847-166-000

$12.56

10

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-GC4-730

Unavailable

11

BOLT, HEX. (8X13)

90002-GC4-730

Unavailable

12

NUT, FLANGE (12MM) This part replaces 90231-397-000.

94050-12000

$1.49

12

NUT, FLANGE (12MM)

94050-12000

$1.49

13

WASHER, PLAIN (17MM)

90401-GC4-730

$6.45

14

WASHER, SPRING (8MM) (NOT AVAILABLE)

90403-GC4-730

Unavailable

15

WASHER, PLAIN (12MM) This part replaces 90440-166-000.

90440-GT4-970

$2.48

16

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

17

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
