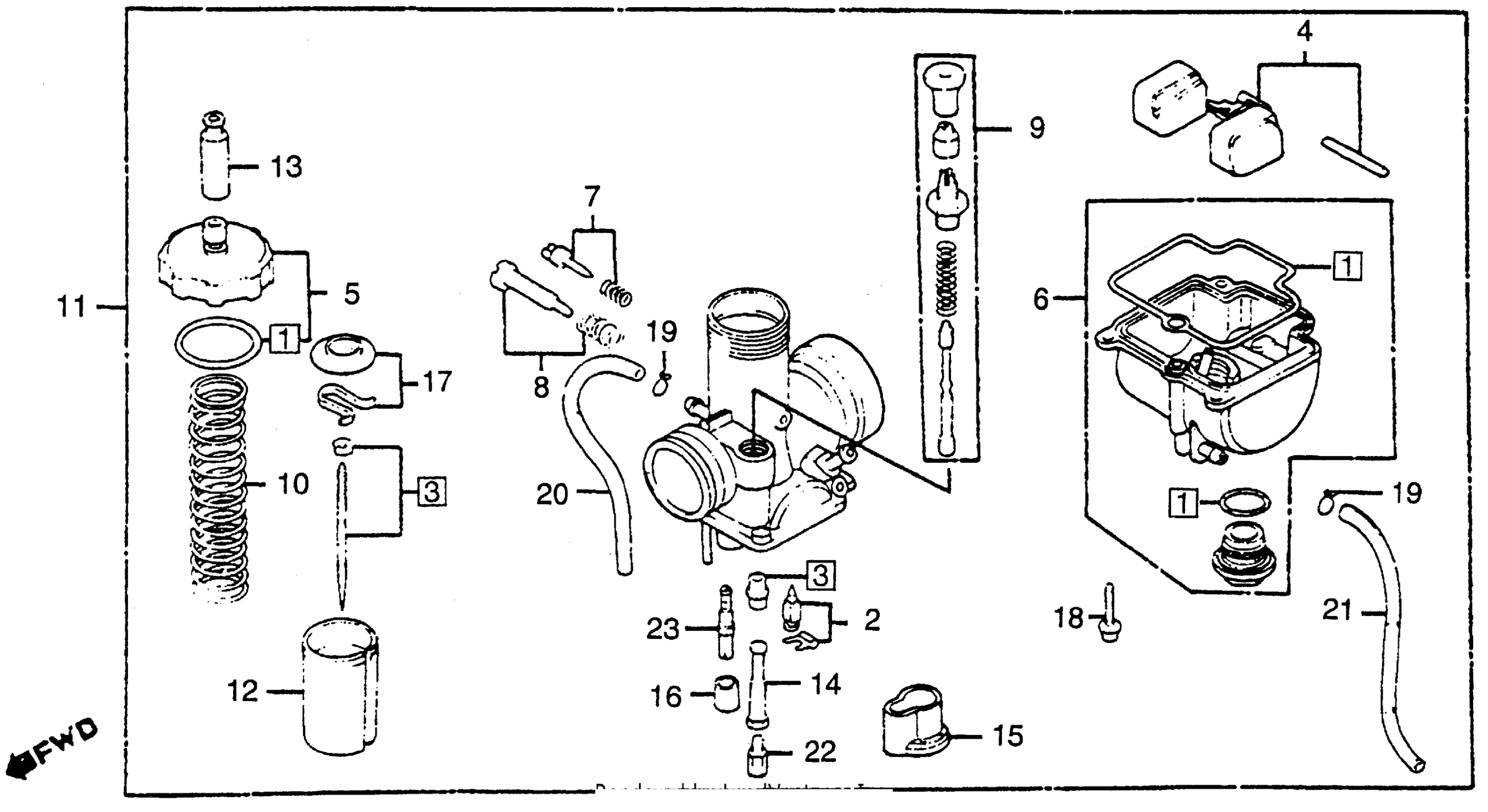

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GC4-701.

16010-KJ1-305

Unavailable

1

GASKET SET

16010-KJ1-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-169-004.

16011-GBF-B41

$36.72

3

NEEDLE SET, JET

16012-GC4-731

Unavailable

4

FLOAT SET

16013-GBF-840

Unavailable

4

FLOAT SET This part replaces 16013-GC4-731.

16013-GBF-840

Unavailable

5

TOP SET This part replaces 16014-GC4-701.

16014-KM7-701

Unavailable

5

TOP SET

16014-KM7-701

Unavailable

6

CHAMBER SET, FLOAT

16015-GBF-840

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-GC4-731.

16015-GBF-840

Unavailable

7

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

8

SCREW SET B

16028-GC4-701

Unavailable

9

VALVE SET, STARTER

16046-KA5-771

Unavailable

10

SPRING, COMPRESSION COIL

16050-GC4-731

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-GC4-731

Unavailable

12

VALVE, THROTTLE

16111-GC4-731

Unavailable

13

CAP, CABLE SEALING This part replaces 16118-GC4-004.

16148-KB1-921

$17.51

13

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

13

CAP, CABLE SEALING

16148-KB1-921

$17.51

15

HOLDER, NEEDLE JET

16165-GC4-731

Unavailable

16

HOLDER, JET

16168-GC4-701

Unavailable

17

PLATE SET

16212-GC4-701

Unavailable

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

BULK HOSE, VINYL (4X7X8000) (4X7X270)

95003-07008-60M

$24.47

21

BULK HOSE, VINYL (4X7X8000) (4X7X300)

95003-07008-60M

$24.47

22

JET, MAIN (#150) This part replaces 99101-357-1500.

99113-GHB-1500

$9.08

22

JET, MAIN (#150)

99113-GHB-1500

$9.08

23

JET, SLOW (#55) | (Optional).

99103-399-0550

$14.59

23

JET, SLOW (#50) | (Optional).

99103-440-0500

$15.48

23

JET, SLOW (#52)

99103-4400520

$13.15

23

JET, SLOW (#55) | (Optional). This part replaces 99103-440-0550.

99103-399-0550

$14.59
