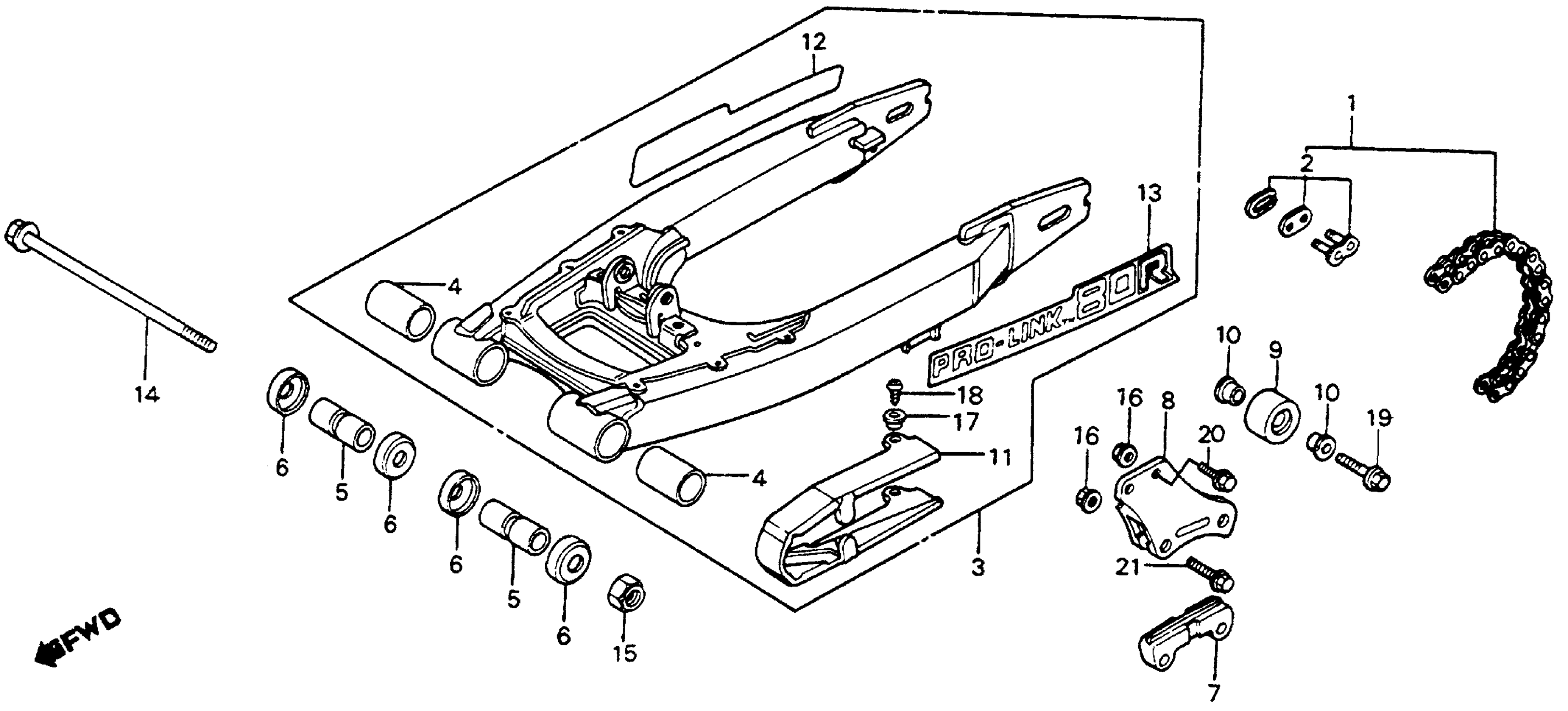

Honda CR80RA (83) MOTORCYCLE, JPN, VIN# JH2HE040-DK000020 TO JH2HE040-DK007883 SWINGARM + DRIVE CHAIN 83 Diagram

#

Description
Price

1

CHAIN, DRIVE (420M-112) (DAIDO)

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-003.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-005.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-601.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-602.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-603.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40530-GC4-811.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40530-GC4-812.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40532-GC4-601.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40532-GC4-602.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40532-GC4-603.

405W3-GC5-505

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

SWINGARM ASSY., RR.

52100-GC4-700

Unavailable

4

BUSH, SWINGARM PIVOT

52108-GC4-003

Unavailable

5

COLLAR, SWINGARM

52141-GC4-000

Unavailable

6

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-GE2-003.

52144-GE2-005

$16.27

6

CAP, SWINGARM DUST SEAL (NOK)

52144-GE2-005

$16.27

7

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-GC4-700

Unavailable

8

GUIDE, CHAIN

52156-GC4-700

Unavailable

9

ROLLER, CHAIN

52158-GC4-700

Unavailable

10

COLLAR, CHAIN ROLLER (NOT AVAILABLE)

52159-GC4-000

Unavailable

11

SLIDER, CHAIN (NOT AVAILABLE)

52170-GC4-700

Unavailable

12

EMBLEM, R. SWINGARM (NOT AVAILABLE)

87121-GC4-700

Unavailable

13

EMBLEM, L. SWINGARM (NOT AVAILABLE)

87122-GC4-700

Unavailable

14

BOLT, SWINGARM PIVOT

90121-GC4-700

Unavailable

15

NUT, FLANGE (14MM)

90201-GC4-000

$4.48

16

NUT, U (6MM) This part replaces 90301-MC7-003.

90301-473-003

$4.07

16

NUT, U (6MM)

90301-473-003

$4.07

16

NUT, U (6MM) This part replaces 90301-473-013.

90301-473-003

$4.07

17

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

18

SCREW, TAPPING (5X12)

93901-25210

$1.49

19

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

19

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

20

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

20

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

21

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

21

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
