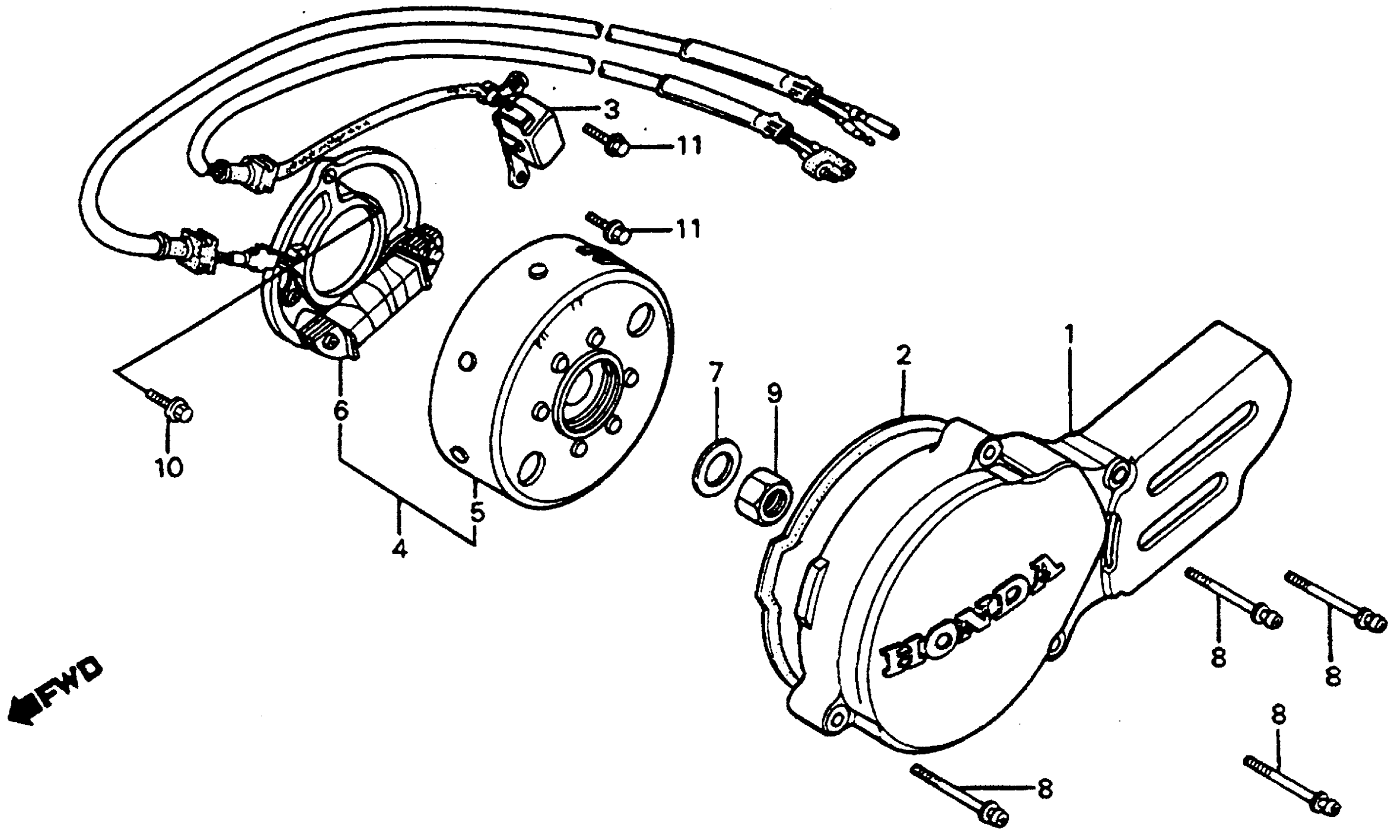

Honda CR80RA (83) MOTORCYCLE, JPN, VIN# JH2HE040-DK000020 TO JH2HE040-DK007883 LEFT CRANKCASE COVER + ALTERNATOR 83 Diagram

COVER ASSY., L. CRANKCASE This part replaces 11340-GC4-700.

11340-GC4-710

Unavailable

COVER ASSY., L. CRANKCASE

11340-GC4-710

Unavailable

GASKET, L. COVER (NOT AVAILABLE)

11342-GC4-700

Unavailable

GENERATOR, PULSE (NOT AVAILABLE)

30300-GC4-701

Unavailable

ALTERNATOR ASSY. (C.D.I.) (NOT AVAILABLE)

31100-GC4-701

Unavailable

FLYWHEEL (NOT AVAILABLE)

31110-GC4-701

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-GC4-701.

31120-GC4-711

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-GC4-702.

31120-GC4-711

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-GC4-710.

31120-GC4-711

Unavailable

STATOR (NOT AVAILABLE)

31120-GC4-711

Unavailable

WASHER, PLAIN (12MM) This part replaces 90441-166-000.

90441-KR3-000

$3.78

SCREW-WASHER (6X35)

93891-06035-00

$1.49

NUT, HEX. (12MM)

94001-12200-0S

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
