Partiron

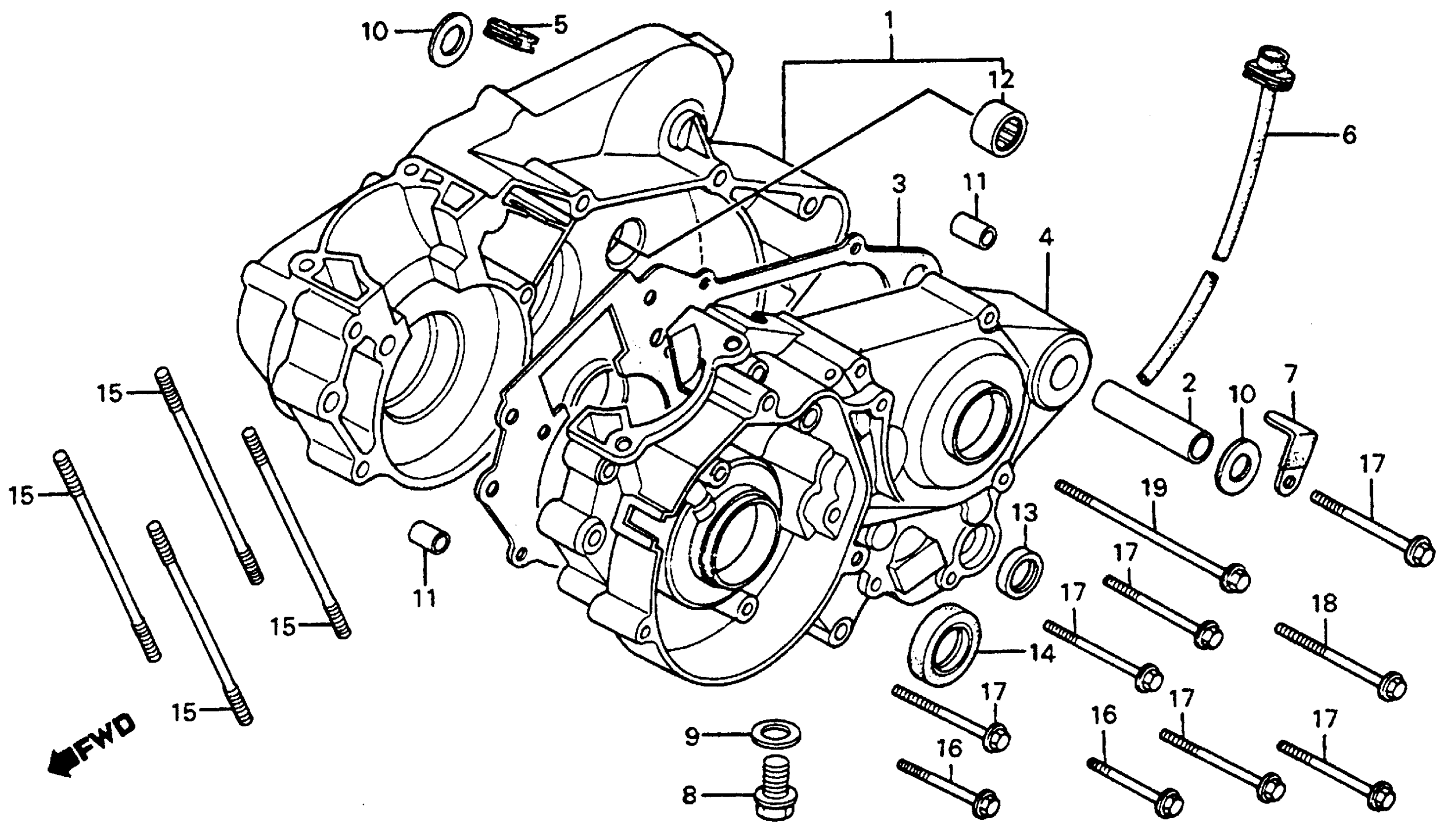

Honda CR80RA (83) MOTORCYCLE, JPN, VIN# JH2HE040-DK000020 TO JH2HE040-DK007883 CRANKCASE 83 Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GC4-700

Unavailable

2

COLLAR (17MM)

11104-GC4-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GC4-700.

11191-GC4-308

Unavailable

4

CRANKCASE, L. (NOT AVAILABLE)

11200-GC4-700

Unavailable

5

GROMMET, BREATHER

11206-GC4-700

$2.95

6

TUBE, BREATHER

11211-GC4-701

$8.61

7

CLAMP, CABLE

32111-323-000

$3.80

8

BOLT, SPECIAL (12MM) This part replaces 90015-KA3-710.

90015-KA3-711

$6.20

8

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.20

9

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.13

9

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.71

9

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

10

WASHER (14.2X30.5) This part replaces 90412-GC4-000.

90412-GC4-600

$3.93

10

WASHER (14.2X30.5)

90412-GC4-600

$3.93

11

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

12

BEARING, NEEDLE (15MM)

91106-383-003

$29.63

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-003.

91202-444-023

$3.62

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-005.

91202-444-023

$3.62

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.62

13

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.62

13

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.62

14

OIL SEAL (20X32X7) (NOK)

91205-166-004

$15.97

15

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.68

15

BOLT, STUD (8X28)

92900-08028-0B

$2.68

16

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.29

16

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

17

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.50

17

BOLT, FLANGE (6X55)

96001-06055-00

$1.50

18

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.54

18

BOLT, FLANGE (6X60)

96001-06060-00

$2.54

19

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.81

19

BOLT, FLANGE (6X70)

96001-06070-00

$1.81
