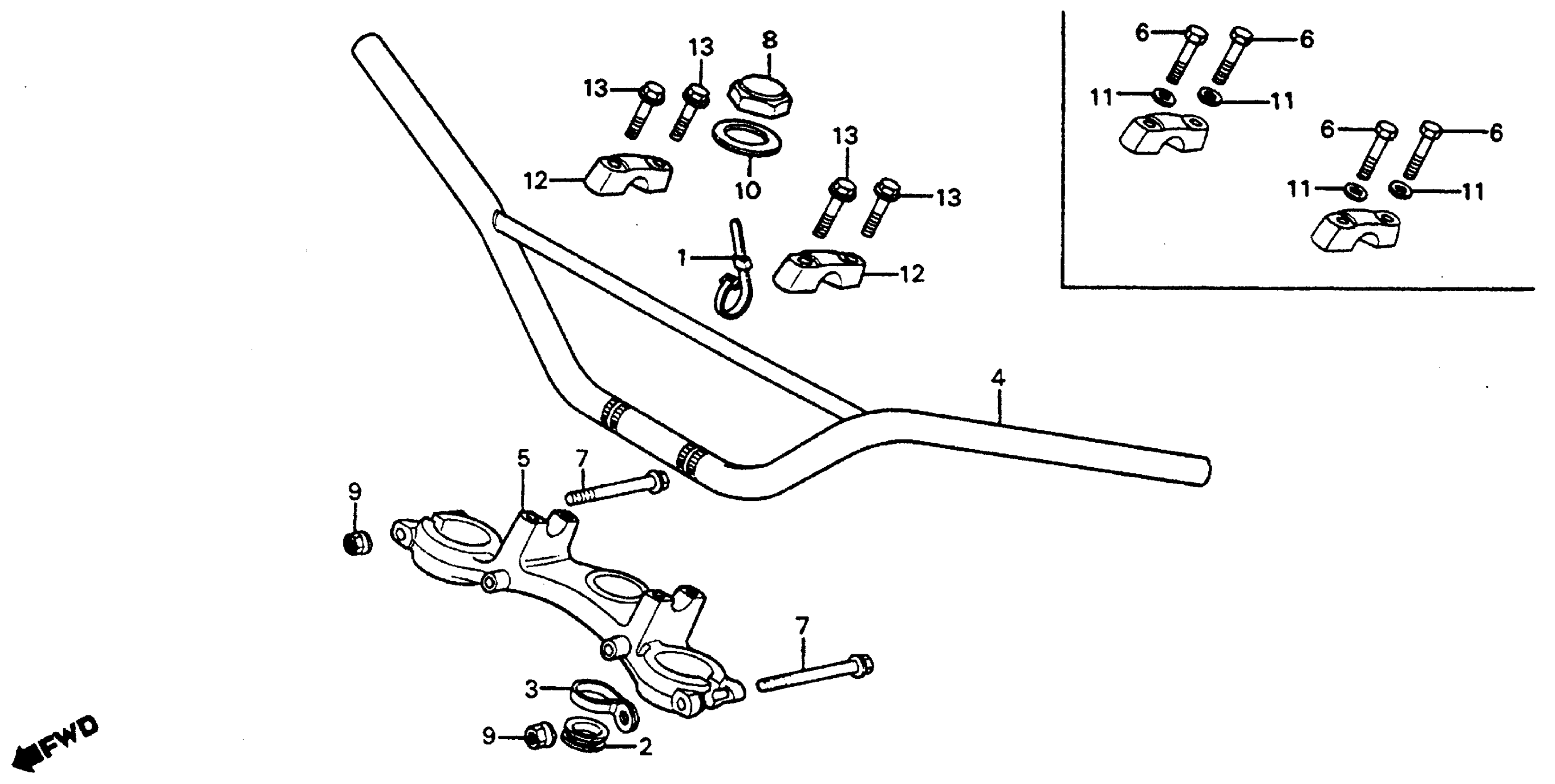

Honda CR80RA (81) ELSINORE, JPN, VIN# JH2HE020-BK100009 TO JH2HE020-BK108015 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

BAND B1, CABLE

32161-404-000

$2.23

2

GUIDE, CABLE (INNER)

45466-329-000

$2.95

3

HOLDER, CABLE GUIDE (NOT AVAILABLE)

45468-359-700

Unavailable

4

HANDLEBAR (NOT AVAILABLE)

53100-169-000

Unavailable

5

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-169-000

Unavailable

6

BOLT, HEX. (6X28)

90117-065-000

$2.62

7

BOLT, FLANGE (7X54)

90155-329-790

Unavailable

8

NUT, STEERING STEM

90304-166-010

Unavailable

9

NUT, FLANGE (7MM)

90355-MA6-000

Unavailable

9

NUT, FLANGE (7MM) This part replaces 90355-329-790.

90355-MA6-000

Unavailable

10

WASHER, STEERING STEM

90503-166-010

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable
