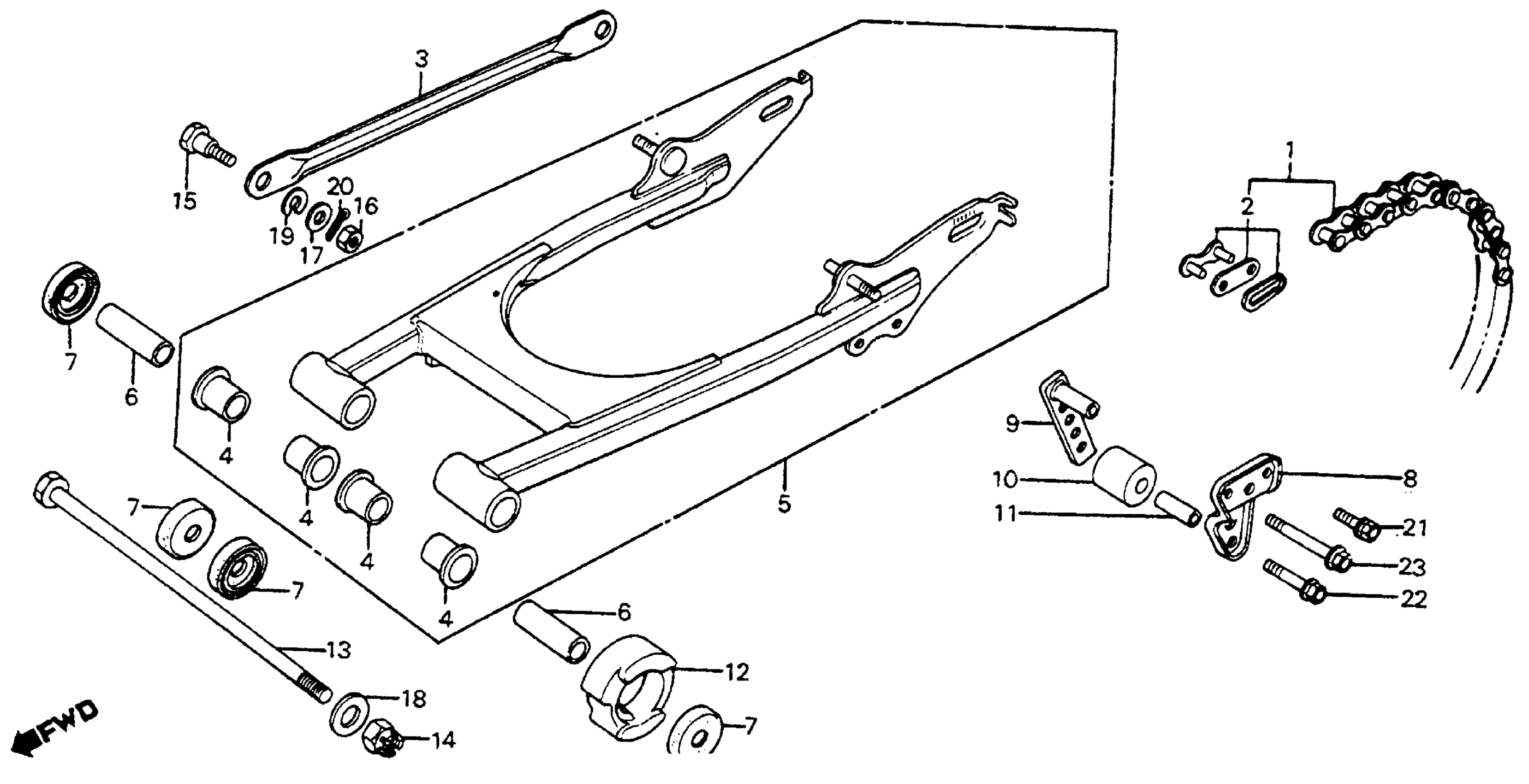

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 SWINGARM + DRIVE CHAIN 80-81 Diagram

#

Description
Price

1

CHAIN, DRIVE (420M-108) (DAIDO) CHAIN, DRIVE (420-108L)

40530-166-611

Unavailable

1

CHAIN, DRIVE (420-108L) (TAKASAGO) (NOT AVAILABLE) CHAIN, DRIVE (420M-110L)

40530-169-005

Unavailable

1

CHAIN, DRIVE (420M-110L) (DAIDO) (NOT AVAILABLE) CHAIN, DRIVE (420M-110) | (Optional).

40530-169-811

Unavailable

1

CHAIN, DRIVE (420M-110) (TAKASAGO) (NOT AVAILABLE) | (Optional).

40530-169-812

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-169-000

Unavailable

4

BUSH, PIVOT THRUST

52109-169-300

Unavailable

5

SWINGARM ASSY. *R23* (TAHITIAN RED) This part replaces 52110-169-000ZA.

52110-169-305ZA

Unavailable

5

SWINGARM ASSY. *R23* (TAHITIAN RED)

52110-169-305ZA

Unavailable

6

COLLAR, SWINGARM (NOT AVAILABLE)

52141-169-000

Unavailable

7

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

7

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

7

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

8

GUIDE A, CHAIN *R23* (TAHITIAN RED)

52156-169-000ZA

Unavailable

9

GUIDE B, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 52157-169-000ZA.

52157-169-700ZA

Unavailable

10

ROLLER, CHAIN (NOT AVAILABLE)

52158-169-000

Unavailable

11

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

12

SLIDER, CHAIN

52170-437-000

$21.13

13

BOLT, SWINGARM PIVOT

90121-GN1-000

$31.15

13

BOLT, SWINGARM PIVOT This part replaces 90121-169-000.

90121-GN1-000

$31.15

14

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

15

BOLT A, STOPPER ARM

92812-10000

$2.92

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, FLAT (12MM)

94102-12000

$1.49

19

WASHER, SPRING (8MM)

94111-10000

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

21

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

22

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

22

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

23

BOLT, FLANGE (6X55) This part replaces 95700-06055-08.

95701-06055-08

$2.16

23

BOLT, FLANGE (6X55)

95701-06055-08

$2.16
