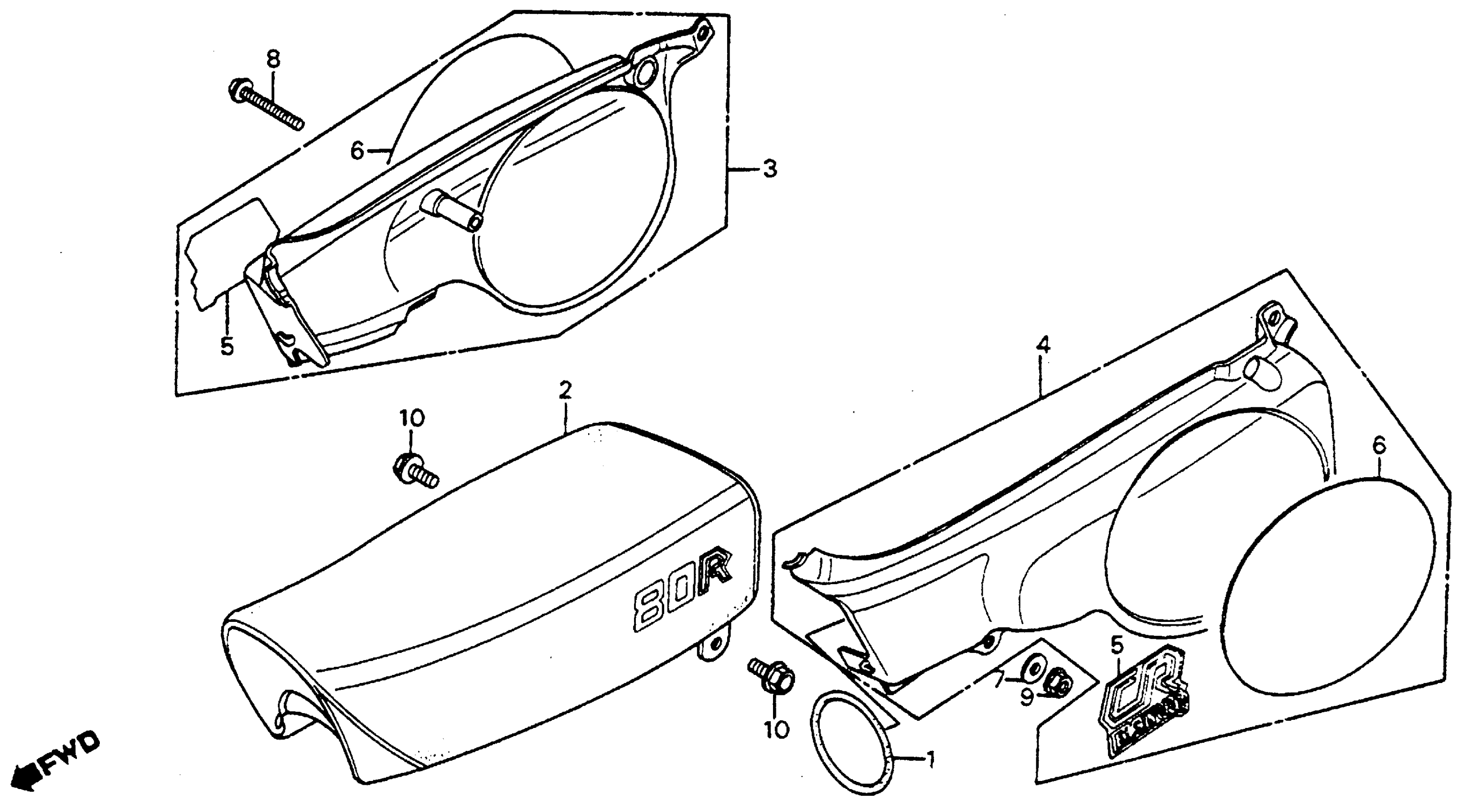

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 SEAT + SIDE COVER 80-81 Diagram

BAND, FR. NUMBER PLATE (NOT AVAILABLE)

61133-430-000

Unavailable

SEAT (NOT AVAILABLE)

77100-169-000

Unavailable

COVER SUB-ASSY., R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83510-169-000ZA

Unavailable

COVER SUB-ASSY., L. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83610-169-000ZA

Unavailable

EMBLEM, SIDE COVER (NOT AVAILABLE)

87203-467-300

Unavailable

FILM, SIDE COVER (NOT AVAILABLE)

87505-169-300

Unavailable

WASHER (6X20)

90401-373-770

$5.16

SCREW-WASHER (6X45)

93891-06045-08

$3.78

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.80

BOLT, FLANGE (8X14)

95701-08014-08

$1.80
