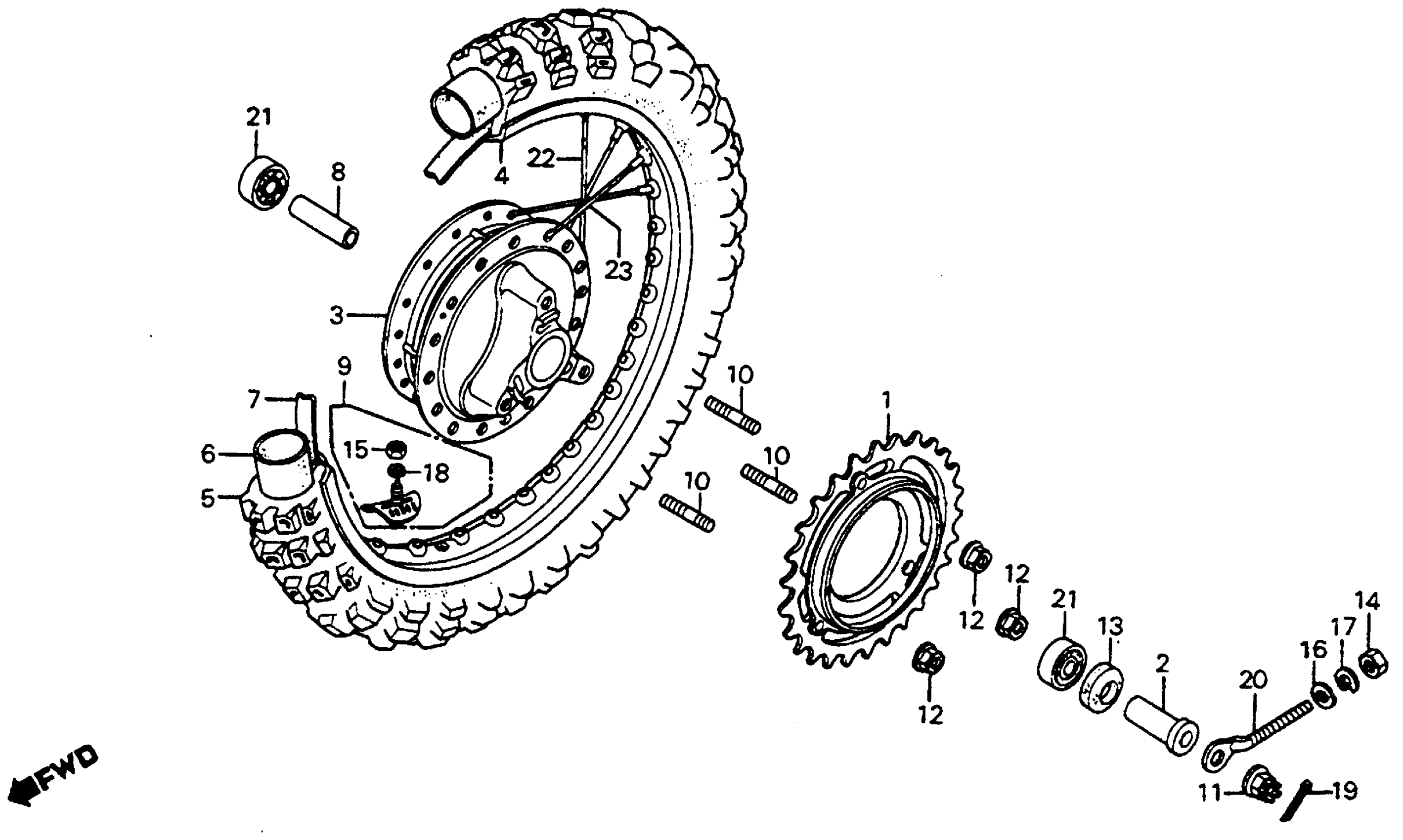

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 REAR WHEEL 80-81 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE) This part replaces 41210-169-000.

41200-169-000

Unavailable

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE) | (Optional). This part replaces 41230-169-000.

41200-169-000

Unavailable

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE)

41200-169-000

Unavailable

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE) | (Optional). This part replaces 41200-169-810.

41200-169-000

Unavailable

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE) | (Optional). This part replaces 41200-169-820.

41200-169-000

Unavailable

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE) | (Optional). This part replaces 41220-169-000.

41200-169-000

Unavailable

2

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-169-000

Unavailable

3

HUB, RR. WHEEL

42601-167-000

Unavailable

4

RIM, RR. WHEEL This part replaces 42701-169-003.

42701-169-405

Unavailable

4

RIM, RR. WHEEL

42701-169-405

Unavailable

5

TIRE, RR. (3.60-14) (4PR/43P) (IRC) This part replaces 42711-169-005.

42711-169-015

$87.87

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 0Y400-12801.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12800.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12801.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-GC1-004.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) TUBE, TIRE (2.75-14) (BS)

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-118-003.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-121-692.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-003.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-006.

42712-116-672

Unavailable

6

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-169-005.

42712-116-672

Unavailable

7

FLAP, RR. TUBE (14) (INOUE)

42713-116-671

$6.91

8

COLLAR, DISTANCE

44602-098-000

Unavailable

9

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

10

BOLT, STUD (10X48MM)

90125-323-000

Unavailable

11

NUT, AXLE (12MM) | Use up to Frame SN 5012045 This part replaces 90305-051-000.

90305-169-000

$6.28

11

NUT, AXLE (12MM) | Use up to Frame SN 5012045

90305-169-000

$6.28

11

NUT, AXLE (12MM)

90305-169-000

$6.28

12

NUT, FLANGE (10MM)

90308-382-670

$4.07

13

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

13

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, COTTER (3.0X45)

94201-30450

$1.49

20

ADJUSTER A, R. CHAIN

95014-10100

$5.54

21

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

22

SPOKE B (10X123)

97284-42086-F0

Unavailable

23

SPOKE B (10X122.5)

97824-42085-F0

Unavailable
