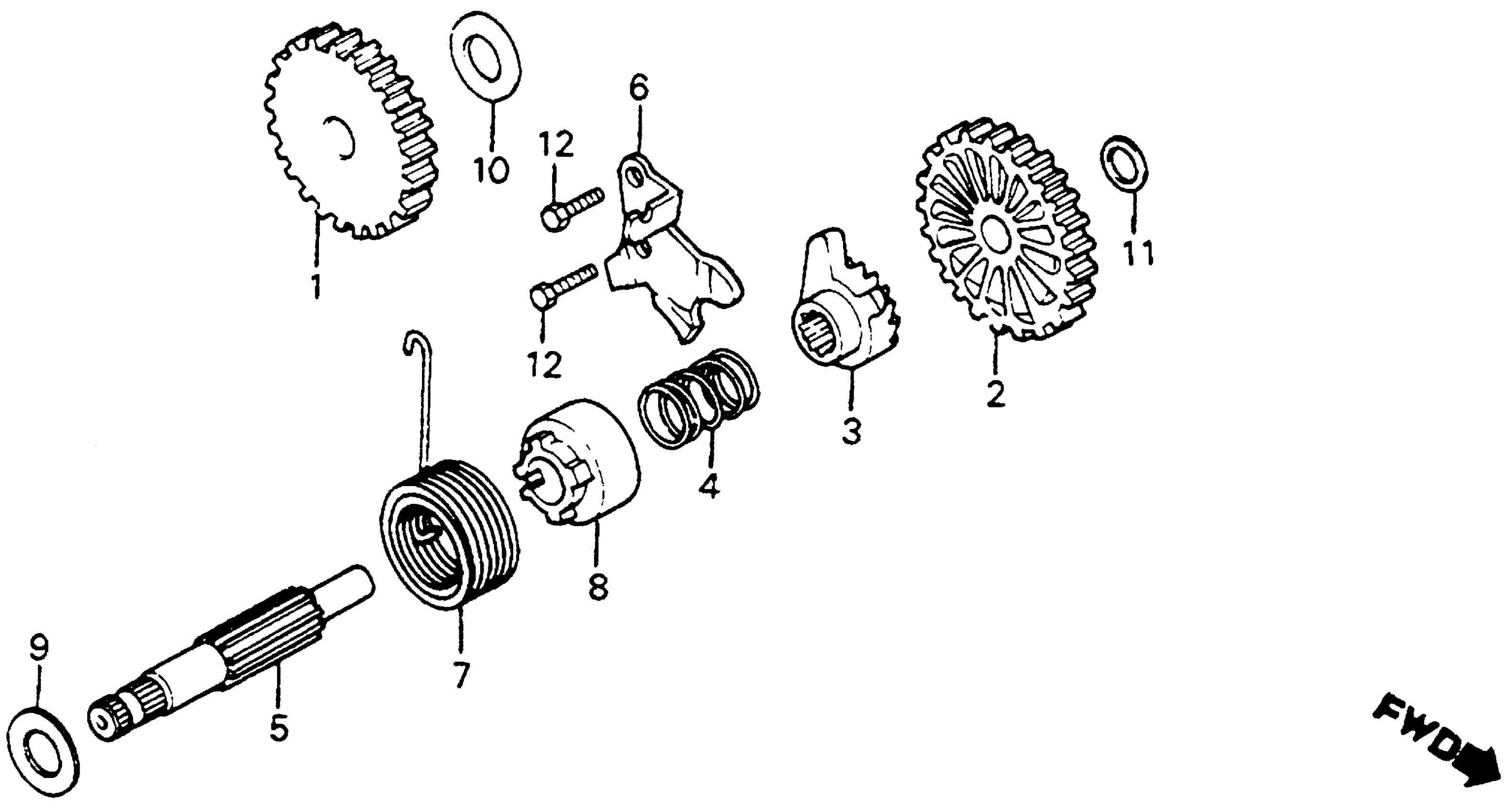

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 KICK STARTER SPINDLE 80-81 Diagram

#

Description
Price

1

GEAR, STARTER IDLE (23T) (NOT AVAILABLE) | Use up to Engine SN 5007422

23531-166-000

Unavailable

1

GEAR, STARTER IDLE (23T) (NOT AVAILABLE) | Use from Engine SN 5007423

23531-166-010

Unavailable

2

PINION, KICK STARTER (25T) This part replaces 28211-166-000.

28211-166-010

Unavailable

2

PINION, KICK STARTER (25T)

28211-166-010

Unavailable

3

RATCHET, STARTER DRIVE This part replaces 28221-166-000.

28221-166-010

Unavailable

3

RATCHET, STARTER DRIVE

28221-166-010

Unavailable

4

SPRING, RATCHET (NOT AVAILABLE)

28223-166-000

Unavailable

5

SPINDLE, KICK STARTER

28251-166-000

Unavailable

6

PLATE, RATCHET (NOT AVAILABLE)

28259-166-000

Unavailable

7

SPRING, KICK STARTER | Use up to Engine SN 5010476 This part replaces 28281-166-000.

28281-166-010

Unavailable

7

SPRING, KICK STARTER | Use up to Engine SN 5010476

28281-166-010

Unavailable

7

SPRING, KICK STARTER

28281-166-010

Unavailable

8

COLLAR, KICK SPRING

28282-166-000

Unavailable

9

WASHER, THRUST (15MM)

90451-166-000

Unavailable

10

WASHER (15MM)

90458-166-000

Unavailable

11

WASHER, THRUST (12MM)

90459-107-000

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49
