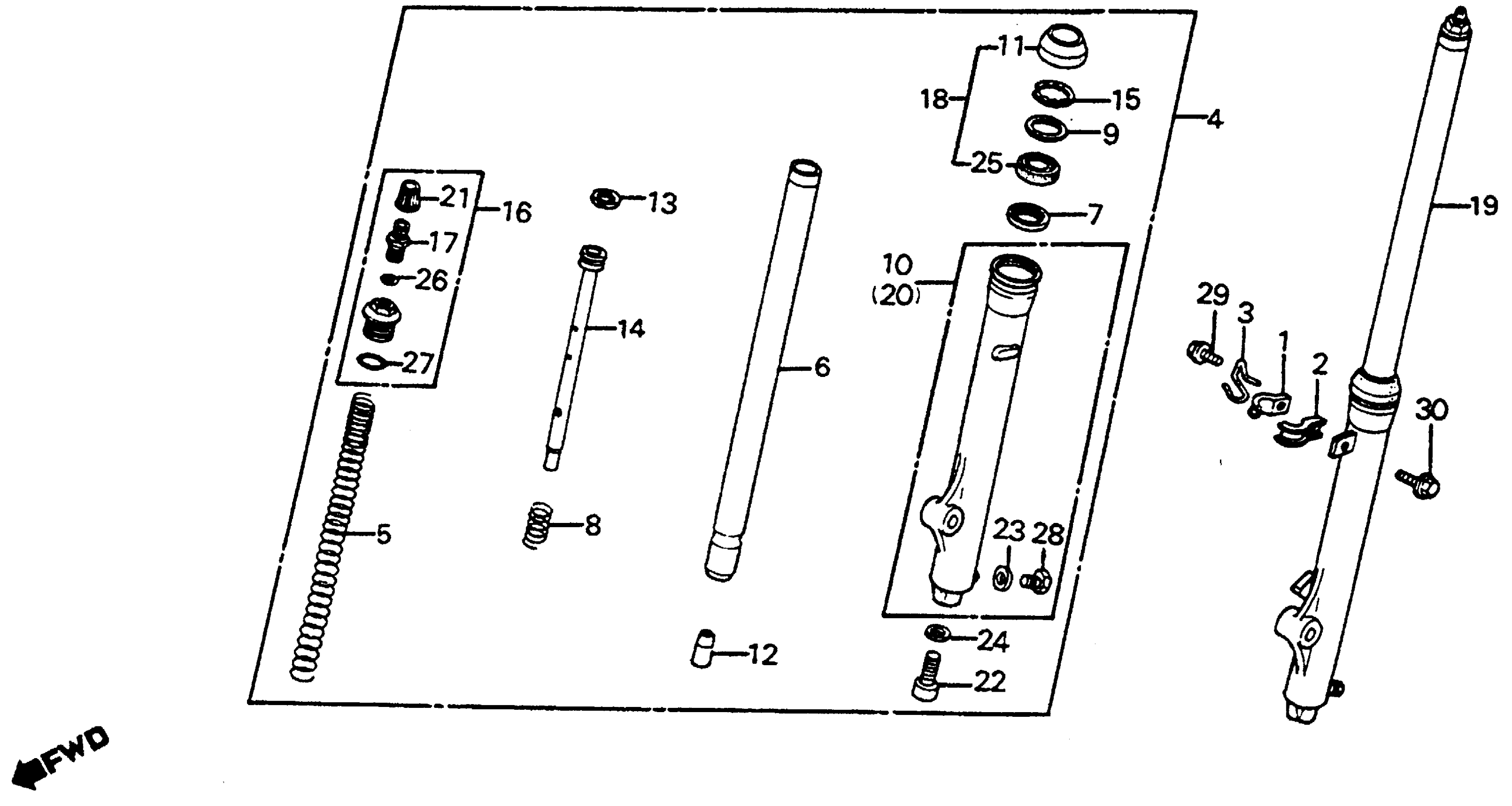

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 FRONT SHOCK ABSORBER Diagram

#

Description
Price

3

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45469-364-670

Unavailable

4

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-169-003

Unavailable

4

SHOCK ABSORBER ASSY., R. FR.

51400-169-013

Unavailable

5

SPRING, FR. FORK

51401-169-003

Unavailable

6

PIPE, FR. FORK

51410-169-003

Unavailable

7

RING, BACK-UP (NOT AVAILABLE)

51412-169-003

Unavailable

8

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

9

PLATE, BACK-UP (NOT AVAILABLE)

51413-169-003

Unavailable

10

CASE, R. (LOWER)

51421-169-003

Unavailable

11

DUST SEAL

51425-169-003

Unavailable

12

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

12

PIECE, OIL LOCKING

51432-447-731

$27.42

13

RING, PISTON This part replaces 51437-369-000.

51437-413-003

$7.96

13

RING, PISTON

51437-413-003

$7.96

14

PIPE, SEAT (NOT AVAILABLE)

51440-169-003

Unavailable

15

CIRCLIP (INNER) (42MM) (NOT AVAILABLE)

51447-169-003

Unavailable

16

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE) This part replaces 51454-169-003.

51454-169-013

Unavailable

16

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51454-169-013

Unavailable

17

VALVE, AIR (SHOWA) This part replaces 51456-469-003.

51456-469-013

$33.69

17

VALVE, AIR (SHOWA)

51456-469-013

$33.69

19

FORK ASSY., L. FR.

51500-169-003

Unavailable

19

FORK ASSY., L. FR.

51500-169-013

Unavailable

20

CASE, L. (LOWER)

51521-169-003

Unavailable

21

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

22

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

25

OIL SEAL (30X42X11)

91255-169-003

Unavailable

26

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

26

O-RING (5.8X1.9)

91305-323-000

$2.92

26

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

27

O-RING

91356-169-003

$2.92

28

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

BOLT-WASHER (6X12)

93401-06012-08

$1.55

29

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

$1.55
