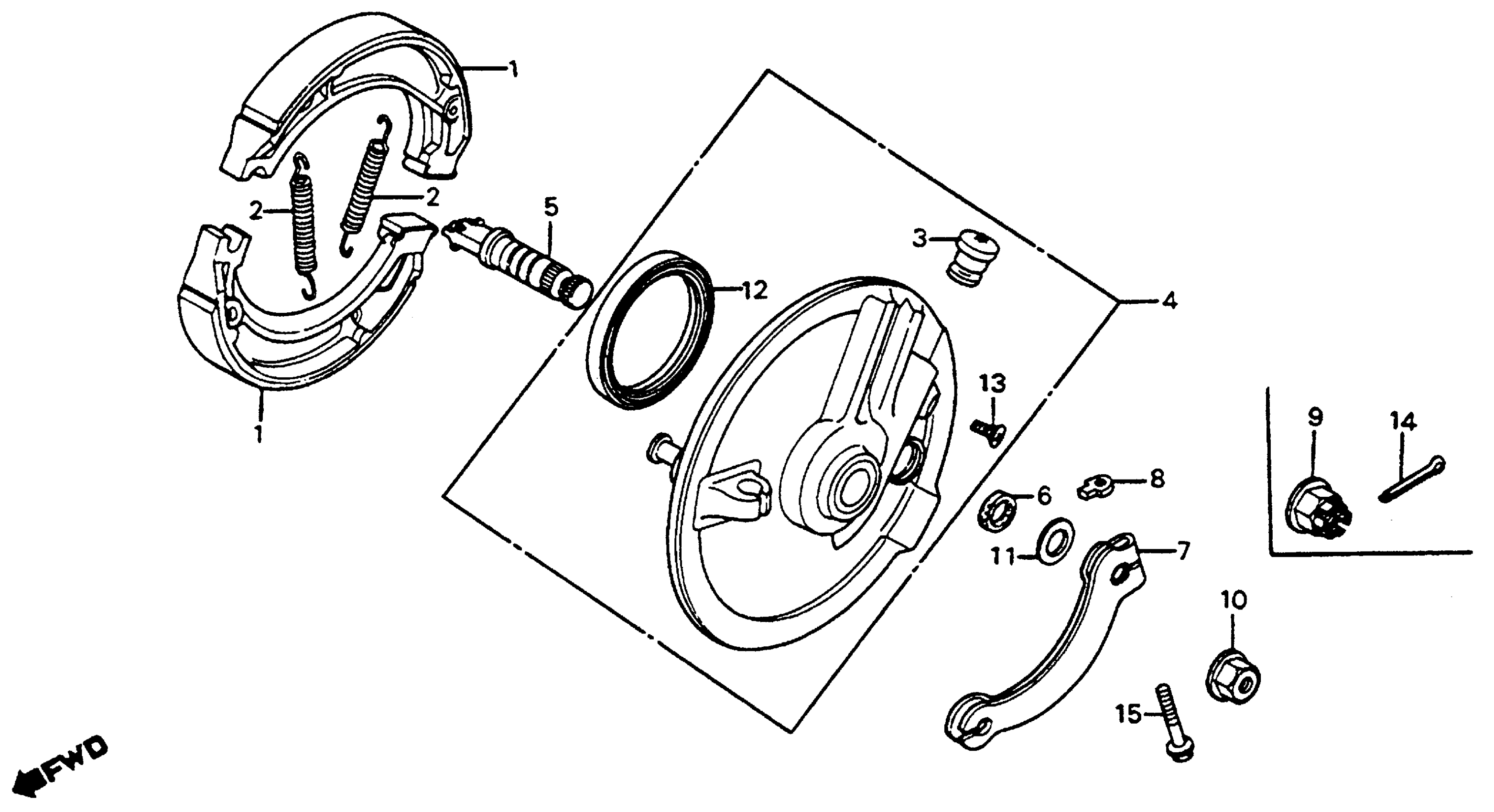

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 FRONT BRAKE PANEL 80-82 Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$26.25

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$26.25

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$26.25

2

SPRING, BRAKE SHOE

43151-110-000

$2.80

3

CAP, GEAR BOX HOLE

44835-365-671

Unavailable

4

PANEL SUB, FR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

45010-169-000ZA

Unavailable

5

CAM, FR. BRAKE This part replaces 45131-400-010.

45131-400-020

Unavailable

5

CAM, FR. BRAKE

45131-400-020

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

7

ARM, FR. BRAKE

45410-125-780

Unavailable

8

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.71

9

NUT, AXLE (12MM) | Use up to Frame SN 5012045 This part replaces 90305-051-000.

90305-169-000

$5.84

9

NUT, AXLE (12MM) | Use up to Frame SN 5012045

90305-169-000

$5.84

9

NUT, AXLE (12MM)

90305-169-000

$5.84

11

WASHER (14MM)

90509-169-000

Unavailable

12

OIL SEAL (47X60X7)

91251-GK4-003

$8.27

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$8.27

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$8.27

12

OIL SEAL (47X60X7)

91251-361-005

$12.19

13

SCREW, OVAL (5X18)

93700-05018-0A

$0.42

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

14

PIN, COTTER (3.0X45)

94201-30450

$0.94

15

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

15

BOLT, FLANGE (6X32)

95701-06032-00

$1.71
