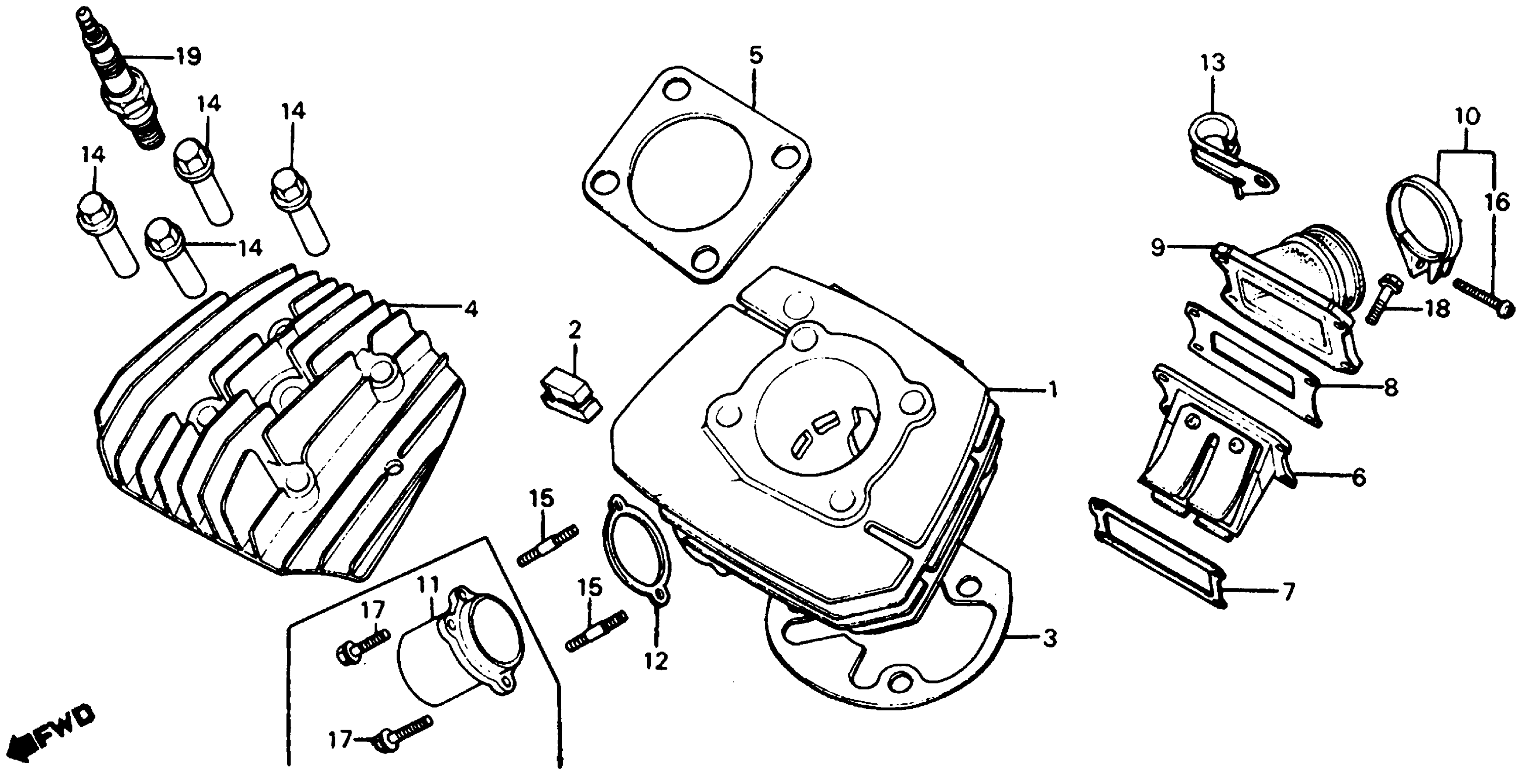

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 CYLINDER + CYLINDER HEAD 80-82 Diagram

#

Description
Price

1

CYLINDER

12100-169-000

Unavailable

2

RUBBER, INSERT (NOT AVAILABLE)

12105-169-000

Unavailable

3

GASKET, CYLINDER This part replaces 12191-169-000.

12191-GC4-306

Unavailable

3

GASKET, CYLINDER This part replaces 12191-GC4-000.

12191-GC4-306

Unavailable

3

GASKET, CYLINDER

12191-GC4-306

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-169-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-169-000

$6.33

6

VALVE, REED (NOT AVAILABLE) This part replaces 14100-169-003.

14100-169-670

Unavailable

6

VALVE, REED (NOT AVAILABLE)

14100-169-670

Unavailable

7

GASKET A, REED VALVE This part replaces 14132-169-000.

14132-169-306

Unavailable

8

GASKET B, REED VALVE This part replaces 14133-169-000.

14133-169-306

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 5005673 This part replaces 16211-169-003.

16211-169-670

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE) This part replaces 16211-169-013.

16211-169-670

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-169-670

Unavailable

10

BAND, INSULATOR

16223-GBF-830

$11.87

10

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$11.87

10

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

11

JOINT, EX. PIPE

18231-169-000

Unavailable

12

GASKET, EX. PIPE This part replaces 18291-169-000.

18291-169-306

Unavailable

12

GASKET, EX. PIPE

18291-169-306

Unavailable

13

CLIP, COIL CABLE

32921-437-000

Unavailable

14

NUT, SPECIAL (8MM)

90281-183-000

Unavailable

16

SCREW, PAN (4X25)

93500-04025-0A

$1.93

17

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

17

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

18

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

18

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

19

SPARK PLUG (B-9ES) (NGK)

98079-59810

$2.13

19

SPARK PLUG (B9ES) (NGK) This part replaces 98079-59811.

98079-59840

$2.56

19

SPARK PLUG (B9ES) (NGK) This part replaces 98079-59811-S.

98079-59840

$2.56

19

SPARK PLUG (B9ES) (NGK)

98079-59840

$2.56

19

SPARK PLUG (B-9ES) (NGK) This part replaces 98079-59860.

98079-59810

$2.13

19

SPARK PLUG (B10ES) (NGK)

98079-60810

$2.56
