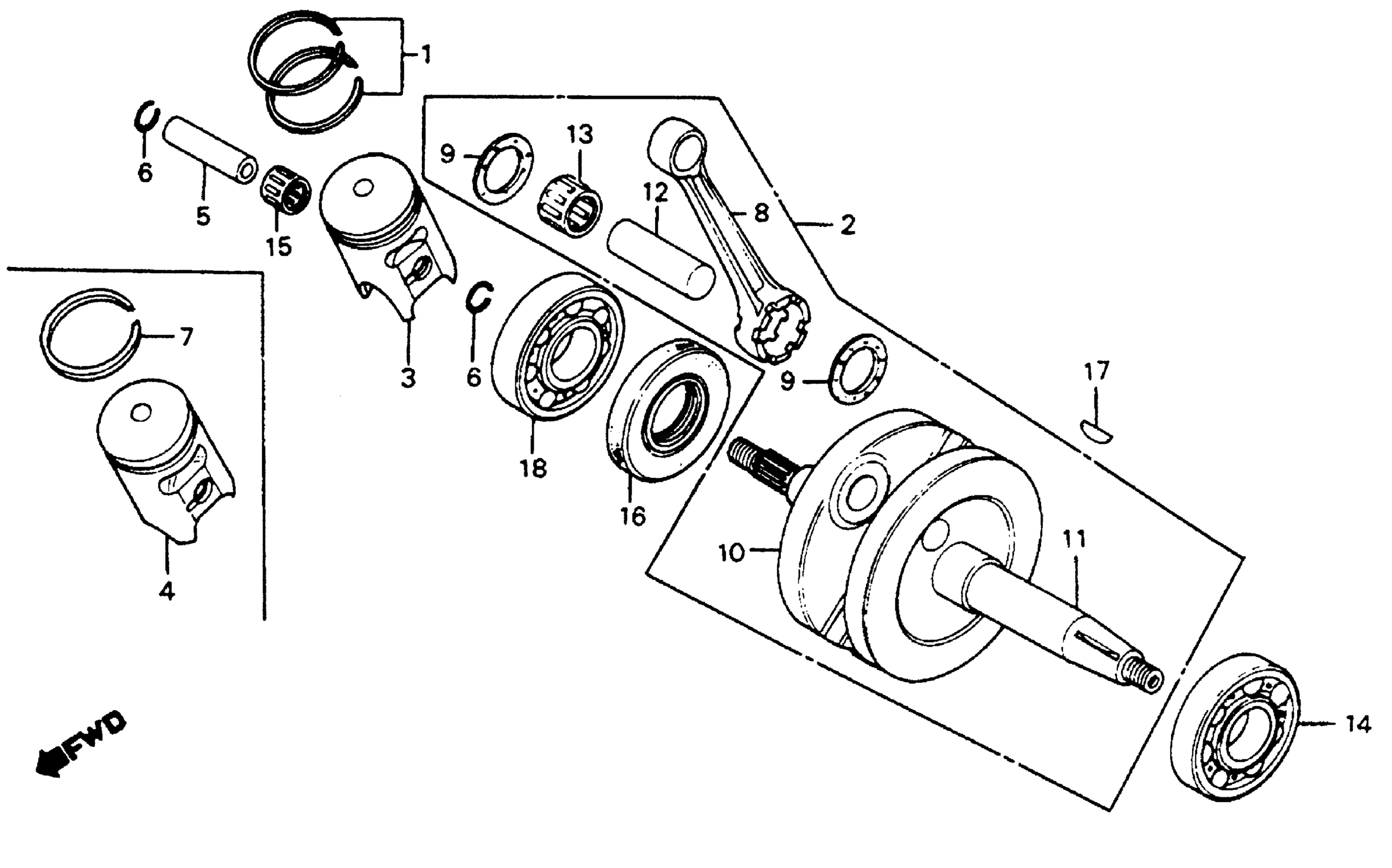

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 CRANKSHAFT + PISTON 80-82 Diagram

#

Description
Price

2

CRANKSHAFT This part replaces 13000-169-000.

13000-169-670

Unavailable

2

CRANKSHAFT

13000-169-670

Unavailable

4

PISTON (STD) (ART) (NOT AVAILABLE)

13101-169-003

Unavailable

4

PISTON (OS 0.25) | (Optional).

13102-169-000

Unavailable

4

PISTON (OS 0.50) | (Optional).

13103-169-000

Unavailable

5

PIN, PISTON This part replaces 13111-GC4-730.

13111-GJ1-610

$9.46

5

PIN, PISTON This part replaces 13111-169-000.

13111-GJ1-610

$9.46

5

PIN, PISTON

13111-GJ1-610

$9.46

5

PIN, PISTON This part replaces 13111-169-670.

13111-GJ1-610

$9.46

6

CLIP, PISTON PIN (12MM)

13115-156-000

$2.92

7

RING, PISTON (STD) (TEIKOKU) (NOT AVAILABLE) This part replaces 13121-169-004.

13121-169-005

Unavailable

7

RING, PISTON (STD) (TEIKOKU) (NOT AVAILABLE)

13121-169-005

Unavailable

7

RING, PISTON (OS 0.25) (TEIKOKU) | (Optional). This part replaces 13131-169-004.

13131-169-005

Unavailable

7

RING, PISTON (OS 0.25) (TEIKOKU) | (Optional).

13131-169-005

Unavailable

7

RING, PISTON (OS 0.50) (TEIKOKU) | (Optional). This part replaces 13141-169-004.

13141-169-005

$26.16

7

RING, PISTON (OS 0.50) (TEIKOKU) | (Optional).

13141-169-005

$26.16

8

ROD, CONNECTING (NOT AVAILABLE)

13201-169-300

Unavailable

9

PLATE, CONNECTING ROD SIDE

13202-169-003

Unavailable

10

CRANKSHAFT, R.

13311-169-300

Unavailable

11

CRANKSHAFT, L. (NOT AVAILABLE)

13321-169-300

Unavailable

12

PIN, CRANK (NOT AVAILABLE) This part replaces 13381-169-300.

13381-169-670

Unavailable

12

PIN, CRANK (NOT AVAILABLE)

13381-169-670

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91001-169-004.

91001-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91001-169-008.

91001-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91002-169-004.

91002-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91002-169-008.

91002-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-169-004.

91003-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-169-008.

91003-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91001-GC4-700.

91001-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END

91001-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91001-169-670.

91001-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91002-GC4-700.

91002-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END

91002-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END This part replaces 91002-169-670.

91002-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-GC4-700.

91003-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE)

91003-GC4-701

Unavailable

13

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-169-670.

91003-GC4-701

Unavailable

14

BEARING, RADIAL BALL (6222) This part replaces 91005-166-010.

91005-166-023

Unavailable

14

BEARING, RADIAL BALL (6222) This part replaces 91005-166-003.

91005-166-023

Unavailable

14

BEARING, RADIAL BALL (6222) This part replaces 91005-166-013.

91005-166-023

Unavailable

14

BEARING, RADIAL BALL (6222)

91005-166-023

Unavailable

15

BEARING, CONNECTING ROD SMALL END (TOMUSON)

91102-GC8-004

$14.67

15

BEARING, CONNECTING ROD SMALL END (TOMUSON) This part replaces 91102-156-004.

91102-GC8-004

$14.67

16

OIL SEAL (28X56X8)

91201-KE6-831

Unavailable

16

OIL SEAL (28X56X8) This part replaces 91206-166-004.

91201-KE6-831

Unavailable

16

OIL SEAL (28X56X8) This part replaces 91206-166-015.

91201-KE6-831

Unavailable

17

KEY, WOODRUFF (25X14)

94401-25140

$1.75

18

BEARING, RADIAL BALL (6204)

96100-62043-00

$13.11
