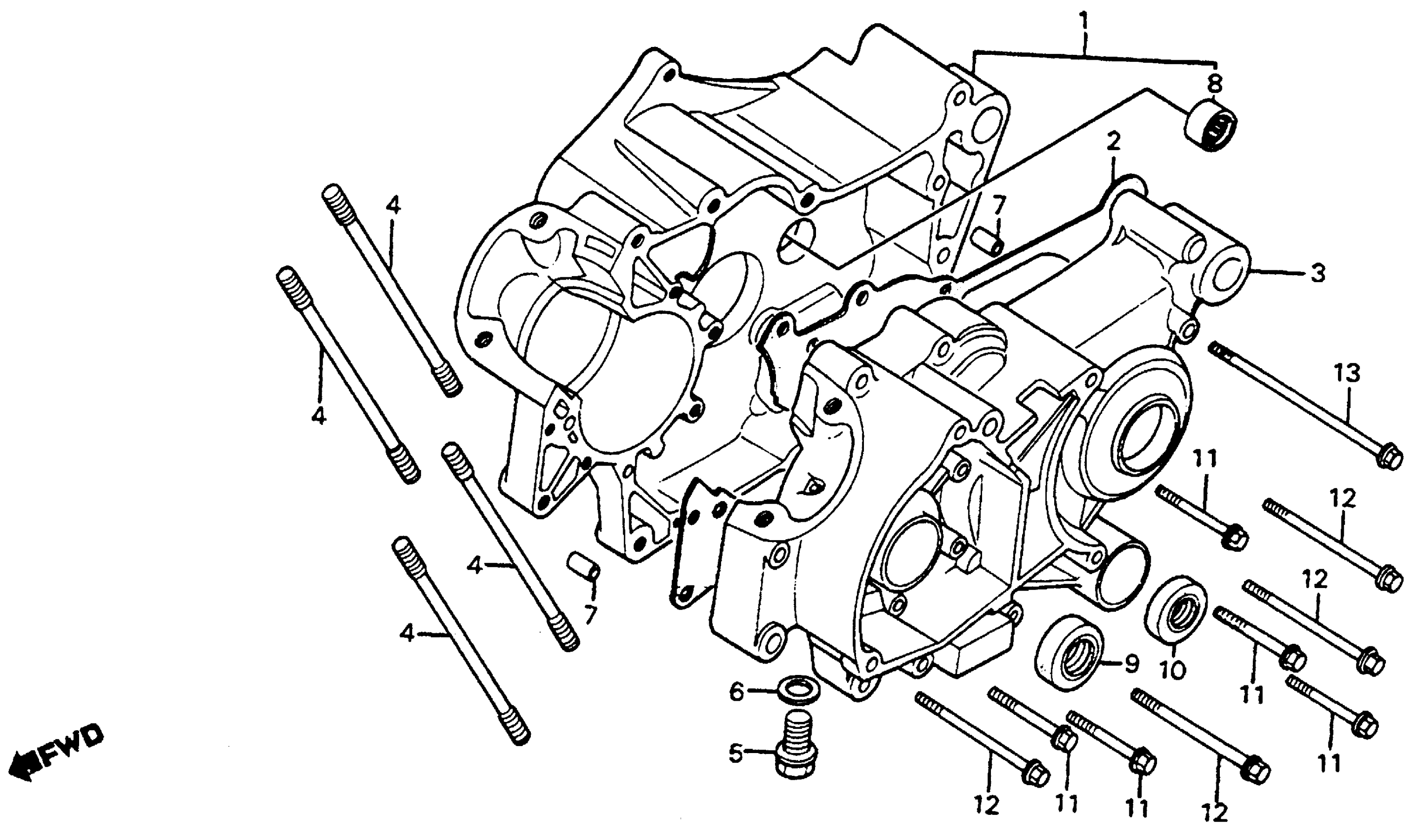

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 CRANKCASE 80-81 Diagram

CRANKCASE, R.

11101-169-000

Unavailable

GASKET, CRANKCASE This part replaces 11191-169-000.

11191-169-306

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11201-169-000

Unavailable

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-169-000

Unavailable

BOLT, DRAIN PLUG (12MM) (NOT AVAILABLE)

90041-166-000

Unavailable

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

BEARING, NEEDLE (15MM)

91106-383-003

$32.07

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

OIL SEAL (12X22X7) (ARAI)

91209-612-003

$9.83

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

BOLT, FLANGE (6X110) This part replaces 96000-06110-00.

96001-06110-00

$3.80

BOLT, FLANGE (6X110)

96001-06110-00

$3.80
