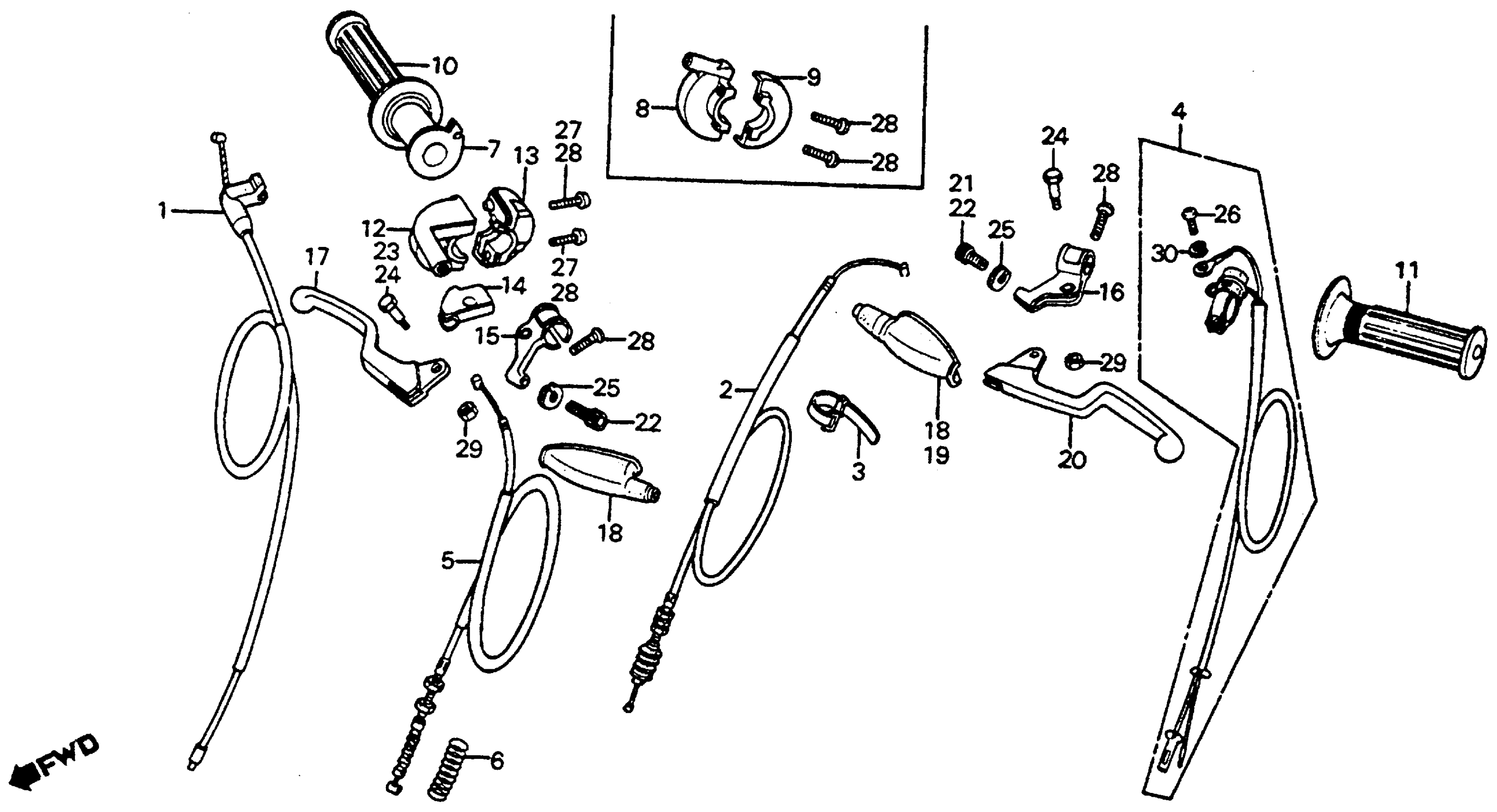

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-169-000.

17910-355-000

Unavailable

1

CABLE, THROTTLE

17910-355-000

Unavailable

2

CABLE, CLUTCH This part replaces 22870-169-000.

22870-GC4-P00

Unavailable

2

CABLE, CLUTCH

22870-GC4-P00

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP This part replaces 35130-169-000.

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP This part replaces 35130-467-000.

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP This part replaces 35130-KA4-000.

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

4

SWITCH ASSY., STOP This part replaces 35130-444-000.

35130-KZ3-860

$44.30

5

CABLE, FR. BRAKE

45450-169-000

Unavailable

6

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

7

PIPE, THROTTLE GRIP This part replaces 53141-437-000.

53141-437-010

Unavailable

7

PIPE, THROTTLE GRIP

53141-437-010

Unavailable

8

CASE (UPPER)

53143-355-000

Unavailable

9

CASE (LOWER)

53144-355-000

Unavailable

10

GRIP, R. HANDLEBAR

53165-116-670

$12.17

11

GRIP, L. HANDLEBAR

53166-116-670

$12.19

15

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-357-000

Unavailable

16

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-357-000

Unavailable

17

LEVER, R. HANDLEBAR This part replaces 53175-149-000.

53175-116-690

$16.94

17

LEVER, R. HANDLEBAR This part replaces 53175-169-000.

53175-116-690

$16.94

18

COVER, R. HANDLEBAR This part replaces 53176-430-000.

53176-428-010

$10.00

18

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

20

CONTROL LEVER, L. HANDLEBAR

53178-149-000

Unavailable

20

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-169-000.

53178-149-000

Unavailable

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

24

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

25

NUT, FIXING

90321-315-670

$7.31

25

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

26

SCREW, PAN (4X12)

93500-04012-0A

$1.49

26

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

WASHER, SPRING (4MM)

94111-04000

$1.49
