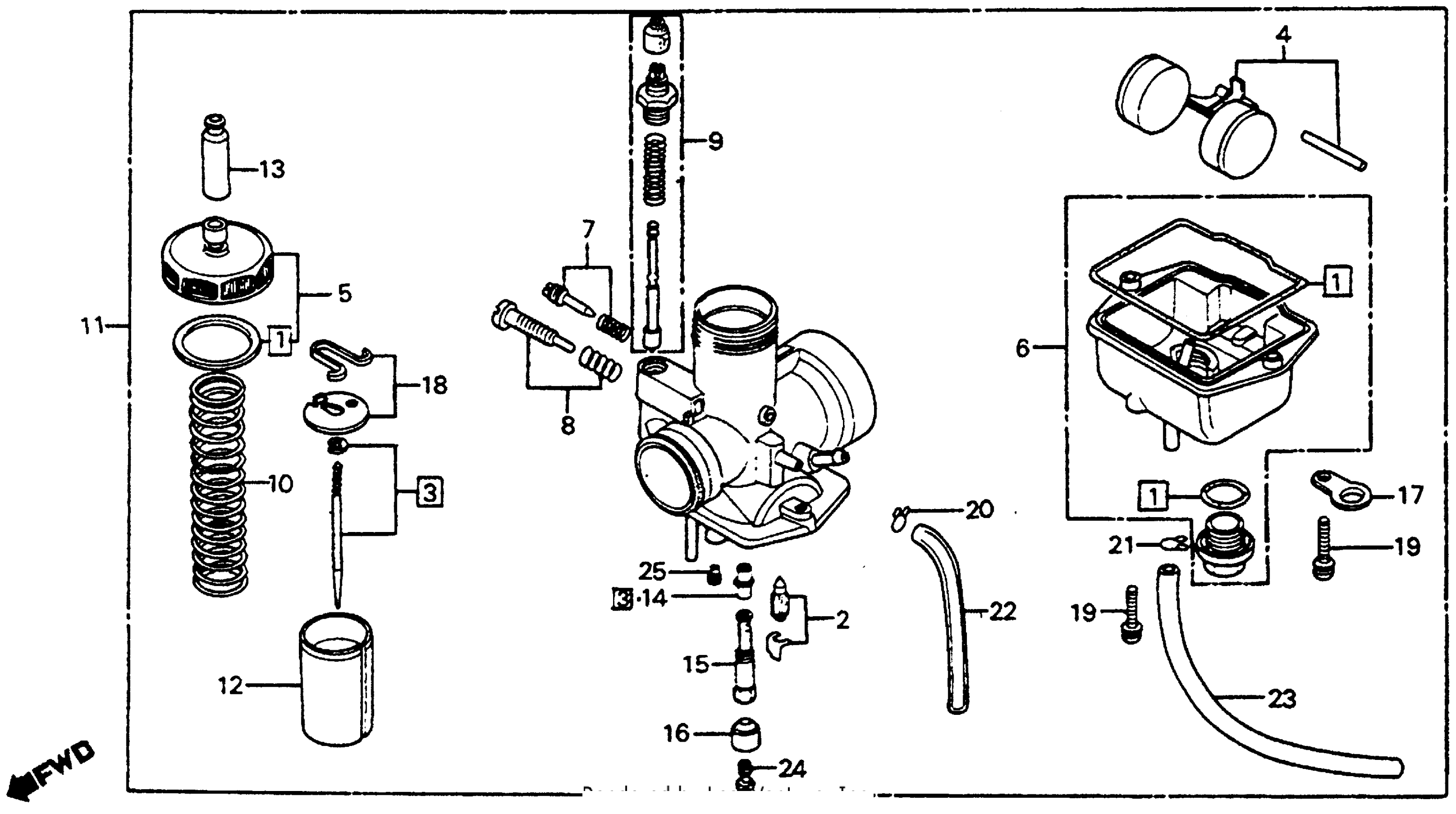

Honda CR80RA (80) ELSINORE, JPN, VIN# HE02-5000020 TO HE02-5014611 CARBURETOR 80-82 Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-169-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-169-004.

16011-GBF-B41

$36.72

3

NEEDLE SET, JET (36E) (NOT AVAILABLE) This part replaces 16012-169-014.

16012-169-004

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-169-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-169-014

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-169-004

Unavailable

7

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

8

SCREW SET B

16028-402-701

Unavailable

9

VALVE SET, STARTER (NOT AVAILABLE)

16046-169-004

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-169-004

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-169-014

Unavailable

12

VALVE, THROTTLE (NOT AVAILABLE)

16111-169-004

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

NEEDLE, JET

16164-169-004

Unavailable

15

HOLDER, NEEDLE JET

16165-169-004

Unavailable

16

HOLDER, JET (NOT AVAILABLE)

16168-169-004

Unavailable

17

BINDER

16179-428-671

Unavailable

18

PLATE SET (NOT AVAILABLE)

16212-169-004

Unavailable

19

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

CLIP, TUBE (B8)

95002-02080

$1.80

22

BULK HOSE, VINYL (4X7X8000) (4X7X100)

95003-07008-60M

$24.47

22

BULK HOSE, VINYL (4X7X8000) (4X7X100)

95003-07008-60M

$24.47

23

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X300)

95003-09001-60M

$3.45

24

JET, MAIN (#148) This part replaces 99101-GHB-1480.

99102-MCG-1480

Unavailable

24

JET, MAIN (#148) This part replaces 99101-393-1480.

99102-MCG-1480

Unavailable

25

JET, SLOW (#45) (NOT AVAILABLE) JET, AIR (#50) | (Optional).

99164-601-0450

Unavailable

25

JET, AIR (#50) (NOT AVAILABLE) JET, SLOW (#55)

99164-601-0500

Unavailable

25

JET, SLOW (#55) | (Optional).

99164-601-0550

Unavailable
