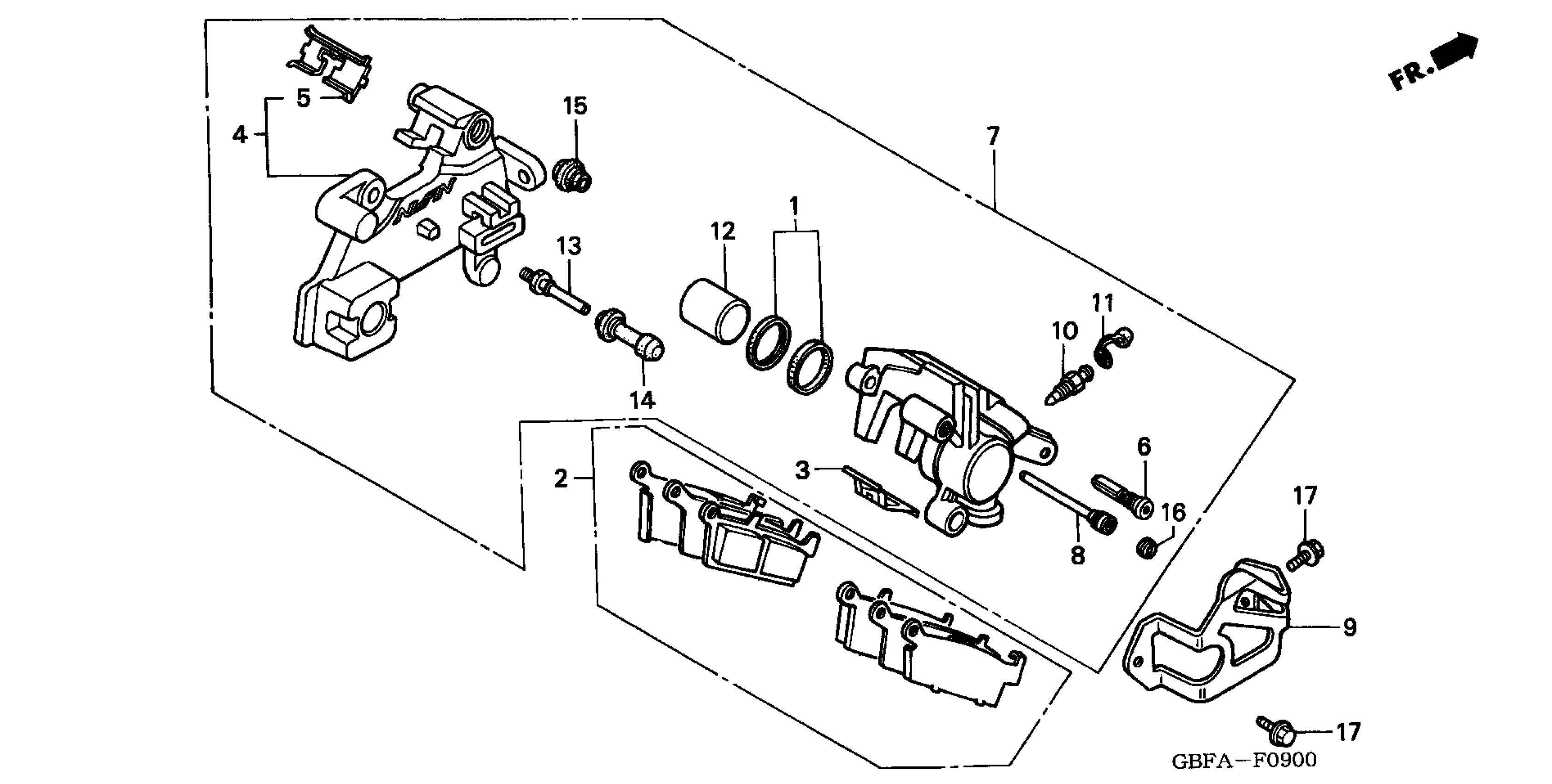

Honda CR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE04C-2K900001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$38.49

SPRING, PAD

43108-MY6-671

$5.28

BRACKET, RR. (NISSIN)

43110-GS2-601

Unavailable

RETAINER

43112-GT4-006

$7.05

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. BRAKE

43150-GS2-305

Unavailable

PIN, HANGER

43215-ML3-911

$11.69

GUARD, RR. CALIPER

43340-KS6-831

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MN4-016

$35.53

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
