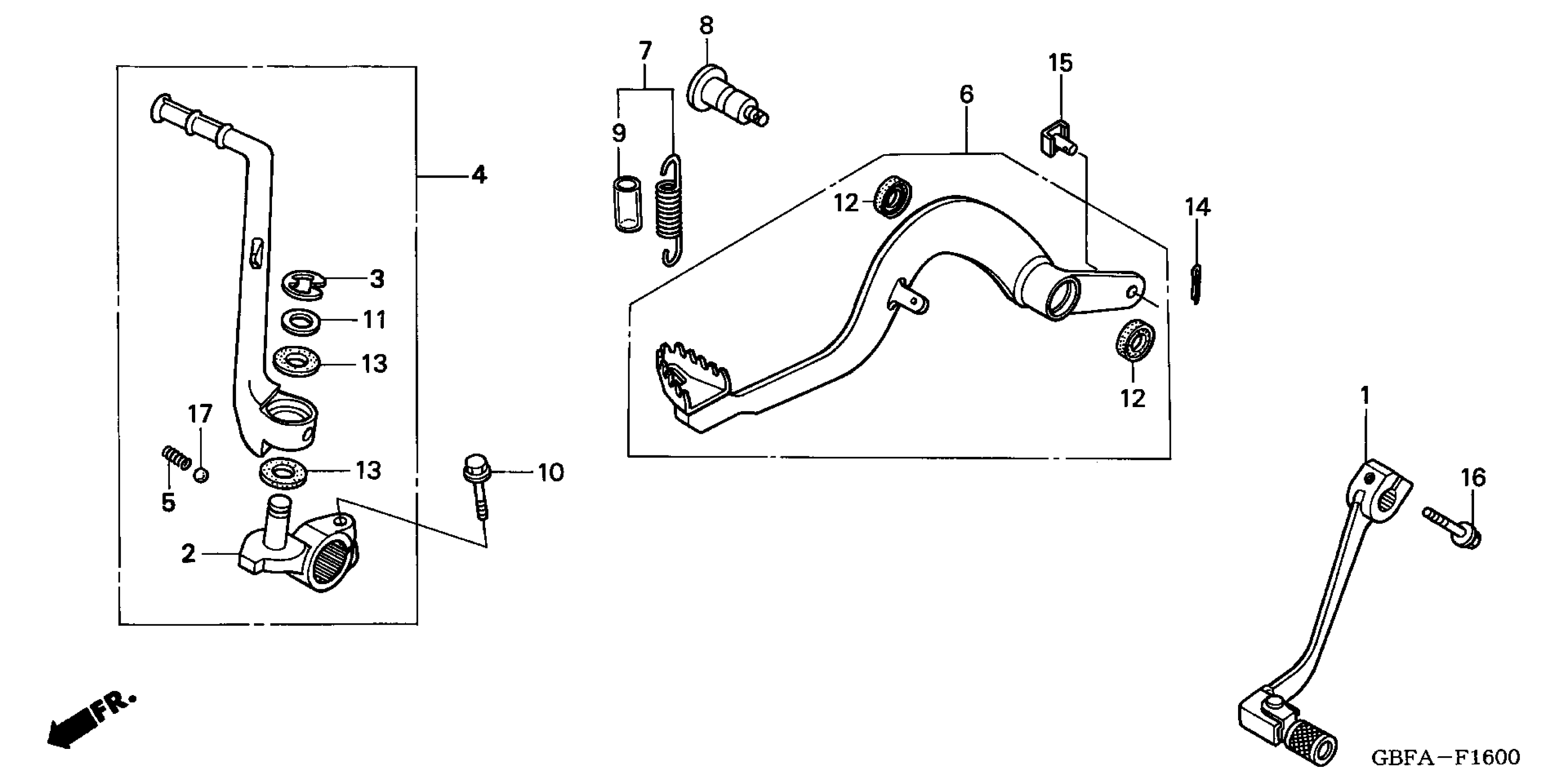

Honda CR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE04C-2K900001 PEDAL Diagram

PEDAL, GEARSHIFT

24700-GBF-830

$52.31

JOINT, KICK ARM

28241-GBF-J20

Unavailable

CLIP, KICK STARTER ARM

28293-333-000

$2.67

ARM ASSY., KICK STARTER

28300-GBF-J20

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

PEDAL, BRAKE

46510-GBF-J00

Unavailable

SPRING ASSY., BRAKE PEDAL

46512-GBF-830

Unavailable

SHAFT, BRAKE PIVOT

46513-MAC-680

$22.26

TUBE, BRAKE PEDAL SPRING

46515-KW3-000

Unavailable

BOLT, FLANGE (6X22)

90112-GBF-830

$4.35

WASHER, SPECIAL

90451-168-000

Unavailable

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST SEAL (13X19)

91303-GC4-831

Unavailable

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
