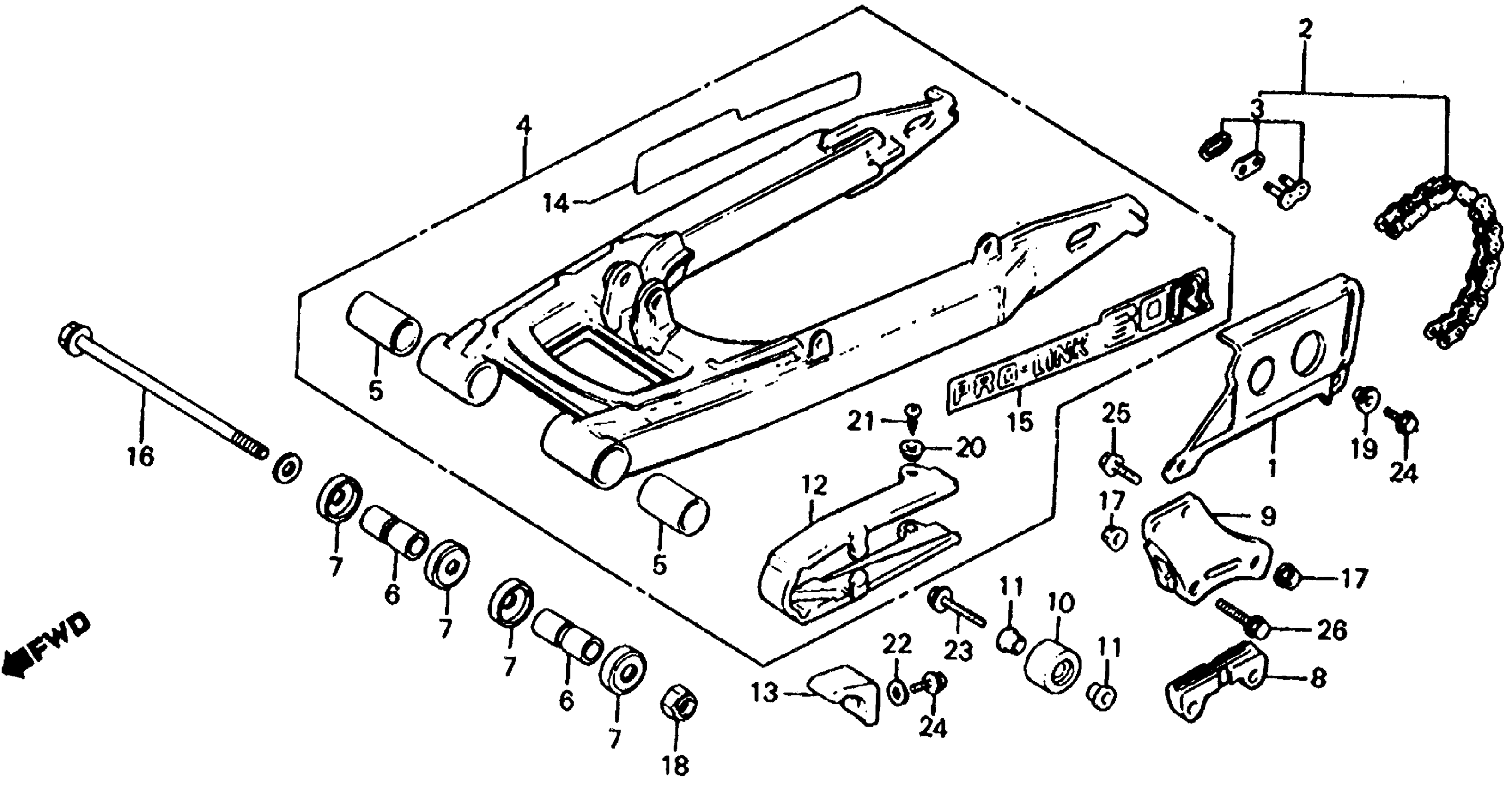

Honda CR60RA (84) MOTORCYCLE, JPN, VIN# JH2DE010-EK100006 TO JH2DE010-EK103338 SWINGARM + DRIVE CHAIN Diagram

#

Description
Price

1

GUARD, CHAIN (NOT AVAILABLE)

40510-GF5-000

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-013.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-015.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional).

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional).

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-811.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-812.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GT9-005.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GT9-005.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-166-612.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-003.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-GF5-005.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-166-003.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE | (Optional). This part replaces 40530-166-005.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-180-003.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-180-005.

405W3-GT9-505

Unavailable

3

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

3

MASTER LINK (DAIDO)

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

4

SWINGARM ASSY., RR.

52100-GF5-731

Unavailable

5

BUSH, SWINGARM PIVOT

52108-GC4-003

Unavailable

6

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52141-GF5-000

Unavailable

7

DUST SEAL (31X38.5X7)

52144-GF5-003

$10.43

8

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-GC4-730

Unavailable

9

GUIDE, CHAIN

52156-GC4-700

Unavailable

10

ROLLER, CHAIN

52158-GC4-700

Unavailable

11

COLLAR, CHAIN ROLLER (NOT AVAILABLE)

52159-GC4-000

Unavailable

12

SLIDER, CHAIN (NOT AVAILABLE)

52170-GF5-730

Unavailable

13

SLIDER ASSY., CHAIN (LOWER) This part replaces 52175-GC4-700.

52185-GN1-000

$19.54

13

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$19.54

14

EMBLEM, R. RR. SWINGARM (NOT AVAILABLE)

87121-GF5-730

Unavailable

15

EMBLEM, L. RR. SWINGARM (NOT AVAILABLE)

87122-GF5-730

Unavailable

16

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-GF5-000

Unavailable

17

NUT, U (6MM) This part replaces 90301-MC7-003.

90301-473-003

$4.07

17

NUT, U (6MM)

90301-473-003

$4.07

17

NUT, U (6MM) This part replaces 90301-473-013.

90301-473-003

$4.07

18

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

19

WASHER, RR. COVER

90506-425-000

$2.89

20

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

21

SCREW, TAPPING (5X12)

93901-25210

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

BOLT, FLANGE (8X28) This part replaces 90184-GC4-730.

96400-08028-00

$1.85

23

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

24

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

24

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

25

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

25

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

26

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

26

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
