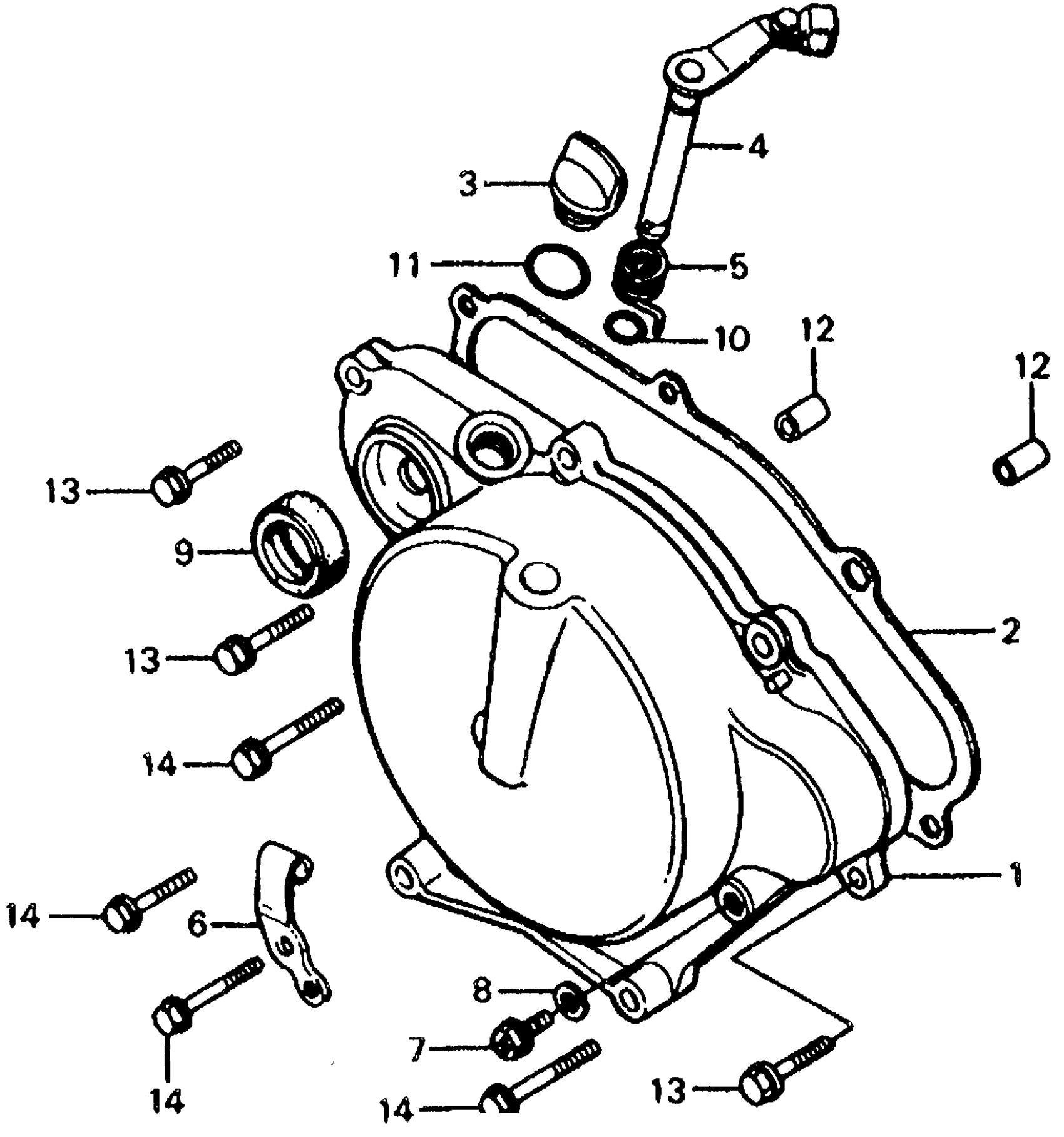

Honda CR60RA (84) MOTORCYCLE, JPN, VIN# JH2DE010-EK100006 TO JH2DE010-EK103338 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11331-GF5-406

Unavailable

COVER, R. CRANKCASE This part replaces 11331-GF5-730.

11331-GF5-406

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11393-GF5-000.

11393-GF5-306

Unavailable

GASKET, R. CRANKCASE COVER

11393-GF5-306

Unavailable

CAP, OIL FILLER

15611-KA3-710

$12.13

LEVER, CLUTCH (NOT AVAILABLE)

22810-GC4-700

Unavailable

SPRING, CLUTCH LEVER

22815-166-000

$3.13

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

22821-GC4-700

Unavailable

BOLT, OIL CHECK

90037-360-000

$3.04

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

OIL SEAL (15X25X6)

91211-671-003

$6.34

O-RING (8.8X1.9)

91302-GE0-000

$3.00

O-RING (8.8X1.9) This part replaces 91303-719-000.

91302-GE0-000

$3.00

O-RING (8.8X1.9) This part replaces 91308-PH9-000.

91302-GE0-000

$3.00

O-RING (11.9X2.2)

91370-461-000

$2.17

PIN A, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
