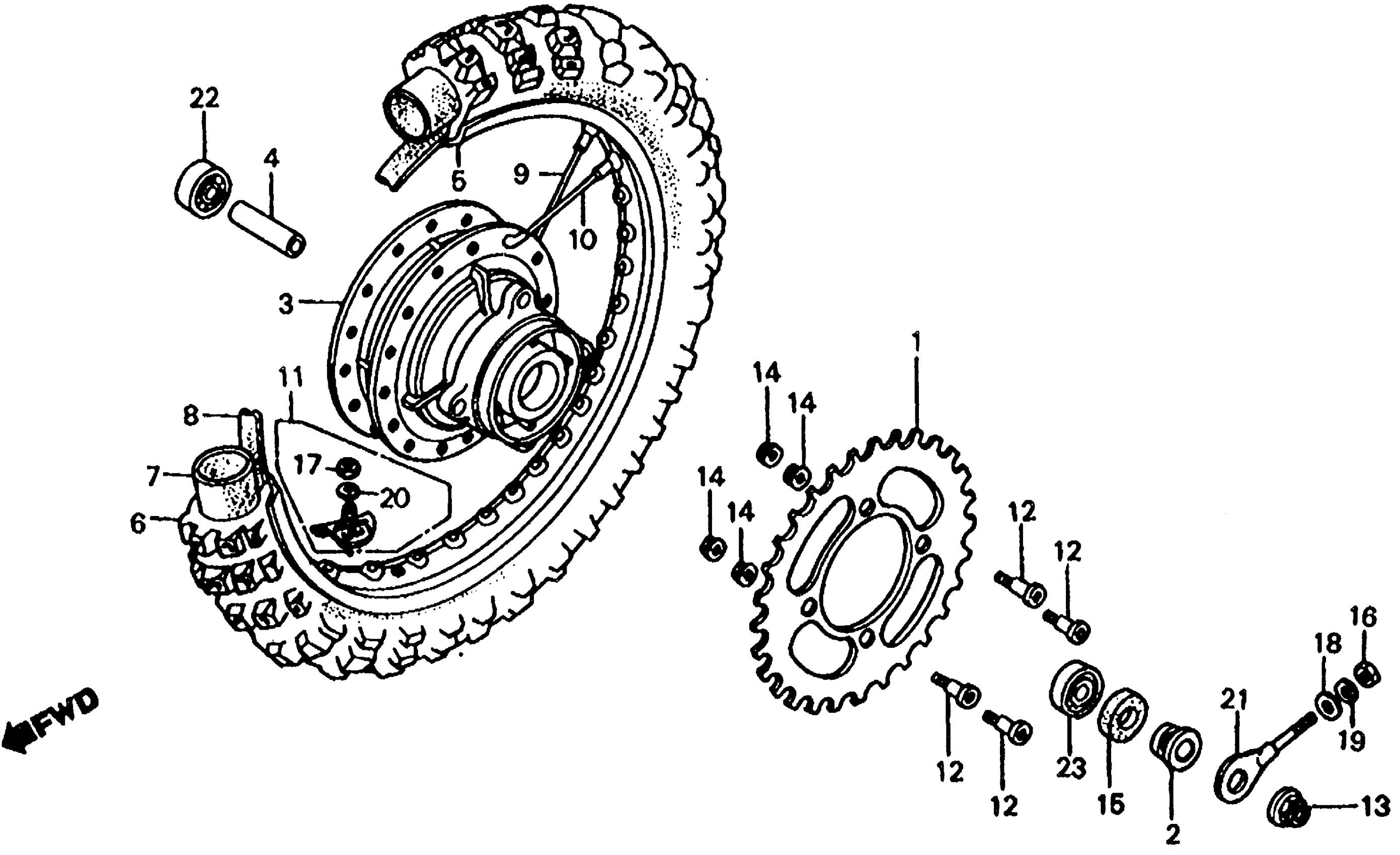

Honda CR60RA (84) MOTORCYCLE, JPN, VIN# JH2DE010-EK100006 TO JH2DE010-EK103338 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET FINAL DR | (Optional). This part replaces 41201-GF5-750.

41201-GF5-505

Unavailable

1

SPROCKET, FINAL (45T) (NOT AVAILABLE)

41201-GF5-730

Unavailable

1

SPROCKET, FINAL (43T) (NOT AVAILABLE) | (Optional).

41202-GF5-730

Unavailable

2

COLLAR, RR. WHEEL SIDE

42311-GC4-000

$14.79

3

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-GF5-730ZA

Unavailable

4

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$14.76

5

RIM, RR. WHEEL (NOT AVAILABLE)

42701-GF5-003

Unavailable

6

TIRE, RR. (3.00-12) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 42711-GF5-731.

42711-GF5-005

Unavailable

7

TUBE, TIRE (275/300-12) (INOUE)

42712-GF5-005

Unavailable

8

FLAP, TIRE (INOUE)

42713-GF5-005

Unavailable

9

SPOKE SET A, RR. WHEEL

428A0-GF5-000

Unavailable

10

SPOKE SET B, RR. WHEEL

428B0-GF5-000

Unavailable

11

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

12

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

13

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

15

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$5.05

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

ADJUSTER A, R. CHAIN

95014-10100

$5.54

22

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

23

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
