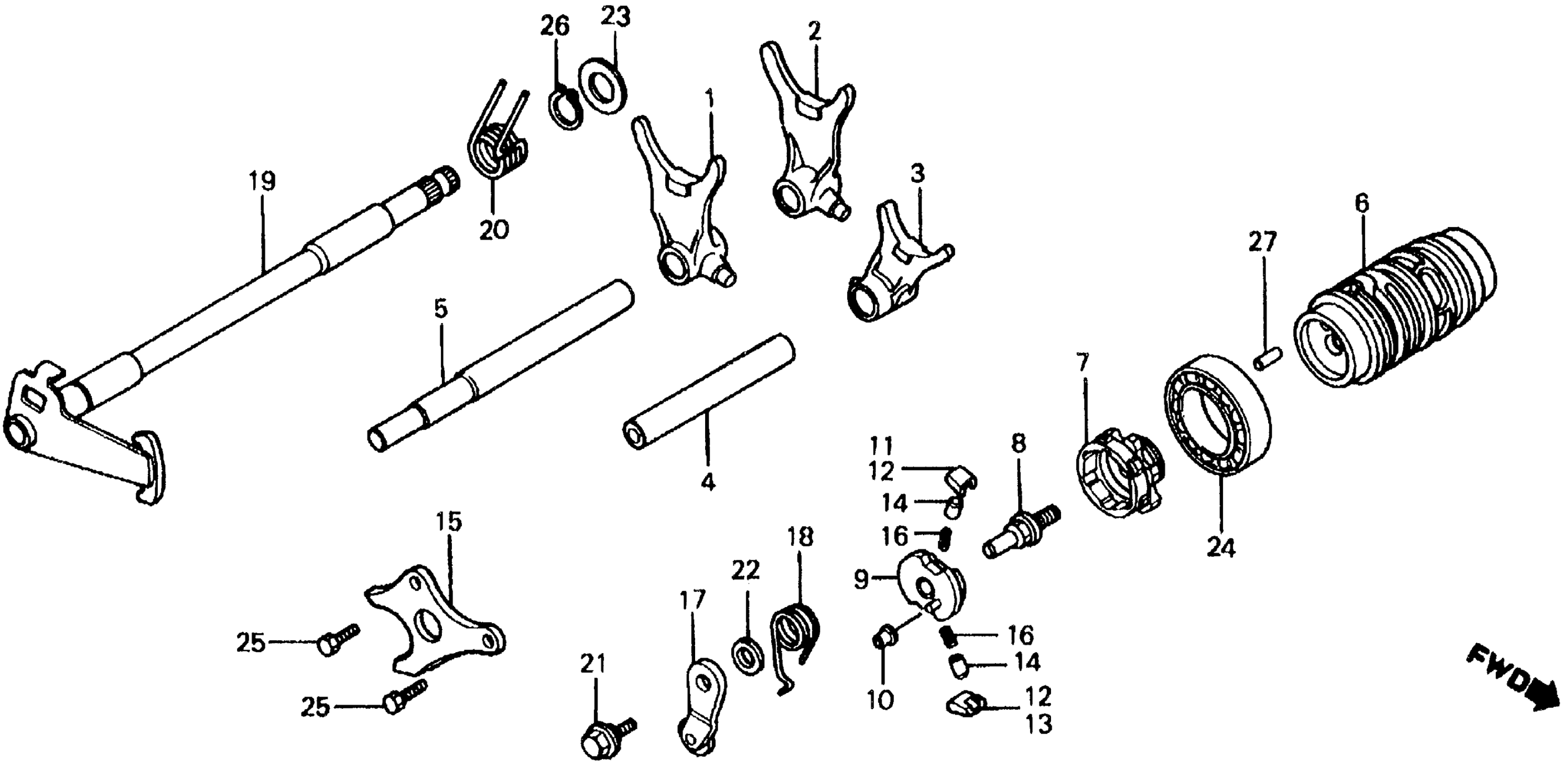

Honda CR60RA (84) MOTORCYCLE, JPN, VIN# JH2DE010-EK100006 TO JH2DE010-EK103338 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24210-GC4-700

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-GC4-700

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24230-GC4-700

Unavailable

4

MAINSHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-GC4-700

Unavailable

5

COUNTERSHAFT, GEARSHIFT FORK

24266-GC4-700

Unavailable

6

DRUM, GEARSHIFT

24301-GC4-730

Unavailable

7

CENTER, SHIFT DRUM

24312-KA3-741

$62.55

8

PIN, SHIFTER

24315-KA3-710

$19.14

9

SHIFTER, DRUM

24320-GC4-730

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.10

10

COLLAR, SHIFTER This part replaces 24322-KA3-740.

24322-HA0-000

$5.10

12

PAWL, RATCHET

24324-KA3-740

Unavailable

14

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$4.83

14

PLUNGER, PAWL

24326-360-010

$4.83

15

PLATE, GUIDE

24328-GC4-730

$17.83

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.67

17

STOPPER, DRUM

24430-KA3-740

$19.66

18

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

19

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-GC4-730

Unavailable

20

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.04

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.04

22

WASHER, DRUM STOPPER

90417-360-000

$1.58

23

WASHER B, THRUST (14MM)

90428-958-000

$4.33

24

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-GC4-730.

91004-GC4-731

$24.72

24

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$24.72

25

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

26

CIRCLIP (OUTER) (14MM)

94510-14000

$0.93

27

ROLLER (4X8)

96220-40080

$0.46
