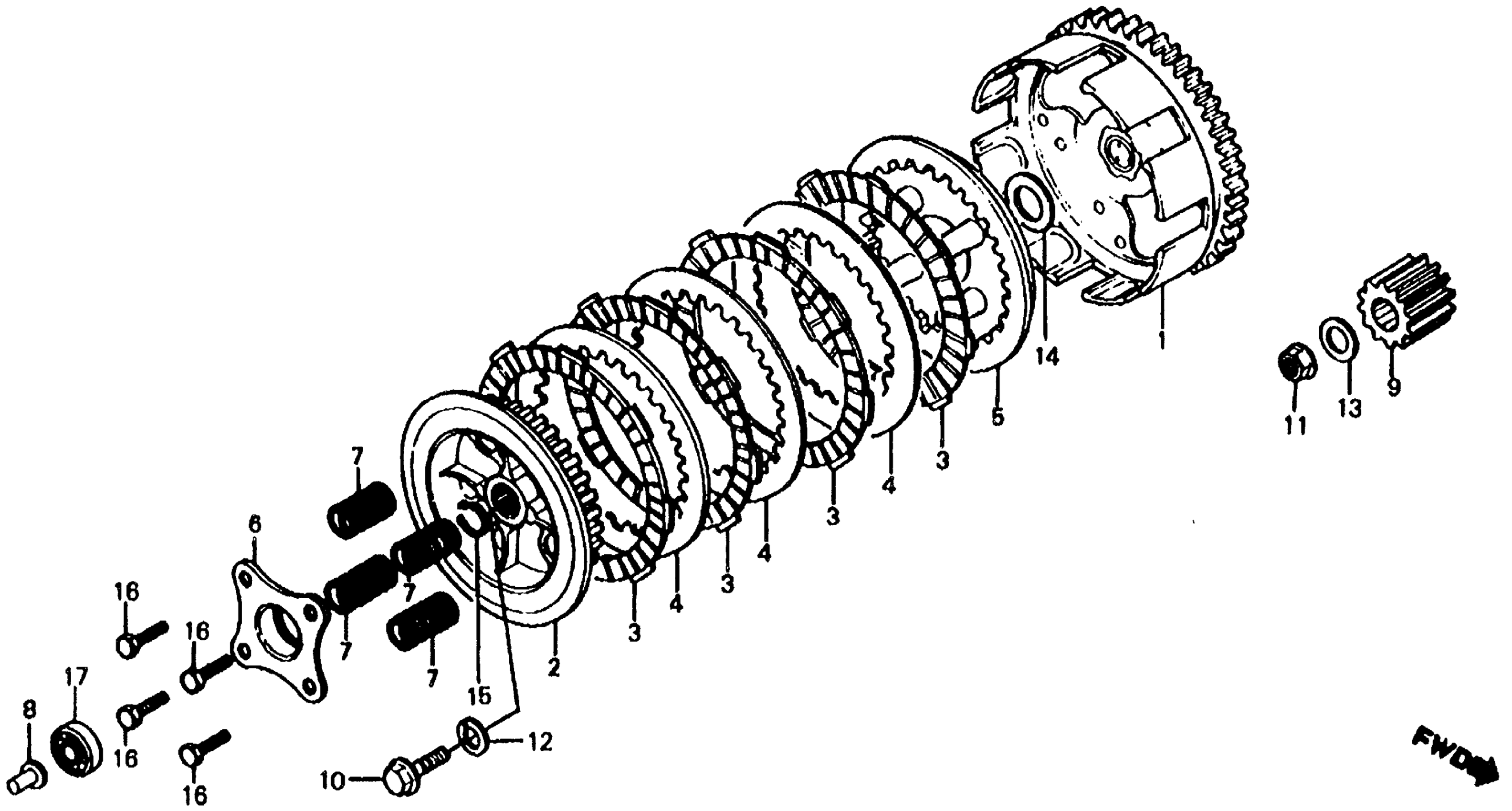

Honda CR60RA (84) MOTORCYCLE, JPN, VIN# JH2DE010-EK100006 TO JH2DE010-EK103338 CLUTCH Diagram

CLUTCH (OUTER)

22100-GF5-730

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22121-GF5-730

Unavailable

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$15.68

DISK, CLUTCH FRICTION

22201-166-000

$15.68

PLATE, CLUTCH

22311-KN4-680

$5.88

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$5.88

PLATE, CLUTCH PRESSURE

22350-115-020

$36.40

PLATE, CLUTCH LIFTER

22361-GF5-730

Unavailable

SPRING, CLUTCH

22401-166-000

$4.26

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22847-GF5-730

Unavailable

GEAR, PRIMARY DRIVE (17T)

23121-GE2-000

Unavailable

BOLT, HEX. (8X13)

90002-GC4-730

Unavailable

NUT, FLANGE (12MM) This part replaces 90231-397-000.

94050-12000

$0.94

NUT, FLANGE (12MM)

94050-12000

$0.94

WASHER, SPRING (8MM) (NOT AVAILABLE)

90403-GC4-730

Unavailable

WASHER, PLAIN (12MM) This part replaces 90440-166-000.

90440-GT4-970

$2.38

WASHER, PLAIN (17MM)

90401-GC4-730

Unavailable

BOLT, HEX. (6X25)

92025-06025-0A

$0.96

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
