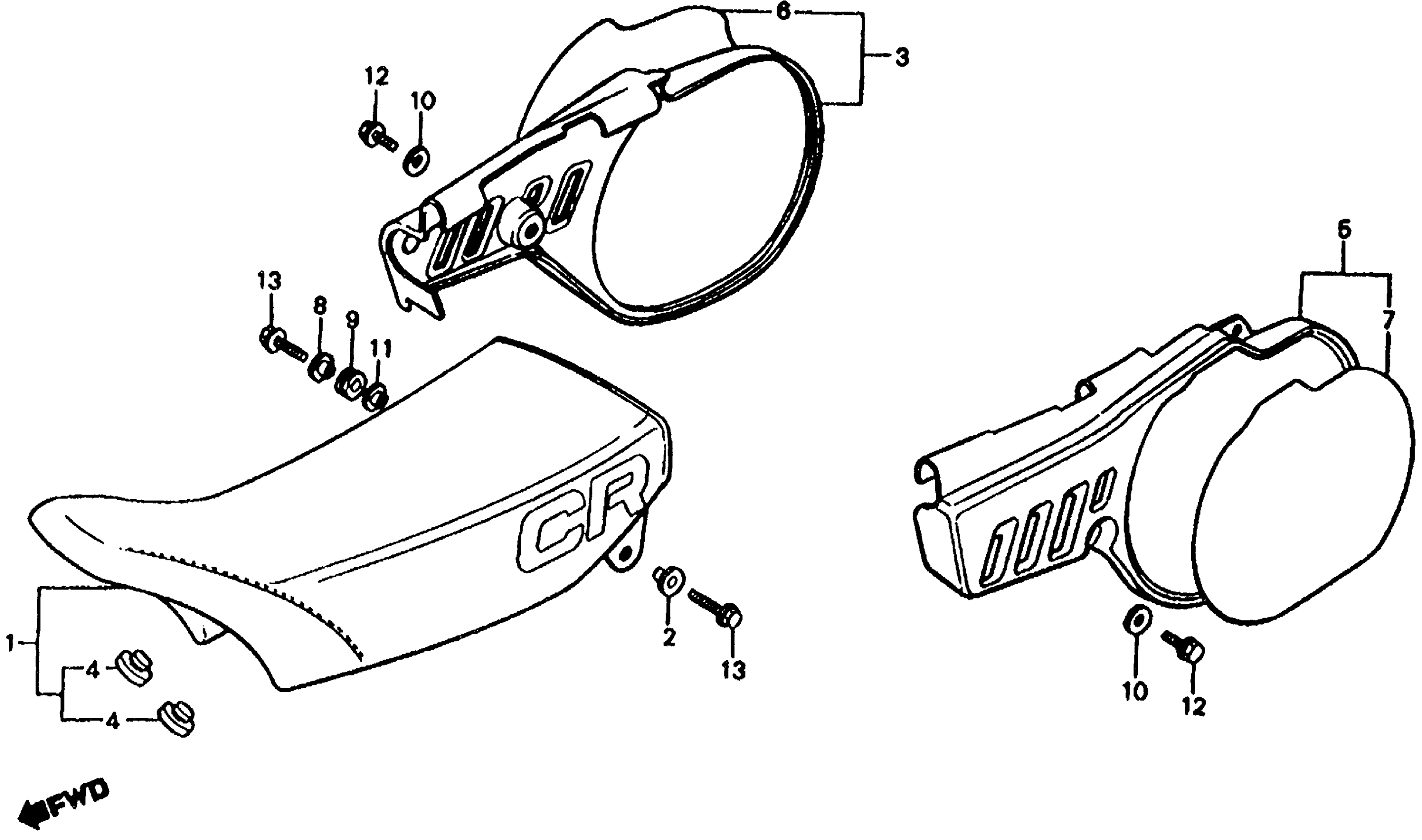

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 SEAT + SIDE COVER Diagram

SEAT COMP(NH1L) This part replaces 77100-GF5-000.

77100-GF5-405

Unavailable

COLLAR, SEAT SETTING

77103-GC4-000

$3.95

COVER SUB-ASSY., R. SIDE *R119* (FLASH RED) (NOT AVAILABLE)

83510-GC4-700ZA

Unavailable

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

COVER SUB-ASSY., L. SIDE *R119* (FLASH RED) (NOT AVAILABLE)

83610-GC4-700ZA

Unavailable

FILM, R. SIDE COVER (NOT AVAILABLE)

87505-GC4-700

Unavailable

FILM, L. SIDE COVER (NOT AVAILABLE)

87605-GC4-700

Unavailable

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

WASHER, SIDE COVER

90506-KA3-710

Unavailable

WASHER (6X20)

90512-300-000

$3.08

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
