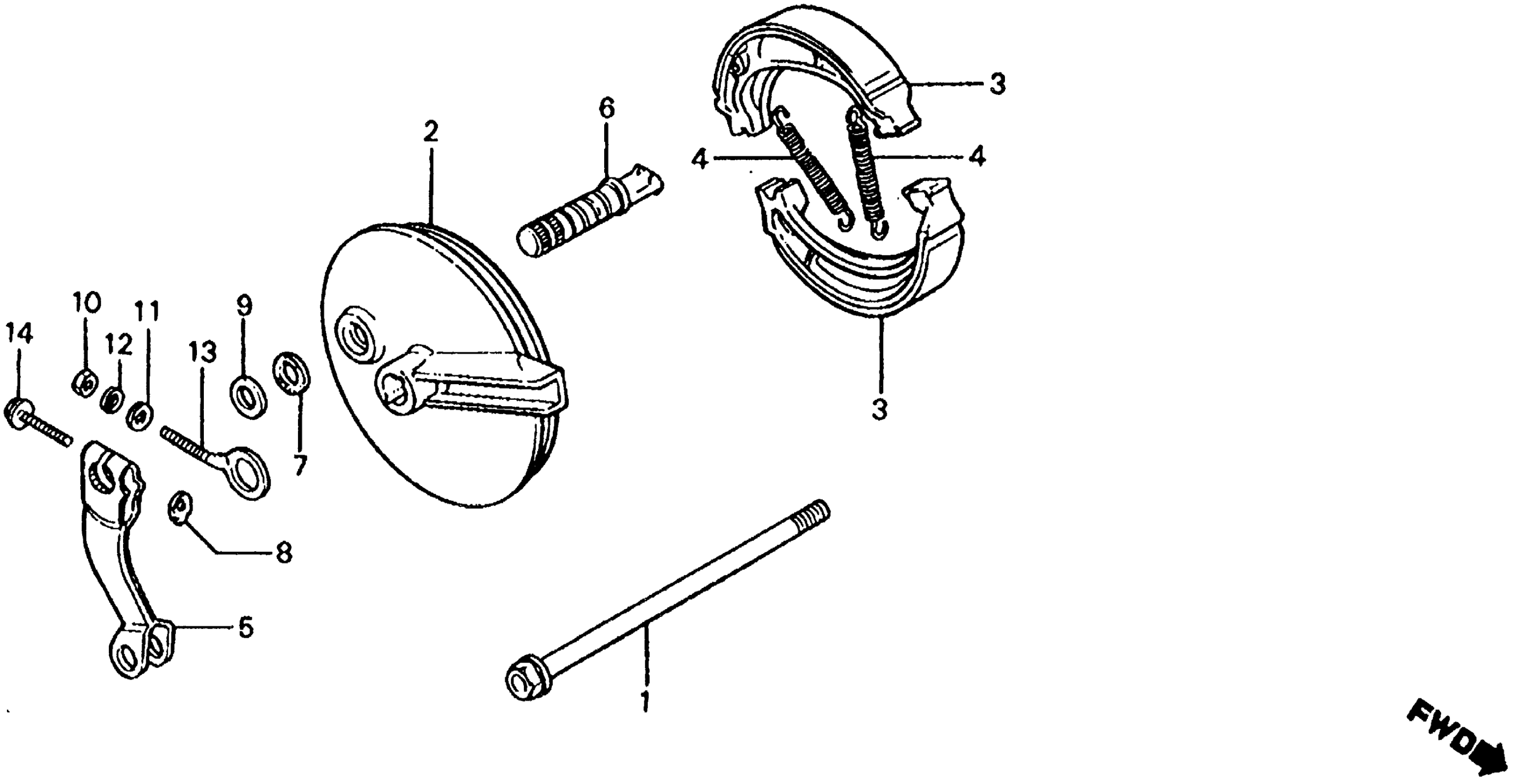

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE This part replaces 06430-GC4-405.

06450-KJ2-305

Unavailable

SHOE SET, BRAKE

06450-KJ2-305

Unavailable

SHOE SET, BRAKE This part replaces 431A2-GC4-005.

06450-KJ2-305

Unavailable

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-GF5-000

Unavailable

PANEL, RR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

43100-GC4-700ZA

Unavailable

SHOE, BRAKE (AKEBONO) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43120-GC4-005

Unavailable

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

ARM, RR. BRAKE (NOT AVAILABLE)

43410-GF5-000

Unavailable

CAM, FR. BRAKE

45131-GC4-700

Unavailable

DUST SEAL, BRAKE CAM

45134-GC4-701

$4.48

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

WASHER, BRAKE ARM

90525-GC4-700

$2.34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

ADJUSTER A, R. CHAIN

95014-10100

$5.54

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
