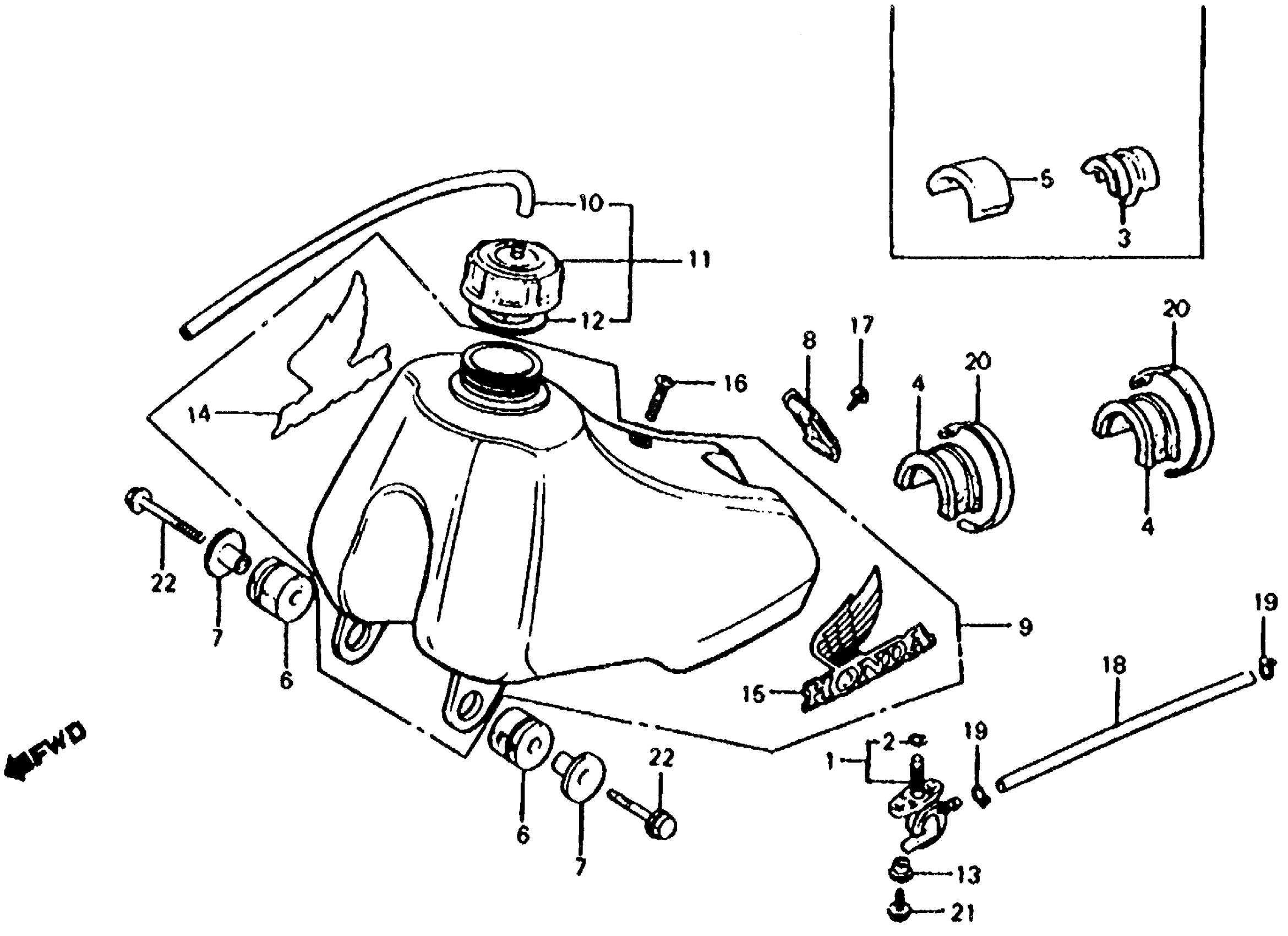

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-GC4-005.

16950-GS2-911

$35.22

1

PETCOCK ASSY. This part replaces 16950-GC4-731.

16950-GS2-911

$35.22

1

PETCOCK ASSY. This part replaces 16950-GC4-732.

16950-GS2-911

$35.22

1

PETCOCK ASSY.

16950-GS2-911

$35.22

2

O-RING (11.8X3.55)

16997-467-000

$2.01

3

RUBBER A, TANK SETTING

17504-GC4-700

Unavailable

5

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

6

RUBBER, FUEL TANK SETTING

17508-KA3-710

$7.97

7

COLLAR, FUEL TANK SETTING

17509-KA3-710

$9.94

8

BAND, RR. TANK

17516-GF5-000

$33.97

9

TANK SUB-ASSY., FUEL (NOT AVAILABLE)

17520-GF5-000

Unavailable

10

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

11

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17620-KA4-710

Unavailable

12

GASKET, FUEL TANK CAP

17624-KA4-000

$5.54

13

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

14

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87123-GF5-300

Unavailable

15

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87124-GF5-300

Unavailable

16

BOLT, SEAT SETTING (NOT AVAILABLE)

90110-GF5-000

Unavailable

17

SCREW, PAN (6X16)

93500-06016-0H

$0.86

18

BULK HOSE, FUEL (5.5X3000) (5.3X115)

95001-55003-60M

$42.48

19

CLIP, TUBE (B10)

95002-02100

$1.72

20

BAND A2, CABLE

95014-61200

Unavailable

21

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

21

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

22

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

22

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
