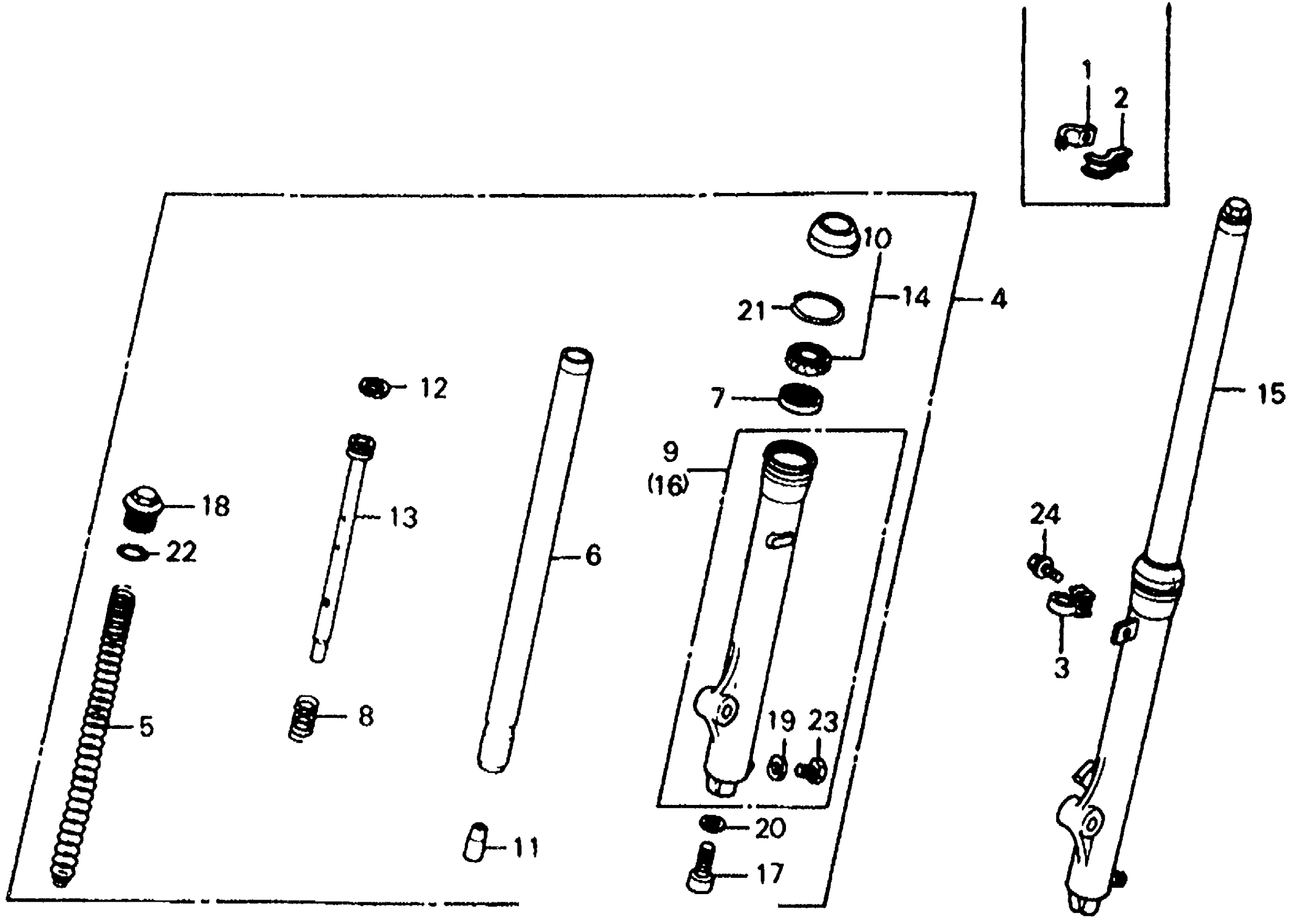

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45460-GC4-000

Unavailable

2

CLAMP B, FR. BRAKE CABLE (NOT AVAILABLE)

45461-GC4-000

Unavailable

4

FORK ASSY., R. FR.

51400-GF5-003

Unavailable

5

SPRING, FR. FORK

51401-GF5-003

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-GF5-003

Unavailable

8

SPRING, REBOUND

51412-383-721

$6.57

9

CASE, R. (LOWER)

51421-GF5-003

Unavailable

10

DUST SEAL, FR. FORK

51425-149-841

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-383-721

Unavailable

12

RING, PISTON

51437-GM0-003

$5.07

12

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

13

PIPE, SEAT

51470-GF5-003

Unavailable

14

SEAL SET, FR. FORK

51490-149-840

$32.63

15

SHOCK ABSORBER ASSY., L. FR.

51500-GF5-003

Unavailable

16

CASE, L. (LOWER)

51521-GF5-003

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

18

BOLT, FORK

90123-167-003

Unavailable

19

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

22

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

23

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
