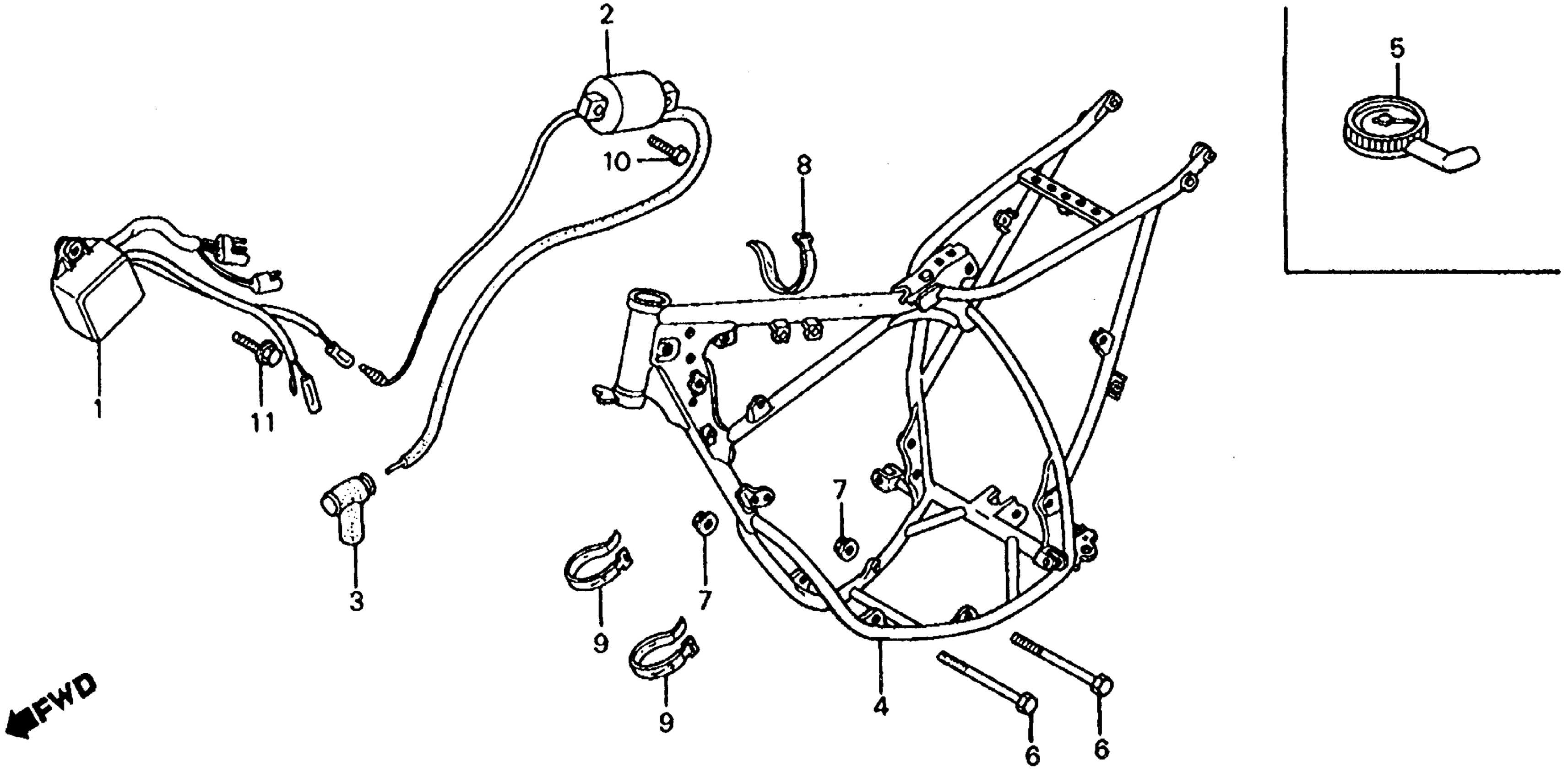

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 FRAME + IGNITION COIL 83 Diagram

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-GF5-003

Unavailable

COIL, IGNITION (NOT AVAILABLE)

30500-KA3-003

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

FRAME *R119* (FLASH RED)

50100-GF5-000ZA

Unavailable

GAUGE, AIR PRESSURE | (Optional).

89301-KA4-811

$76.25

BOLT, HEX. (8X85)

90157-437-000

Unavailable

NUT, FLANGE (8MM)

90309-428-731

$3.35

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A2, CABLE

95014-61200

$2.33

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
