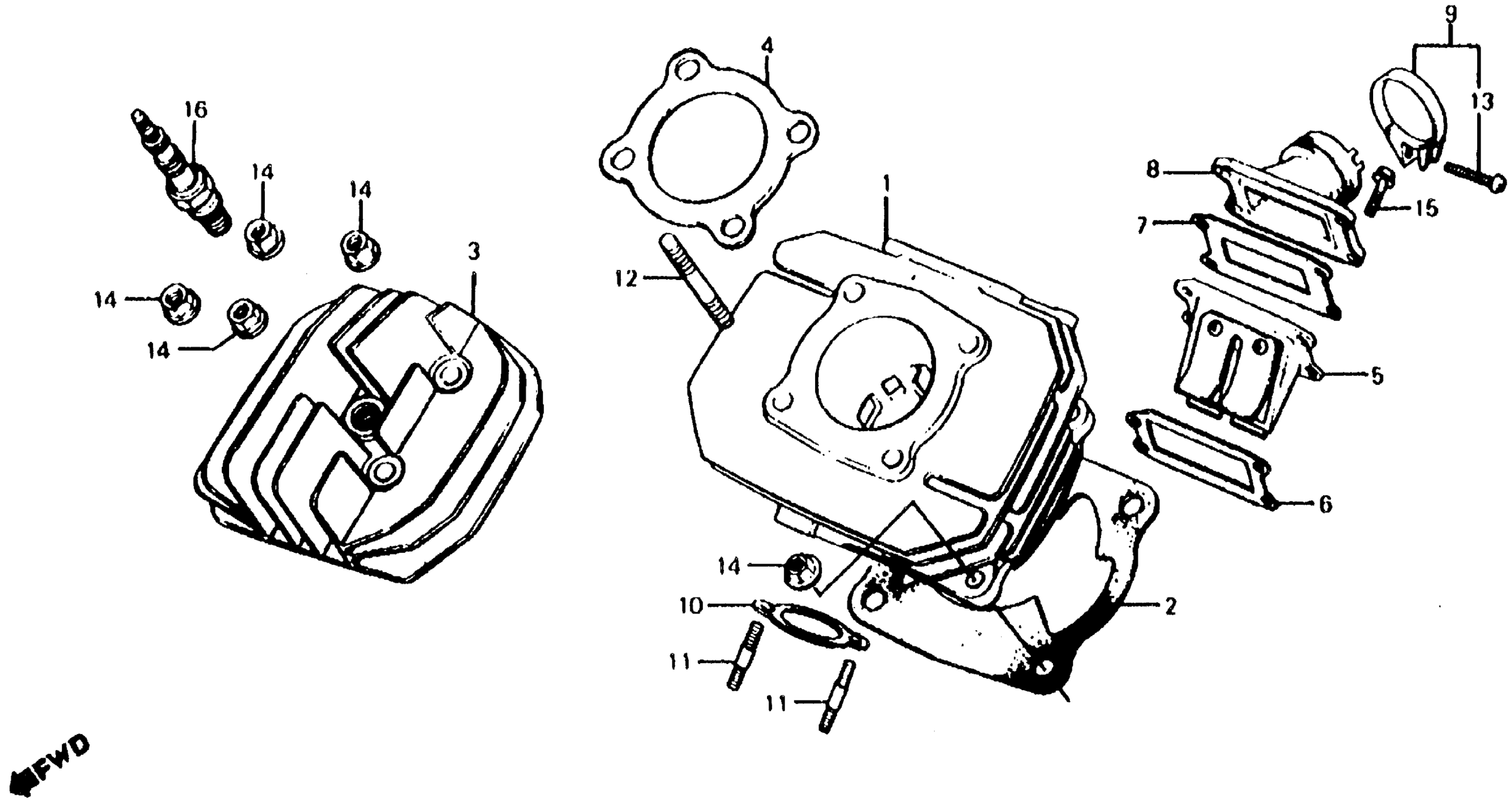

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12100-GF5-305

Unavailable

1

CYLINDER This part replaces 12100-GF5-670.

12100-GF5-305

Unavailable

2

GASKET, CYLINDER This part replaces 12191-GF5-000.

12191-GF5-306

Unavailable

2

GASKET, CYLINDER

12191-GF5-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-GF5-670

Unavailable

4

GASKET, CYLINDER HEAD

12251-GF5-670

Unavailable

5

VALVE, REED (NOT AVAILABLE)

14100-GC4-701

Unavailable

6

GASKET A, REED VALVE This part replaces 14132-GC4-000.

14132-GC4-306

Unavailable

6

GASKET A, REED VALVE

14132-GC4-306

Unavailable

7

GASKET B, REED VALVE This part replaces 14133-GC4-307.

14133-GC4-308

Unavailable

7

GASKET B, REED VALVE

14133-GC4-308

Unavailable

7

GASKET B, REED VALVE This part replaces 14133-GC4-700.

14133-GC4-308

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-GF5-000

Unavailable

9

BAND, CARBURETOR INSULATOR

17256-GF5-000

Unavailable

10

GASKET, EX. PIPE JOINT This part replaces 18291-GF5-000.

18291-GF5-306

Unavailable

10

GASKET, EX. PIPE JOINT

18291-GF5-306

Unavailable

11

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

12

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

12

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

12

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

12

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

12

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

12

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

13

SCREW, PAN (4X25)

93500-04025-0G

$1.49

14

NUT, FLANGE (8MM)

94050-08000

$1.49

15

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

15

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59867.

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59767.

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59816.

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK)

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59847-01.

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864.

98079-59847

$2.44

16

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864-00.

98079-59847

$2.44
