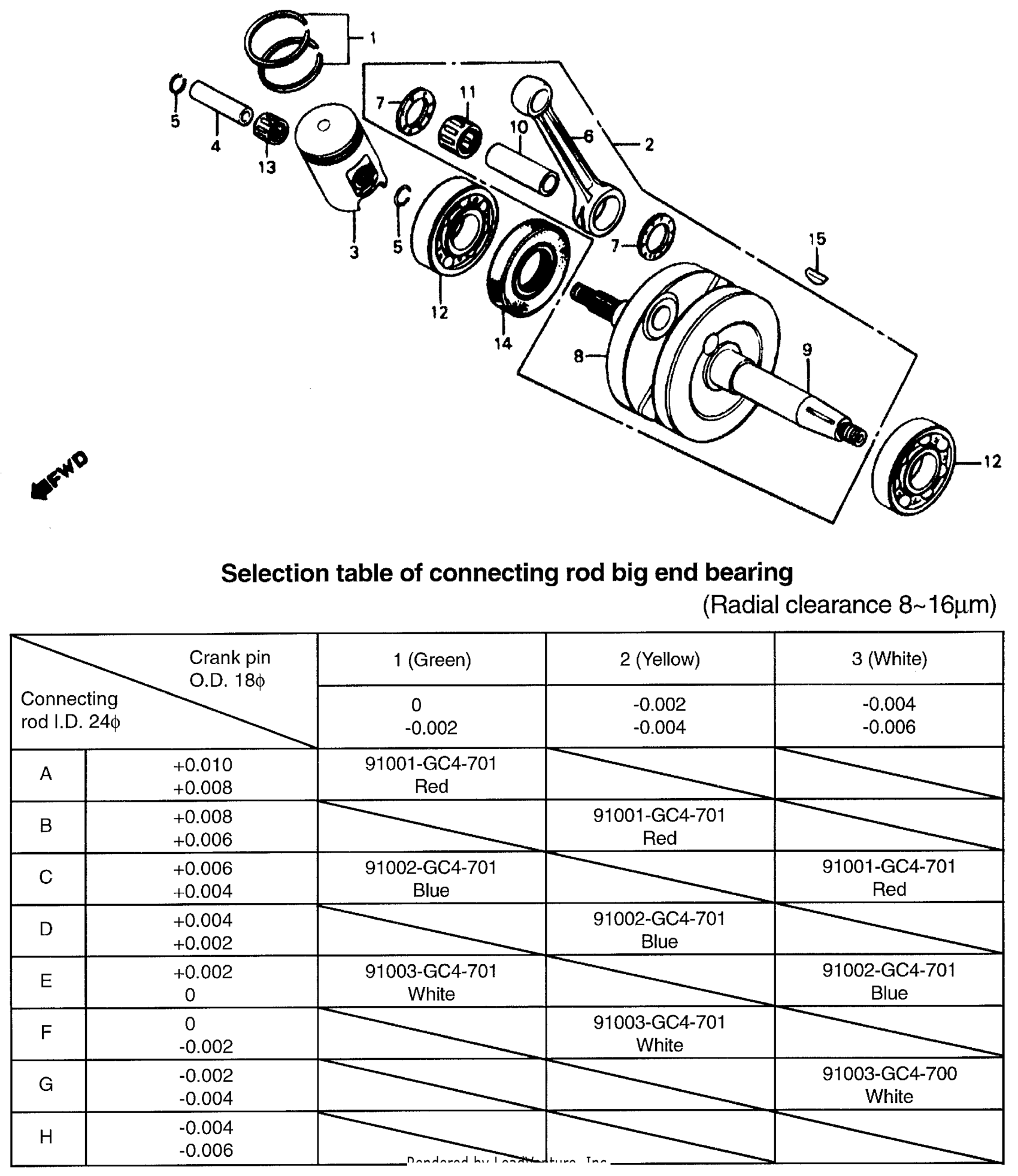

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) This part replaces 130A1-GF5-003.

130A1-GF5-671

Unavailable

1

RING SET, PISTON (STD) This part replaces 130A1-GF5-004.

130A1-GF5-671

Unavailable

1

RING SET, PISTON (STD)

130A1-GF5-671

Unavailable

1

RING SET, PISTON (STD) This part replaces 130A1-GF5-672.

130A1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 130B1-GF5-003.

130B1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 130B1-GF5-004.

130B1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

130B1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 130B1-GF5-672.

130B1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 130C1-GF5-003.

130C1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 130C1-GF5-004.

130C1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

130C1-GF5-671

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 130C1-GF5-672.

130C1-GF5-671

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13000-GF5-000

Unavailable

3

PISTON This part replaces 13101-GF5-670.

13101-GF5-740

Unavailable

3

PISTON

13101-GF5-740

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-GF5-670.

13102-GF5-740

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-GF5-740

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-GF5-670.

13103-GF5-740

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-GF5-740

Unavailable

4

PIN, PISTON This part replaces 13111-166-000.

13111-GZ0-000

$13.23

5

CLIP, PISTON PIN (12MM)

13115-156-000

$2.92

6

ROD, CONNECTING

13201-GC4-700

Unavailable

7

WASHER, THRUST (18X23X1.6)

13202-GC4-700

Unavailable

8

CRANKSHAFT, R.

13311-GF5-300

Unavailable

9

CRANKSHAFT, L.

13321-GF5-300

Unavailable

10

PIN, CRANK

13381-GE3-610

Unavailable

11

BEARING, CONNECTING ROD BIG END

91001-GC4-701

Unavailable

11

BEARING, CONNECTING ROD BIG END

91002-GC4-701

Unavailable

11

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE)

91003-GC4-701

Unavailable

12

BEARING, RADIAL BALL (6222) This part replaces 91005-166-013.

91005-166-023

Unavailable

12

BEARING, RADIAL BALL (6222)

91005-166-023

Unavailable

13

BEARING, CONNECTING ROD SMALL END (TOMUSON)

91102-GC8-004

$14.67

13

BEARING, CONNECTING ROD SMALL END (TOMUSON) This part replaces 91102-156-004.

91102-GC8-004

$14.67

14

OIL SEAL (22X40X8) This part replaces 91206-GC4-710.

91206-GC4-711

$8.96

14

OIL SEAL (22X40X8)

91206-GC4-711

$8.96

14

OIL SEAL (22X40X8) This part replaces 91206-GE2-000.

91206-GC4-711

$8.96

14

OIL SEAL (22X40X8) This part replaces 91206-GE2-003.

91206-GC4-711

$8.96

15

KEY, WOODRUFF (25X14)

94401-25140

$1.75
