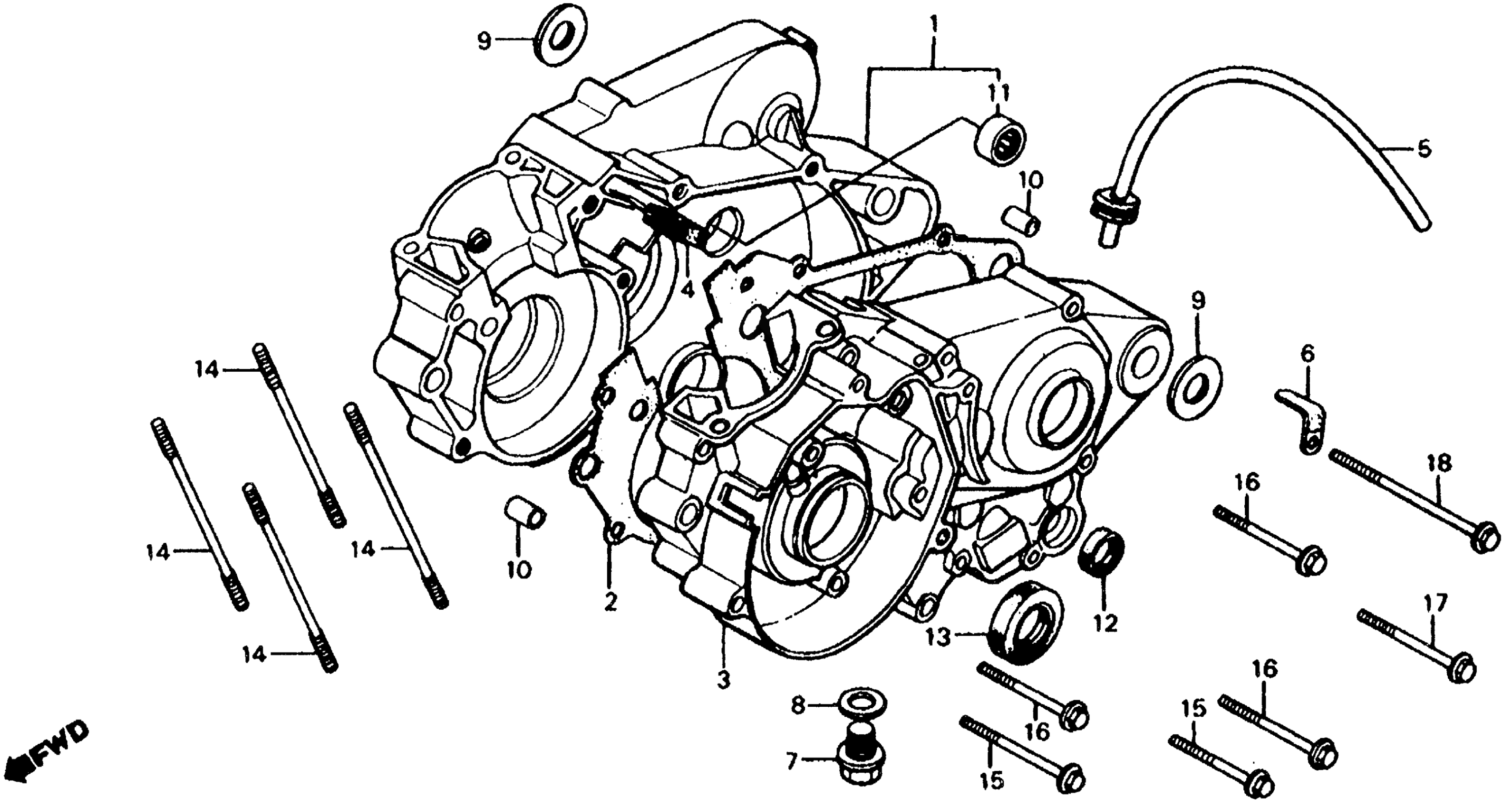

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-GF5-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GF5-000.

11191-GF5-306

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-GF5-000

Unavailable

4

GROMMET, BREATHER

11206-GC4-700

$2.87

5

TUBE, BREATHER

11211-GC4-701

$8.40

6

CLAMP, CABLE

32111-323-000

$3.71

7

BOLT, SPECIAL (12MM) This part replaces 90015-KA3-710.

90015-KA3-711

$6.04

7

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.04

8

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.12

8

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.67

8

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

9

WASHER, PLAIN (12MM)

90402-KY4-900

Unavailable

9

WASHER, PLAIN (12MM) This part replaces 90412-GF5-000.

90402-KY4-900

Unavailable

10

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

11

BEARING, NEEDLE (15MM)

91106-383-003

$29.20

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-003.

91202-444-023

$3.52

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-005.

91202-444-023

$3.52

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.52

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.52

12

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.52

13

OIL SEAL (20X32X7) (NOK)

91205-166-004

$15.61

14

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.06

14

BOLT, STUD (8X28)

92900-08028-0B

$2.06

15

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

15

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

16

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.48

16

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

17

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$1.97

17

BOLT, FLANGE (6X60)

96001-06060-00

$1.97

18

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.78

18

BOLT, FLANGE (6X70)

96001-06070-00

$1.78
