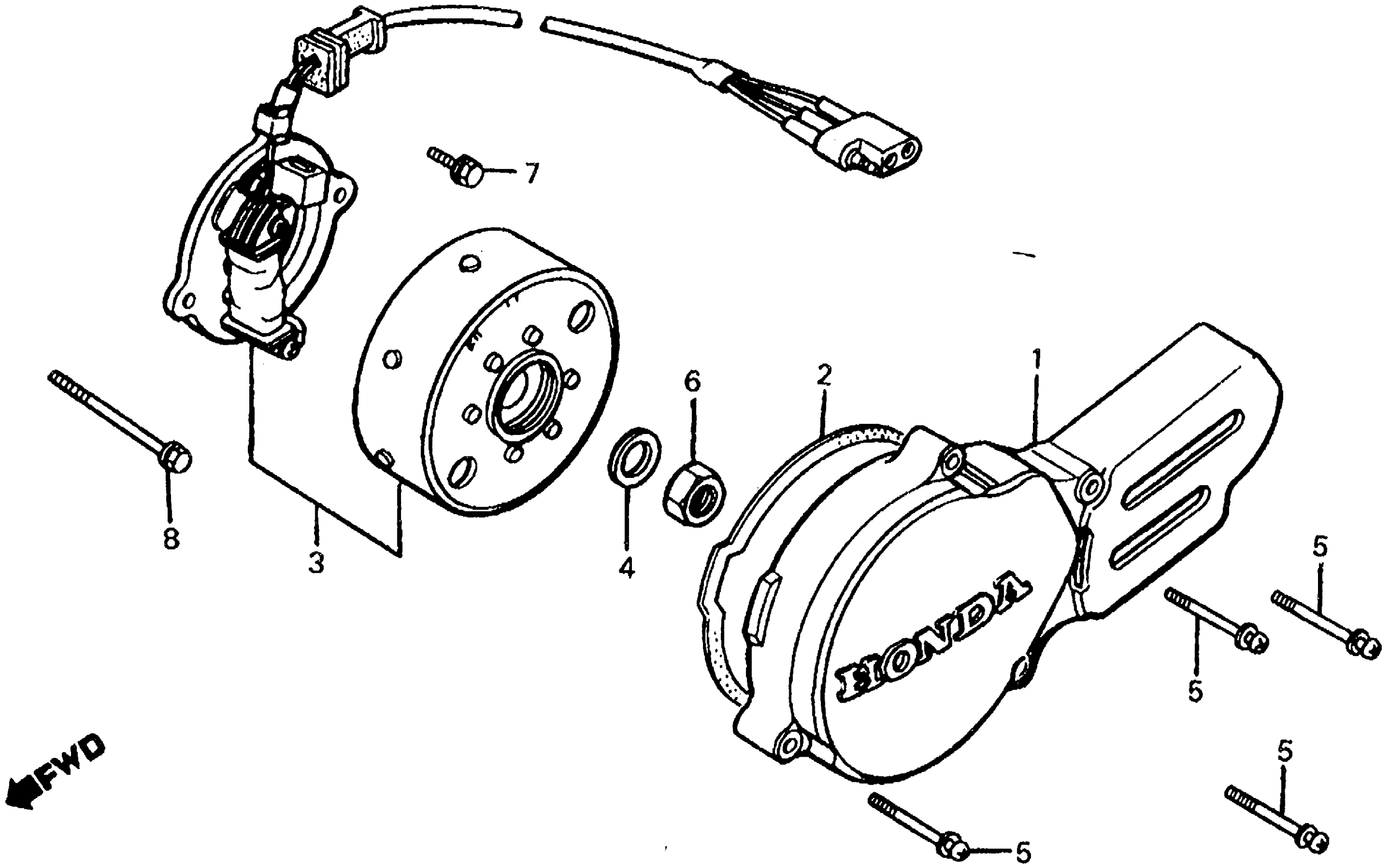

Honda CR60RA (83) MOTORCYCLE, JPN, VIN# JH2DE010-DK000012 TO JH2DE010-DK004469 ALTERNATOR Diagram

#

Description

Price

1

COVER ASSY., L. CRANKCASE This part replaces 11340-GC4-700.

11340-GC4-710

Unavailable

1

COVER ASSY., L. CRANKCASE

11340-GC4-710

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-GF5-003

Unavailable

4

WASHER, PLAIN (12MM) This part replaces 90441-166-000.

90441-KR3-000

$3.52

5

SCREW-WASHER (6X35)

93891-06035-00

$0.78

6

NUT, HEX. (12MM)

94001-12200-0S

$0.88

7

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

7

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

8

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.48

8

BOLT, FLANGE (6X55)

96001-06055-00

$1.48
