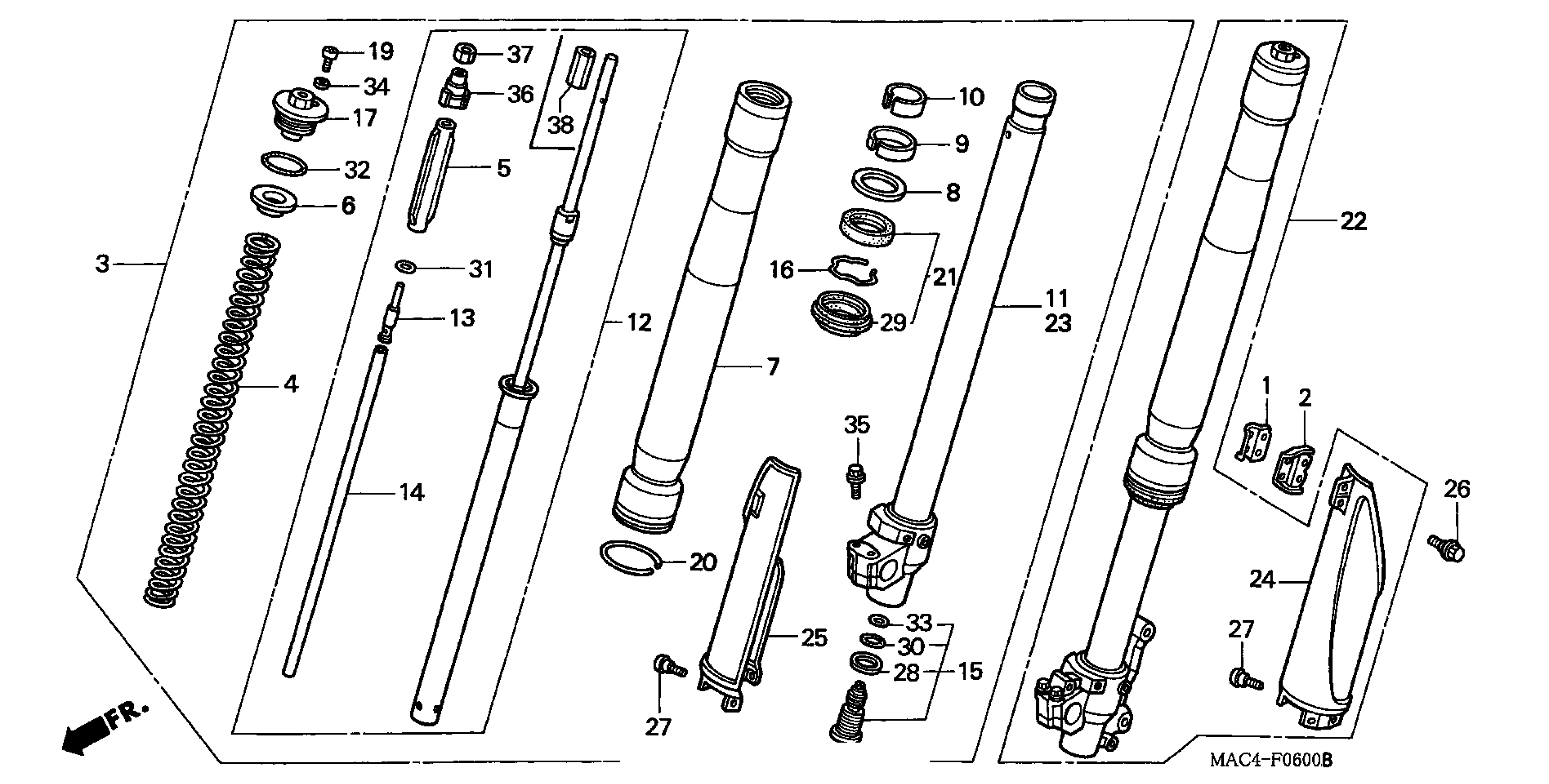

Honda CR500RA (99) MOTORCYCLE, JPN, VIN# JH2PE023-XM800001 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. *TNATURAL* (NATURAL) (NOT AVAILABLE)

51400-MAC-781ZA

Unavailable

4

SPRING, FR. FORK (3.80N/MM,0.39KGF/MM) (KAYABA) | (Optional).

51401-KZ4-J01

Unavailable

4

SPRING, FR. FORK (4.0N/MM,0.41KGF/MM)

51401-MAC-781

Unavailable

4

SPRING, FR. FORK (3.80N/MM,0.39KGF/MM) (KAYABA) | (Optional). This part replaces 51402-MAC-741.

51401-KZ4-J01

Unavailable

4

SPRING, FR. FORK (4.20N/MM,0.43KGF/MM) (NOT AVAILABLE) | (Optional).

51403-MAC-741

Unavailable

5

GUIDE, SPRING

51404-MAC-781

Unavailable

6

SEAT, SPRING

51408-MAC-741

Unavailable

7

TUBE (OUTER)

51410-MAC-741

Unavailable

8

RING, BACK-UP

51412-MAC-741

Unavailable

9

BUSH, GUIDE

51414-MAC-741

$25.92

10

BUSH, SLIDER

51415-MAC-741

Unavailable

11

PIPE, R. SLIDE

51425-KZ4-B01

Unavailable

12

DAMPER, FR.

51430-MAC-781

Unavailable

13

PLUNGER (NOT AVAILABLE)

51436-MAC-781

Unavailable

14

COLLAR, REBOUND NEEDLE

51437-MAC-741

Unavailable

15

BOLT, CENTER

51441-MAC-741

Unavailable

16

RING, OIL SEAL STOP

51447-MAC-741

$6.95

17

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MAC-741

Unavailable

19

BOLT, PLUG

51456-KZ4-711

Unavailable

20

RING, WEAR

51476-KZ4-711

$7.62

21

SEAL SET, FR. FORK This part replaces 51490-MAC-741.

51490-KZ4-J21

$23.92

22

FORK ASSY., L. FR. *TNATURAL* (NATURAL) (NOT AVAILABLE)

51500-MAC-781ZA

Unavailable

23

PIPE, L. SLIDE

51525-KZ4-B01

Unavailable

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL) This part replaces 51610-MAC-780ZA.

51610-MAC-781ZA

Unavailable

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51610-MAC-781ZA

Unavailable

25

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL) This part replaces 51620-MAC-780ZA.

51620-MAC-781ZA

Unavailable

25

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51620-MAC-781ZA

Unavailable

26

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

27

BOLT, PROTECTOR

90113-MAC-780

$3.53

28

WASHER, SPECIAL

90544-MAC-741

Unavailable

29

DUST SEAL This part replaces 91254-MAC-741.

91254-KZ4-J21

$8.20

30

O-RING (24.7X2.4)

91256-MAC-741

Unavailable

31

O-RING (12.3X2.4)

91257-KZ4-711

$2.70

32

O-RING (41.7X3.5)

91258-MAC-741

$8.03

33

O-RING (21.9X2.0)

91259-MAC-741

Unavailable

34

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

35

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

35

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28

36

COLLAR (NOT AVAILABLE)

51405-MAC-741

$8.92

37

NUT, LOCK

51451-KZ4-711

Unavailable
