Description

Price

1

NUT, MUFFLER SPRING

18354-KS6-000

$4.98

2

RADIATOR, R. This part replaces 19010-ML3-P00.

19010-MAC-960

Unavailable

2

RADIATOR, R. This part replaces 19010-MAC-670.

19010-MAC-960

Unavailable

3

RADIATOR, L.

19015-ML3-790

Unavailable

4

GRILLE, RADIATOR

19033-ML3-790

$69.97

5

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$50.26

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

7

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

8

HOSE, WATER (A)

19062-ML3-910

Unavailable

9

HOSE, WATER (B)

19063-ML3-910

Unavailable

10

HOSE C, WATER

19064-ML3-680

Unavailable

11

HOSE E, WATER

19067-ML3-680

Unavailable

12

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

13

CLAMP, WATER HOSE

19505-ML3-770

$7.08

14

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

15

BULK HOSE, FUEL (7.5X8000) (7.3X165)

95001-75008-60M

$103.82

16

CLIP, TUBE (A13)

95002-01130

$4.17

17

CLIP, TUBE (B8)

95002-02080

$1.80

18

BULK HOSE, VINYL (6X9X1000) (6X9X670)

95003-14001-10M

$3.30

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

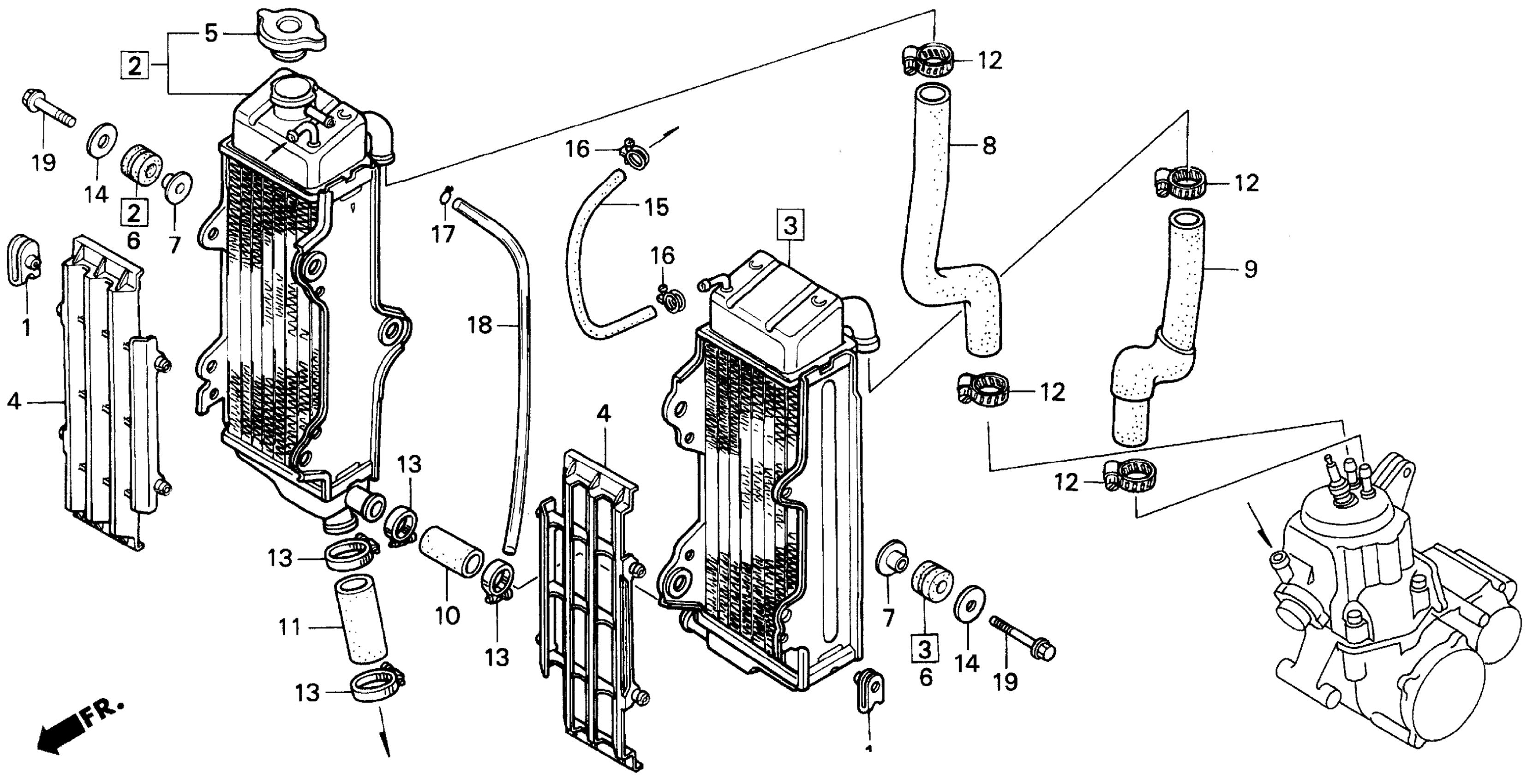

Honda CR500RA (97) MOTORCYCLE, JPN, VIN# JH2PE020-VM600001 RADIATOR Diagram

NUT, MUFFLER SPRING

RADIATOR, R. This part replaces 19010-ML3-P00.

RADIATOR, R. This part replaces 19010-MAC-670.

RADIATOR, L.

GRILLE, RADIATOR

CAP, RADIATOR This part replaces 19045-GBF-770.

RUBBER, RADIATOR MOUNTING

COLLAR, RADIATOR MOUNTING

HOSE, WATER (A)

HOSE, WATER (B)

HOSE C, WATER

HOSE E, WATER

CLAMP, WATER HOSE (25MM)

CLAMP, WATER HOSE

WASHER, RADIATOR MOUNTING

BULK HOSE, FUEL (7.5X8000) (7.3X165)

CLIP, TUBE (A13)

CLIP, TUBE (B8)

BULK HOSE, VINYL (6X9X1000) (6X9X670)

BOLT, FLANGE (6X22)
