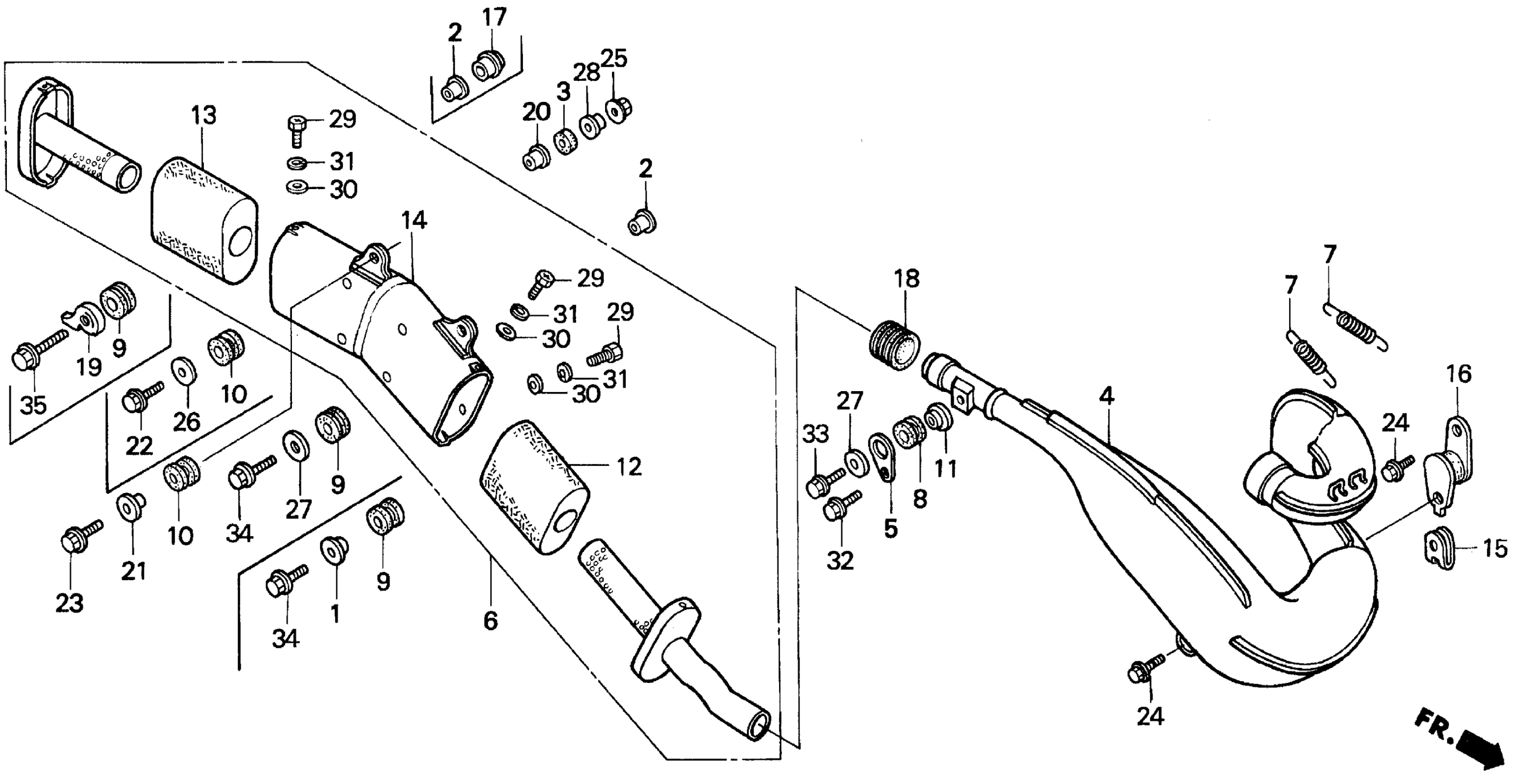

Honda CR500RA (97) MOTORCYCLE, JPN, VIN# JH2PE020-VM600001 MUFFLER Diagram

#

Description
Price

2

COLLAR, MUFFLER SETTING

17509-ML3-790

Unavailable

4

MUFFLER

18300-MAC-680

Unavailable

5

STAY, RR. CHAMBER

18325-KS6-000

$22.52

6

MUFFLER

18330-MAC-970

Unavailable

6

MUFFLER This part replaces 18330-ML3-600.

18330-MAC-970

Unavailable

7

SPRING, EX. PIPE

18332-KZ3-710

$7.61

8

RUBBER, MUFFLER

18334-KA3-830

$3.89

9

RUBBER, MUFFLER

18334-ML3-680

$3.87

10

RUBBER, MUFFLER (A)

18334-ML3-760

$4.17

11

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.60

12

WOOL, GLASS

18340-ML3-790

Unavailable

13

WOOL, GLASS

18341-ML3-790

Unavailable

14

BODY, MUFFLER

18350-ML3-600

Unavailable

15

NUT, MUFFLER SPRING

18354-KS6-000

$4.98

16

STAY, CHAMBER

18355-KS6-000

$23.32

18

RUBBER, MUFFLER CONNECTING PIPE

18365-KA5-740

$24.55

21

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

23

BOLT, FLANGE (6X30)

90003-KN7-671

$3.05

24

BOLT-WASHER (6X16)

90102-KS6-000

$9.16

27

WASHER, FENDER SETTING

90506-430-000

$2.92

28

WASHER (6X20)

90512-300-000

$3.08

29

BOLT, RECESSED (5X10)

92301-05010-0A

$1.49

30

WASHER, PLAIN (5MM)

94101-05000

$1.49

31

WASHER, SPRING (5MM)

94111-05000

$1.49

32

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

33

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

34

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
