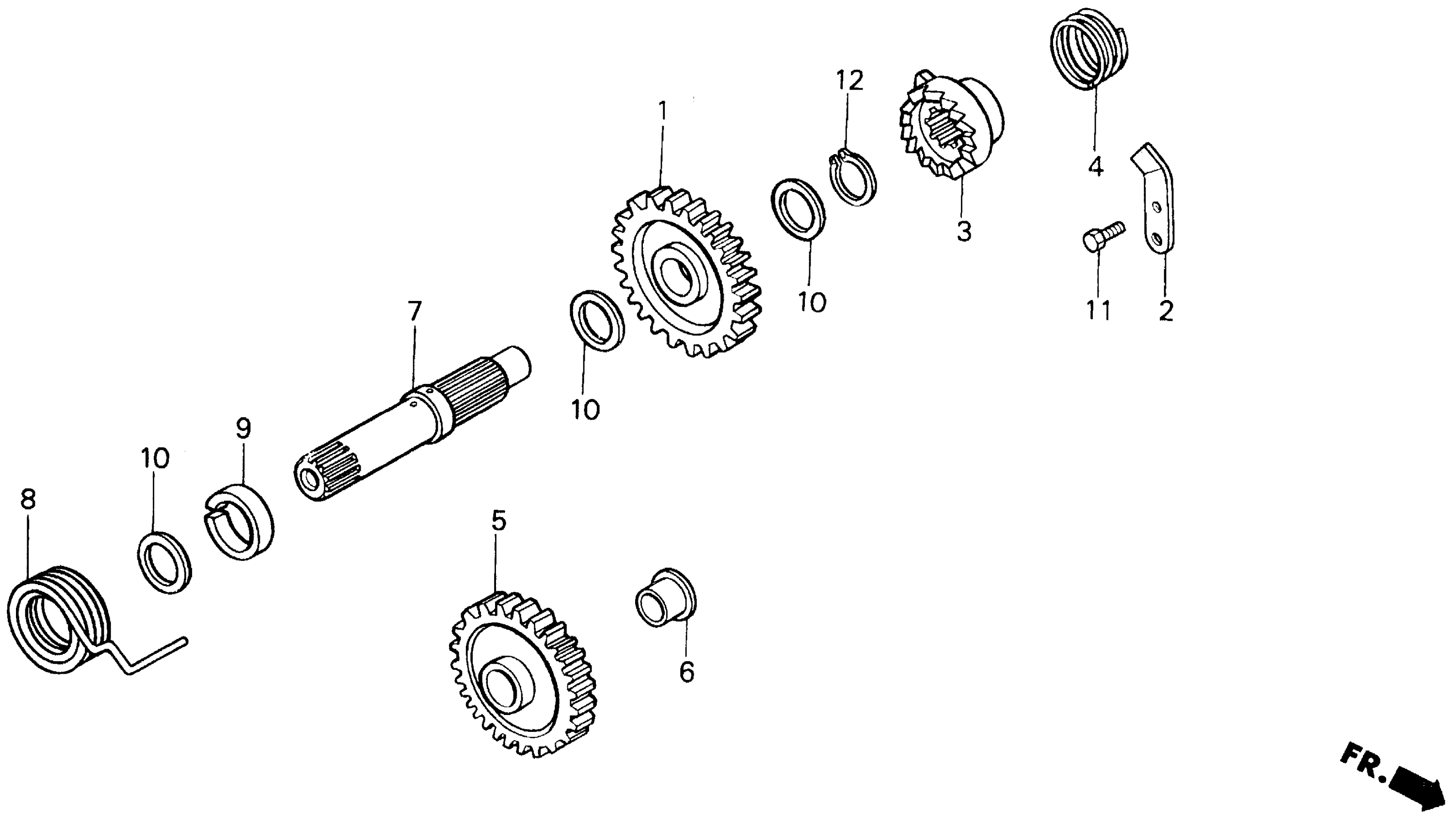

Honda CR500RA (97) MOTORCYCLE, JPN, VIN# JH2PE020-VM600001 KICK STARTER SPINDLE Diagram

PINION, ONLY KICK (27T)

28211-ML3-780

Unavailable

PLATE, KICK STOPPER This part replaces 28215-KS7-830.

28215-MEB-670

$5.23

RATCHET, KICK STARTER

28221-ML3-780

Unavailable

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.74

GEAR, KICK IDLE (30T)

28231-ML3-000

Unavailable

COLLAR, KICK STARTER IDLE GEAR

28232-KA4-740

$12.56

SPINDLE, KICK STARTER

28251-KA4-740

Unavailable

SPRING, KICK RETURN

28261-KA4-741

$10.31

COLLAR, KICK SPRING

28282-KA4-740

Unavailable

WASHER, THRUST (27X20X1.0)

90554-728-940

$5.80

BOLT, HEX. (6X16)

93301-06016-0A

$1.35

CIRCLIP (OUTER) (19MM)

94510-19000

$1.13
