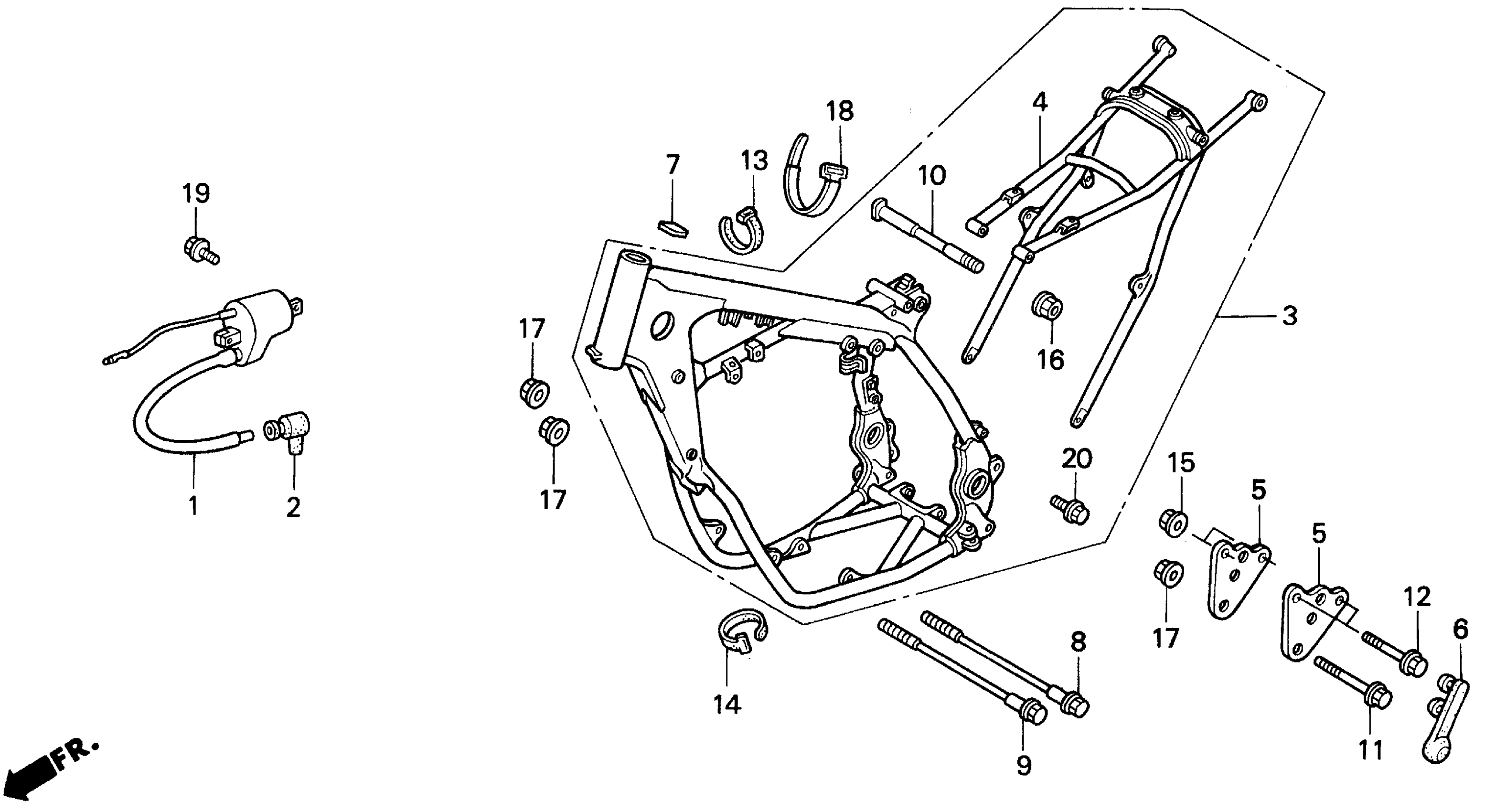

Honda CR500RA (97) MOTORCYCLE, JPN, VIN# JH2PE020-VM600001 FRAME 92-97 Diagram

#

Description
Price

1

COIL, IGNITION

30500-KZ3-701

$59.02

2

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

3

FRAME *NH333* (CHALK WHITE)

50100-MAC-680ZA

Unavailable

4

FRAME, RR. *NH333* (CHALK WHITE)

50140-KZ3-700ZC

Unavailable

5

BRACKET, HEAD HANGER

50401-ML3-680

Unavailable

6

RUBBER, BOLT CAP

50405-ML3-770

Unavailable

7

MARK, WING

87122-KW3-770

$8.68

8

BOLT, FLANGE (10X108)

90018-ML3-910

Unavailable

9

BOLT, FLANGE (10X125)

90115-ML3-910

$14.86

10

BOLT, JOINT (8X137)

90118-KS6-000

Unavailable

11

BOLT, FLANGE (10X53) This part replaces 90131-ML3-910.

90112-GK4-000

$4.45

12

BOLT, FLANGE (8X51)

90135-KZ3-700

$5.30

13

BAND, WIRE

90651-KV6-003

$2.92

14

BAND, WIRE

90652-KT1-771

$4.48

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

NUT, FLANGE (8MM)

94050-08080

$1.49

17

NUT, FLANGE (10MM)

94050-10000

$1.59

18

BAND, WIRE

90651-KV6-003

$2.92

19

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

20

BOLT, FLANGE (8X22)

96300-08022-00

$2.16

20

BOLT, FLANGE (8X22) This part replaces 96400-08022-00.

96300-08022-00

$2.16
