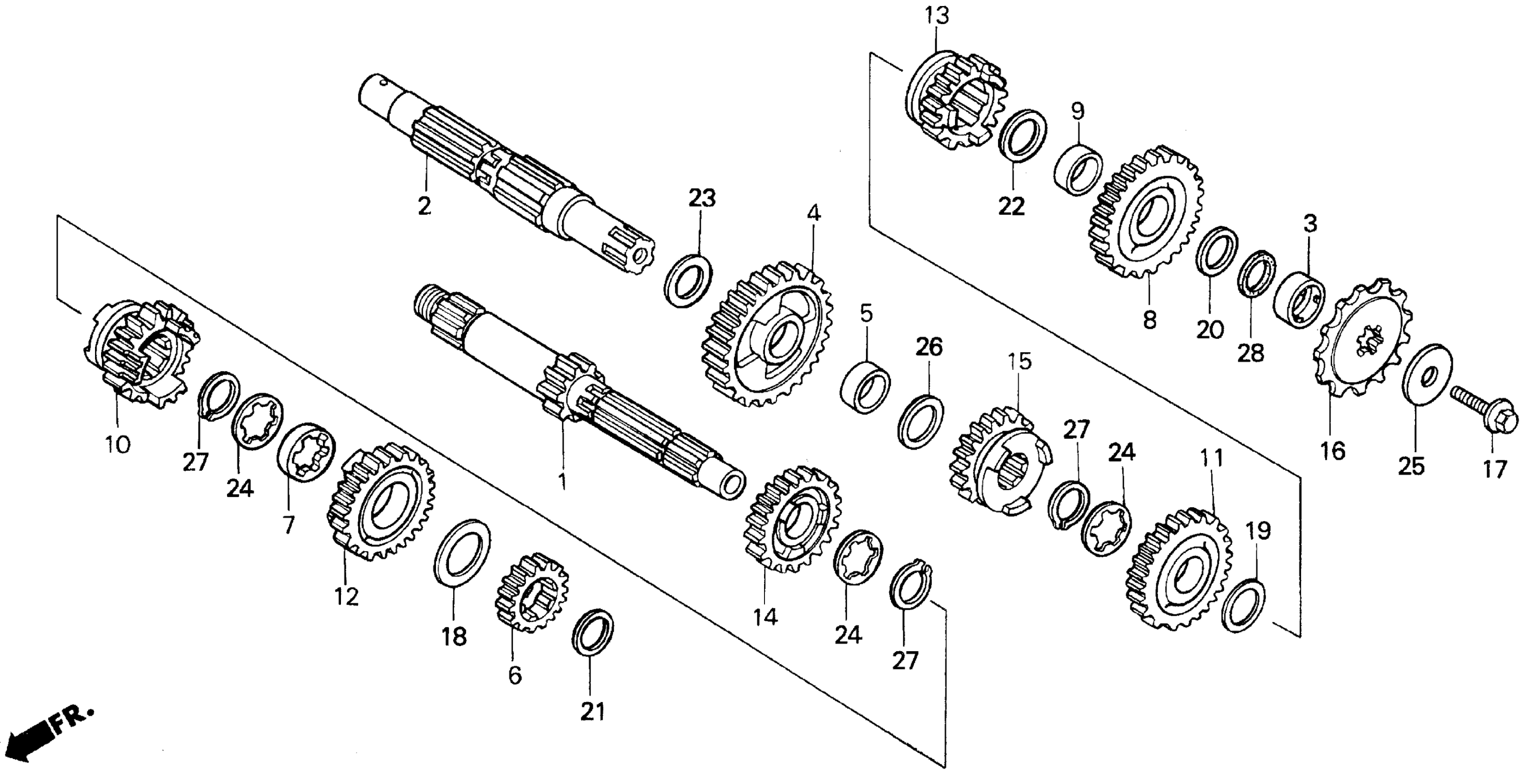

Honda CR500RA (94) MOTORCYCLE, JPN, VIN# JH2PE020-RM300005 TO JH2PE020-RM301209 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT

23210-ML3-000

Unavailable

2

COUNTERSHAFT

23221-ML3-871

Unavailable

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$14.95

3

COLLAR, COUNTERSHAFT This part replaces 23225-ML3-680.

23225-MEN-730

$14.95

4

GEAR, COUNTERSHAFT LOW (28T)

23411-ML3-870

Unavailable

5

COLLAR, COUNTERSHAFT LOW GEAR

23412-KA5-680

Unavailable

6

GEAR, MAINSHAFT SECOND (18T)

23421-ML3-000

Unavailable

7

COLLAR, MAINSHAFT SECOND GEAR

23422-KA5-000

Unavailable

8

GEAR, COUNTERSHAFT SECOND (25T)

23431-ML3-870

Unavailable

9

COLLAR, COUNTERSHAFT SECOND GEAR

23432-ML3-870

$18.66

10

GEAR, MAINSHAFT THIRD (20T)

23441-ML3-000

Unavailable

11

GEAR, COUNTERSHAFT THIRD (23T)

23451-ML3-000

Unavailable

12

GEAR, MAINSHAFT FOURTH

23461-ML3-670

Unavailable

13

GEAR, COUNTERSHAFT FOURTH

23471-ML3-670

Unavailable

14

GEAR, MAINSHAFT FIFTH

23481-ML3-670

Unavailable

15

GEAR, COUNTERSHAFT FIFTH

23491-ML3-670

Unavailable

16

SPROCKET, DRIVE (14T) This part replaces 23802-ML3-871.

23802-HP1-670

$35.83

17

BOLT, UBS (8X33)

90112-413-000

$3.85

18

WASHER, THRUST (25MM)

90421-961-000

$5.58

19

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

20

WASHER, THRUST (25.1X36X1.5)

90445-ML3-871

$5.12

21

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

22

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.85

23

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

24

WASHER, SPLINE (25MM)

90463-430-000

$5.89

25

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

26

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

27

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

28

O-RING (23.75MM) (ARAI)

91201-ML3-873

$3.67
