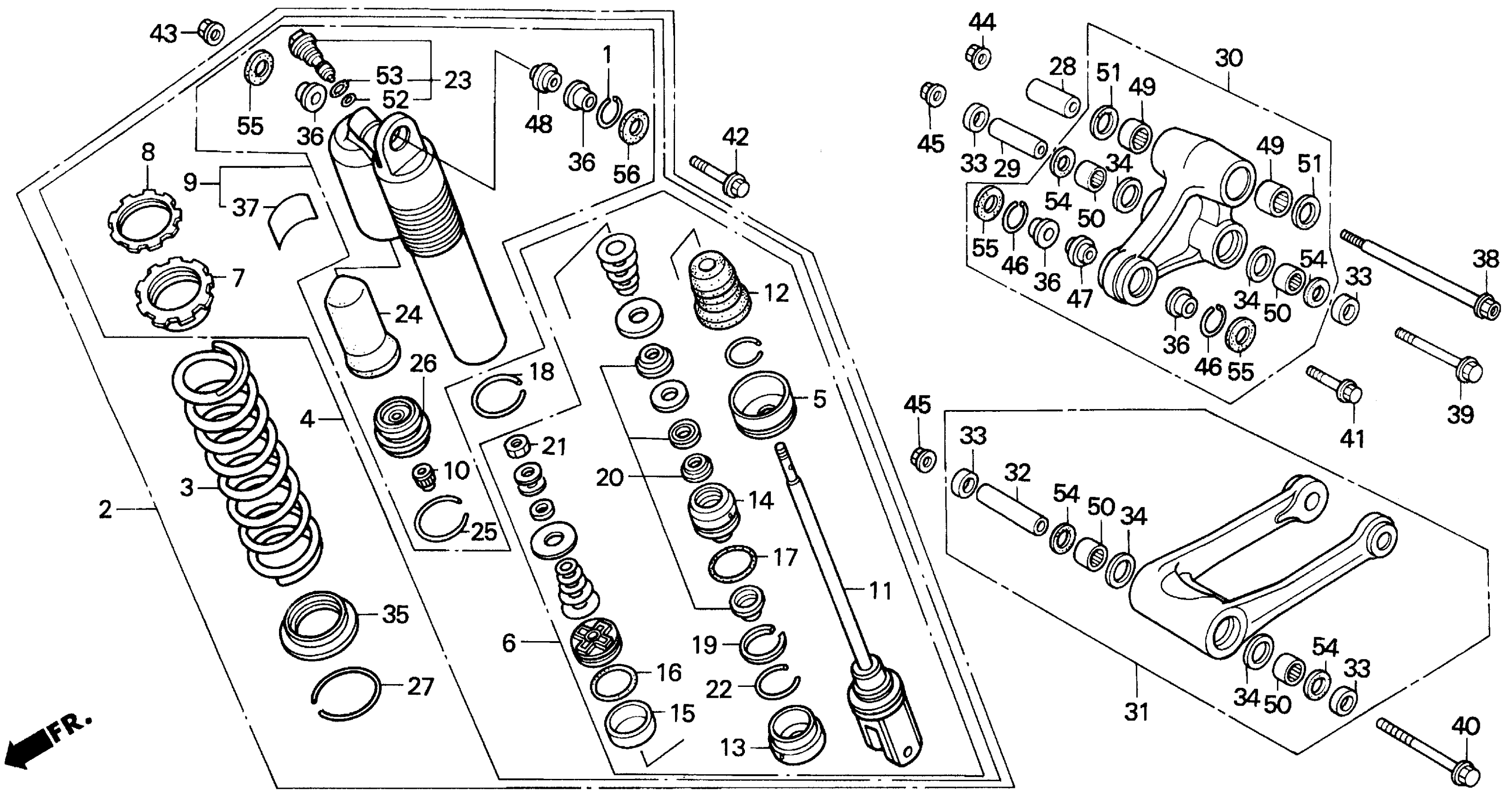

Honda CR500RA (94) MOTORCYCLE, JPN, VIN# JH2PE020-RM300005 TO JH2PE020-RM301209 REAR SHOCK ABSORBER 94 Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.97

2

SHOCK ABSORBER ASSY., RR.

52400-MAC-671

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.2KG/MM) (SHOWA)

52401-KZ3-701

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.6KG/MM) (GREEN) (SHOWA)

52401-ML3-921

Unavailable

3

SPRING, RR. SHOCK ABSORBER (59.0N/MM,6.0KGF/MM) (SHOWA)

52403-ML3-831

Unavailable

4

DAMPER, RR.

52410-MAC-671

Unavailable

5

STOPPER, SPRING SEAT

52419-KZ3-003

Unavailable

6

ROD, PISTON

52421-MAC-671

Unavailable

7

ADJUSTER, SPRING

52422-KS7-701

$33.79

8

NUT, ADJUSTER

52423-KS7-701

$26.16

9

CASE, SHOCK ABSORBER

52425-MAC-671

Unavailable

10

CAP, AIR VALVE

52425-381-771

$5.05

11

ROD

52426-MAC-671

Unavailable

12

RUBBER, STOPPER (SHOWA)

52427-KZ3-861

Unavailable

13

PLATE, END (SHOWA)

52428-KZ3-861

Unavailable

14

CASE, ROD GUIDE

52429-KZ3-861

Unavailable

15

RING, PISTON (SHOWA)

52431-KZ3-861

$10.43

16

O-RING (39.5X2.0)

52432-KZ3-861

$3.15

17

O-RING (39.7X3.5)

52434-KZ3-861

$6.15

18

RING, STOPPER (SHOWA)

52435-KZ3-861

Unavailable

19

RING B, STOPPER (SHOWA)

52436-KZ3-861

Unavailable

20

OIL SEAL SET

52436-MN1-680

$46.95

21

NUT, HEX. (12MM)

52438-KA4-741

$2.92

22

STOPPER (SHOWA)

52439-KZ3-861

Unavailable

23

BOLT, PLUG

52440-MAC-671

Unavailable

24

BLADDER (SHOWA)

52451-KS7-831

$17.93

25

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

26

CAP, CHAMBER (SHOWA)

52453-KS7-831

Unavailable

27

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

28

COLLAR, CUSHION ARM PIVOT

52463-ML3-600

Unavailable

29

COLLAR, CUSHION ARM

52464-KZ3-730

Unavailable

30

ARM SET, SHOCK ABSORBER

52465-ML3-305

Unavailable

31

ROD ASSY., SHOCK CONNECTING

52470-KZ3-730

Unavailable

32

COLLAR, CONNECTING ROD

52473-KZ3-730

$13.72

33

COLLAR, CONNECTING ROD SIDE

52475-KZ3-730

Unavailable

34

WASHER, THRUST

52476-KZ3-730

Unavailable

35

SEAT, SPRING

52486-KZ3-003

Unavailable

36

COLLAR, SHOCK PIVOT

52486-ML3-790

Unavailable

37

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

38

BOLT, CUSHION ARM PIVOT (15X202)

90128-ML3-600

Unavailable

39

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

40

BOLT, FLANGE (12X118.5)

90130-KZ3-700

Unavailable

41

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

42

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

43

NUT, AXLE (10MM)

90304-GA6-003

$2.89

44

NUT, U (14MM)

90305-GE8-003

$3.86

44

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

45

NUT, FLANGE (12MM)

90306-181-761

$6.08

46

RING, SNAP (26MM)

90613-PF4-300

Unavailable

47

BEARING, SPHERICAL (10) This part replaces 91074-KZ3-731.

91074-KZ4-901

Unavailable

47

BEARING, SPHERICAL (10)

91074-KZ4-901

Unavailable

48

BEARING, SPHERICAL (10)

91075-MAC-671

Unavailable

49

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

50

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

51

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

52

O-RING (15.5X1.5)

91256-GC5-003

$1.51

53

O-RING (21X1.9)

91257-KZ3-003

$2.75

54

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

55

DUST SEAL, SHOCK

91351-KZ3-731

$4.87

56

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.78
