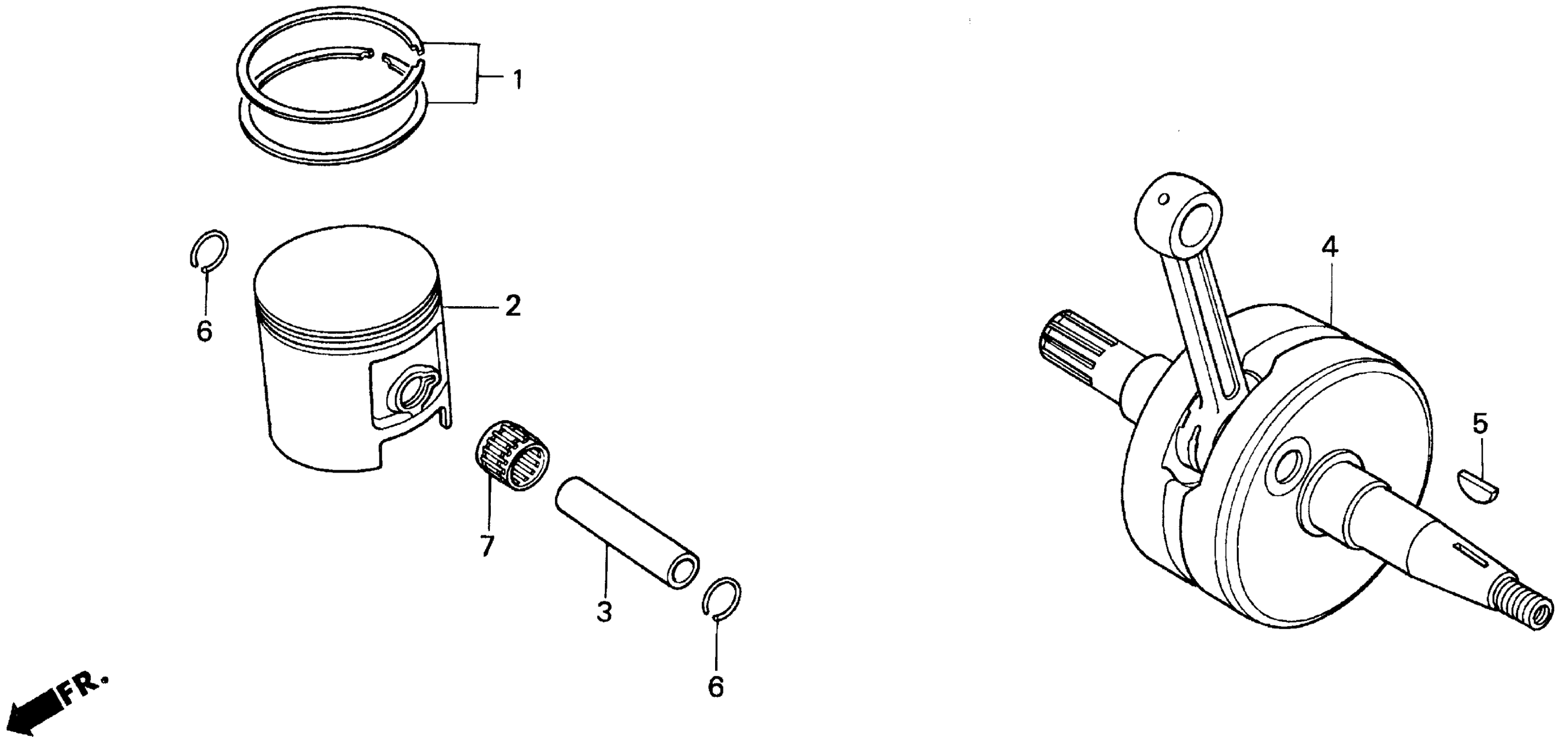

Honda CR500RA (94) MOTORCYCLE, JPN, VIN# JH2PE020-RM300005 TO JH2PE020-RM301209 CRANKSHAFT Diagram

#

Description

Price

1

RING SET, PISTON (STD)

13011-ML3-305

Unavailable

1

RING SET, PISTON (OS 0.25)

13012-ML3-305

$75.95

1

RING SET, PISTON (OS 0.50)

13013-ML3-305

Unavailable

2

PISTON This part replaces 13101-ML3-681.

13101-MAC-680

Unavailable

2

PISTON (OS 0.25) This part replaces 13102-ML3-681.

13102-MAC-680

$157.69

2

PISTON (OS 0.50) This part replaces 13103-ML3-681.

13103-MAC-680

Unavailable

2

PISTON

13101-MAC-680

Unavailable

2

PISTON (OS 0.25)

13102-MAC-680

$157.69

2

PISTON (OS 0.50)

13103-MAC-680

Unavailable

3

PIN, PISTON

13111-ML3-680

Unavailable

4

CRANKSHAFT This part replaces 13300-ML3-911.

13300-MAC-680

Unavailable

4

CRANKSHAFT

13300-MAC-680

Unavailable

5

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

6

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

7

BEARING, CONNECTING ROD SMALL END

91009-ML3-670

$22.51
