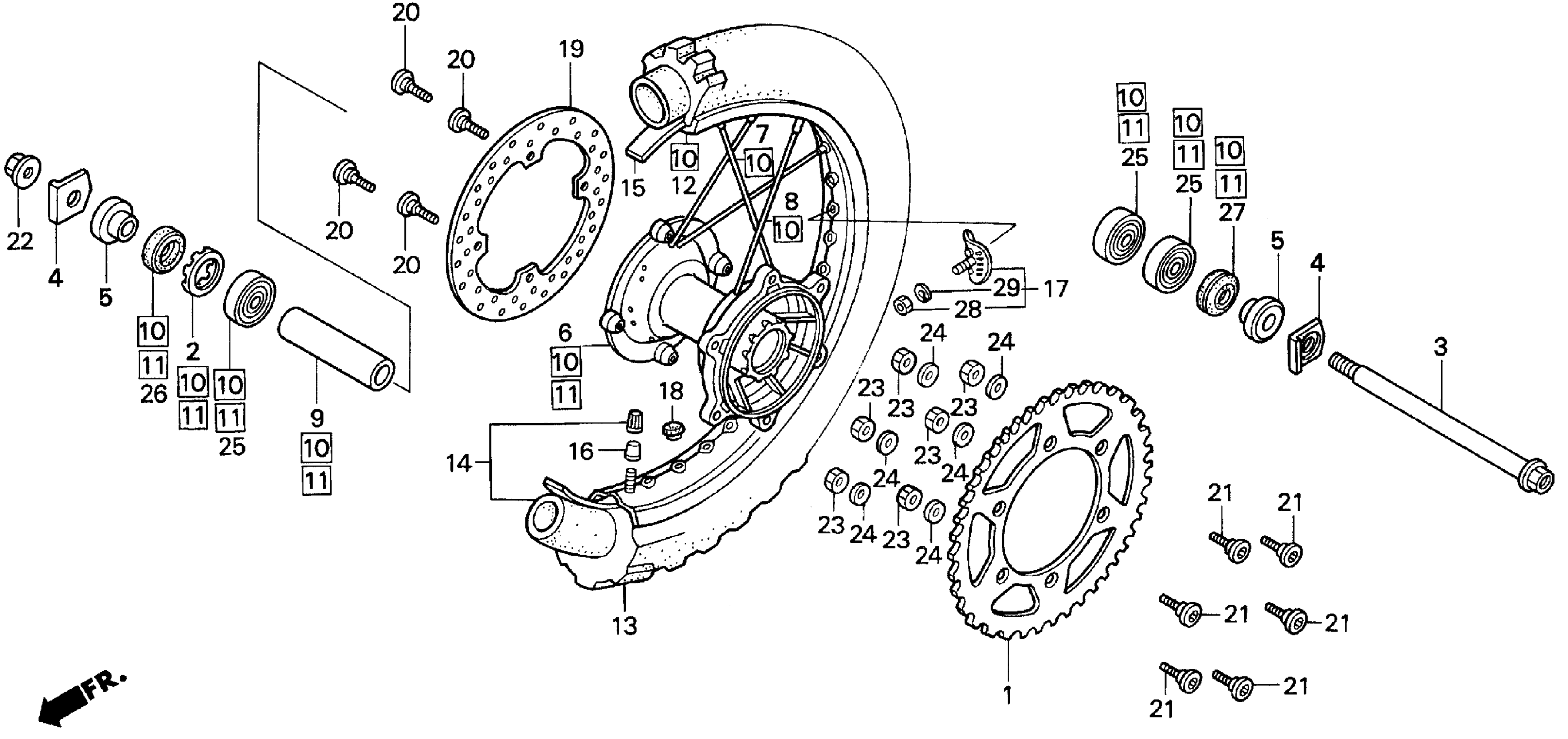

Honda CR500RA (93) MOTORCYCLE, JPN, VIN# JH2PE020-PM200005 TO JH2PE020-PM201026 REAR WHEEL 92-97 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KZ4-861.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (47T)

41202-ML3-811

$136.16

1

SPROCKET, FINAL DRIVEN (49T) (STEEL)

41204-ML3-505

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) (STEEL) This part replaces 41204-ML3-810.

41204-ML3-505

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) This part replaces 41201-ML3-791.

41201-KZ3-J40

$122.82

2

RETAINER, RR. WHEEL BEARING

41231-KZ4-000

$27.90

3

AXLE, RR. WHEEL

42301-KS6-700

Unavailable

4

COLLAR, RR. AXLE

42306-KS7-830

Unavailable

5

COLLAR, RR. WHEEL SIDE

42311-KS6-830

$29.55

6

HUB, RR. WHEEL

42601-ML3-790

Unavailable

7

SPOKE SET A, RR.

42610-KZ4-405

$5.16

8

SPOKE SET B, RR.

42611-KZ4-405

Unavailable

9

COLLAR, RR. DISTANCE

42620-ML3-681

Unavailable

10

WHEEL SUB-ASSY., RR.

42630-ML3-405

Unavailable

12

RIM, RR. WHEEL (18X2.15 EFH)

42701-ML3-791

Unavailable

13

TIRE, RR. (110/100-18) (64M D756) (DUNLOP) This part replaces 42711-ML3-911.

42711-MEY-004

Unavailable

14

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

15

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$6.14

16

CAP, VALVE

42714-KA3-710

$10.46

17

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

18

CAP, RIM HOLE

42717-329-000

$4.21

19

DISK, RR. BRAKE

43351-ML3-790

Unavailable

20

BOLT, DISK (8X22)

90105-MK5-010

$4.94

21

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

22

NUT, FLANGE (18MM) This part replaces 90305-KS6-003.

90305-MCC-000

$7.10

23

NUT, U (8MM)

90309-ML3-791

$4.35

24

WASHER (8MM)

90465-MC4-000

$2.51

25

BEARING, RADIAL BALL (6004)

91062-KS6-831

$31.72

26

DUST SEAL (28X38X7)

91251-KZ4-003

$10.15

27

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

27

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

27

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

28

NUT, HEX. (8MM)

94001-08000-0S

$1.49

29

WASHER, SPRING (8MM)

94111-08000

$1.49
